Sapphire B650M-E AM5 DDR5 PCIe 4.0 MicroATX Motherboard
Sapphire B650M-E AM5 DDR5 PCIe 4.0 MicroATX Motherboard
Scan code: LN167680 Manufacturer code: 52112-04-40G
£79.99Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : Sapphire B650M-E AM5 DDR5 PCIe 4.0 MicroATX Motherboard
  • Thumbnail 2 : Sapphire B650M-E AM5 DDR5 PCIe 4.0 MicroATX Motherboard
  • Thumbnail 3 : Sapphire B650M-E AM5 DDR5 PCIe 4.0 MicroATX Motherboard
  • Thumbnail 4 : Sapphire B650M-E AM5 DDR5 PCIe 4.0 MicroATX Motherboard

Sapphire B650M-E AM5 DDR5 PCIe 4.0 MicroATX Motherboard

Sapphire B650M-E, AMD B650, AM5, DDR5, PCIe 4.0, 2x M.2, 2.5GbE, USB 3.2 Gen1, mATX
MORE INFO
MORE INFO

Scan code: LN167680 Manufacturer code: 52112-04-40G
£79.99
£5.48 Next day delivery
Item currently awaiting an ETA
Pre Order
Pre order
Pay in 3 interest-free payments of £26.67

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

B650M-E AMD AM5 Micro-ATX Motherboard from Sapphire

B650M-E AMD AM5 Micro-ATX Motherboard from Sapphire

Smart Performance. Solid Foundation. The SAPPHIRE B650M-E is a compact Micro-ATX AM5 motherboard built for modern Ryzen processors, balancing performance, stability, and value. It features a 6+2+1 phase power design with robust VRM, M.2, and PCH cooling to ensure reliable operation under load. With dual-channel DDR5 support up to 96 GB and high overclocked speeds, plus PCIe 5.0 M.2 and PCIe 4.0 x16 expansion, it is well suited for fast storage and powerful graphics. Comprehensive rear I/O, including DisplayPort, HDMI, multiple USB ports, 2.5GbE LAN, and HD audio, rounds out this versatile platform.

AMD® B650Chipset

AM5CPU Socket

Ryzen™ 9000/8000/7000 SeriesProcessors

mATXForm Factor

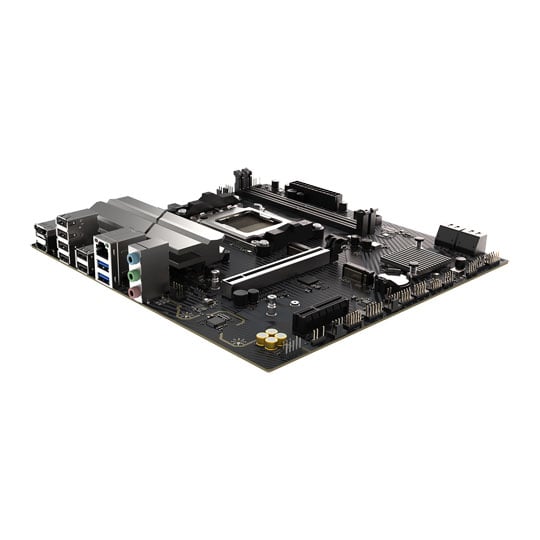

Hero angle of B650M-E motherboard with dark slate background.
Hero angle of B650M-E motherboard, showcasing smart power design.

Smart Power Delivery 6+2+1 (60A) Smart Power Phase Design with Titanium Inductors Delivers clean, stable power to fully unlock the performance potential of Ryzen™ processors.

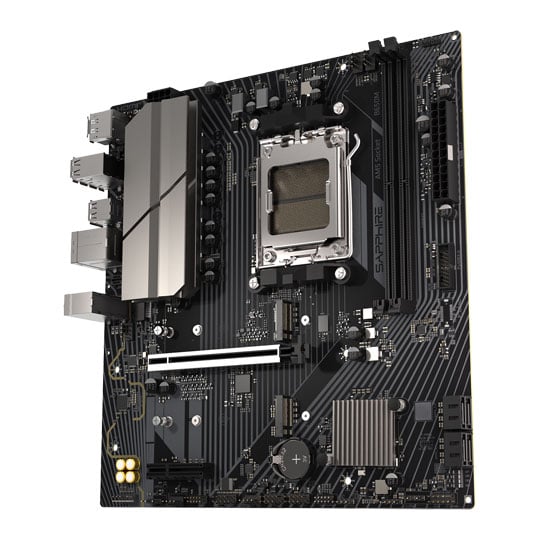

Top down angle of B650M-E motherboard, highlighting PCIe 5.0/4.0 storage.

High-Speed Expansion Adopts future-oriented standard, enabling this motherboard to be bigger, faster and more durable.

Hero angle of B650M-E motherboard, showcasing cooling design.

High-Efficiency Heat Dissipation High-Efficiency Custom Cooling Armour Delivers continuous thermal management to ensure stable, reliable performance for Ryzen™ processors.

Specifications
Core Specifications
Edition B650M-E
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 7600(OC)
Max. Memory Capacity 96GB (2x48GB)
Audio
Audio Realtek ALC897 5.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable RGB LED 5V Connector
  • 1 x Clear CMOS jumper
  • 4 x Diagnostic LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 6 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 235 mm
Note
Additional Information
Scan Code LN167680
Model Number 52112-04-40G
GTIN 4895106296848
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 01204 474747.
