Sapphire A520M-E AM4 DDR4 PCIe 3.0 MicroATX Motherboard

Sapphire A520M-E, AMD A520, AM4, DDR4, PCIe 3.0, 1x M.2, GbE, USB 3.2 Gen1, PS/2, mATX
MORE INFO
MORE INFO

Scan code: LN167678 Manufacturer code: 52119-04-40G
£44.99
£5.48 Next day delivery
Item overdue since 18 June 2026
Pre Order
Pre order
Pay in 3 interest-free payments of £15.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

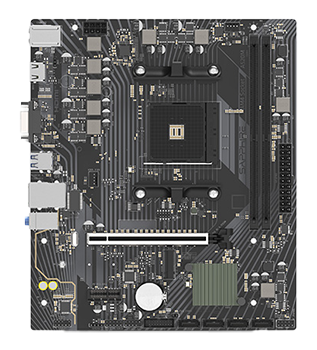

A520M-E AMD AM4 Micro-ATX Motherboard from Sapphire

A520M-E AMD AM4 Micro-ATX Motherboard from Sapphire

Essential Performance. Trusted Quality. SAPPHIRE A520M-E is a compact Micro-ATX AM4 motherboard built on the AMD A520 chipset, ideal for budget gaming and everyday PCs. It supports Ryzen 3000, 4000 and 5000 series CPUs, dual-channel DDR4 up to 64 GB, PCIe 3.0 x16 for graphics, and PCIe 3.0 M.2 storage for fast load times. With 4+2+1 phase CPU power, HD audio, Gigabit LAN, HDMI and multiple USB 3.2 Gen1 ports, it delivers stable performance and modern connectivity.

AMD® A520Chipset

AM4CPU Socket

Ryzen™ 5000/4000/3000 SeriesProcessors

mATXForm Factor

Hero angle of A520M-E motherboard on dark black/blue rugged concrete.

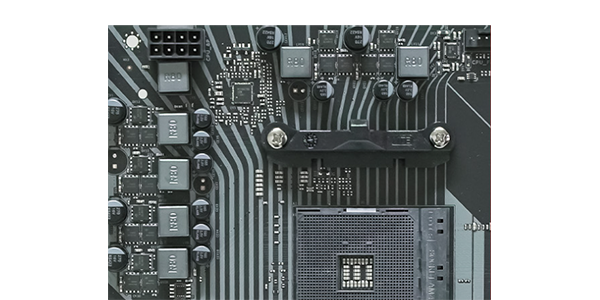

Hero angle of A520M-E motherboard, showcasing smart power design.

Smart Power Delivery Advanced 4+2+1 Smart Power Phase Design with Titanium Inductors ensures clean, stable power delivery, unlocking the full performance potential of Ryzen™ processors.

Versatile Expansion and Connectivity

Rear IO of the A520M-E motherboard.
PS/2
RJ45 LAN
3x Audio Jacks
2x USB 2.0
HDMI™ Port
VGA Port
4x USB 3.2
PS/2
RJ45 LAN
3x Audio Jacks
2x USB 2.0
HDMI™ Port
VGA Port
4x USB 3.2
Specifications
Core Specifications
Edition A520M-E
Form Factor MicroATX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 5.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/80, PCIe Gen3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 4 x Diagnostic LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x speaker header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 230 x 197 mm
Note
Additional Information
Scan Code LN167678
Model Number 52119-04-40G
GTIN 4895106296886
