Samyang - 'XEEN CF Kit'
16/24/35/50/85 PL Mount

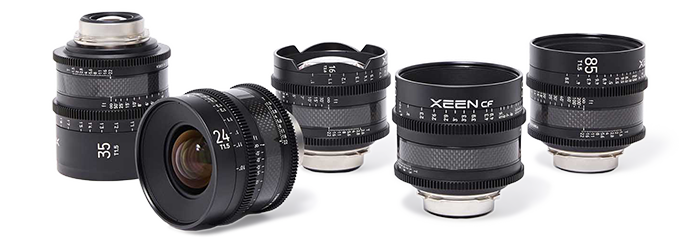

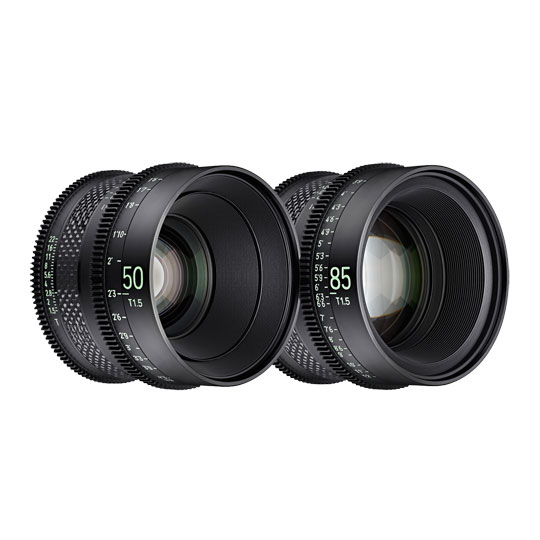

'X-Experience'Samyang’s XEEN CF Kit 16/24/35/50/85 PL Mount is a combination of five of the most popular flexible and compact XEEN prime cinema lenses. Including the 16mm T2.6 and the 24/35/50/85mm T1.5 lenses encased in a custom carry case, produced in Germany, delivering reliable protection from dust, water, shock and general damage. Take the kit to any location and film set – along with any necessary accessories or future additional lenses – thanks to the convenient three, spare cut-outs in the case’s foam.
Whats In the Box
• 1 x XEEN CF 16mm T2.6 PL Lens
• 1 x XEEN CF 24mm T1.5 PL Lens
• 1 x XEEN CF 35mm T1.5 PL Lens
• 1 x XEEN CF 50mm T1.5 PL Lens
• 1 x XEEN CF 85mm T1.5 PL Lens
• 1 x Custom Case
Lightweight Cinematic Lenses

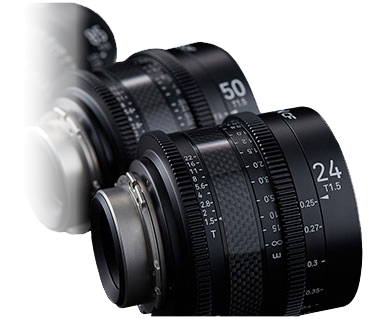

Carbon FibreLightweight and durable carbon fibre is applied to the lens barrel to achieve weight reduction while maintaining durability.
It is designed to be less than 1kg and can be flexibly used in various shooting environments such as various types of cameras, drones and gimbals.

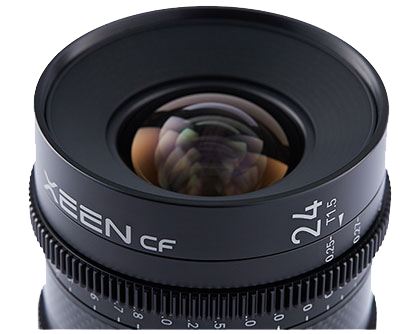

8K & Cinematic LookWіth ехсеllеnt rеѕоlutіоn ѕuрроrtіng а lаrgе іmаgіng ѕеnѕоr, thе lеnѕеѕ аrе сараblе оf ѕhооtіng іn 8К tо dеlіvеr thаt оnе-оf-а-kіnd сіnеmаtіс lооk. Тhеѕе сіnеmаtіс lеnѕеѕ аrе реrfесt fоr еmрhаѕіѕіng thе dеlісаtе еmоtіоnѕ оf уоur асtоrѕ оr ѕubјесtѕ whіlе rісhlу dерісtіng thе ѕhоt. Yоu саn аlѕо еаѕіlу сrеаtе ѕtunnіng bоkеh еffесtѕ wіth а brіght Т1.5 ареrturе.

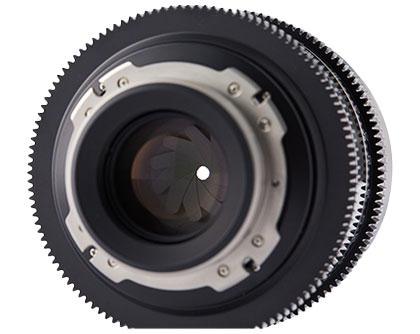

X-CoatingThe unique X-Coating technology is applied to allow expert control of light reflections within the lens, creating its characteristic striking look. X-Coating allows you to turn flare and ghosting into dramatic effects instead of ruining your shot.
Excellent UsabilityEach lens has a front diameter of 95mm and a unified gear positioning for the focus and aperture rings allowing for easier attachment of Matte Box Filters and Follow Focus, allowing you to streamline lens changes on set.

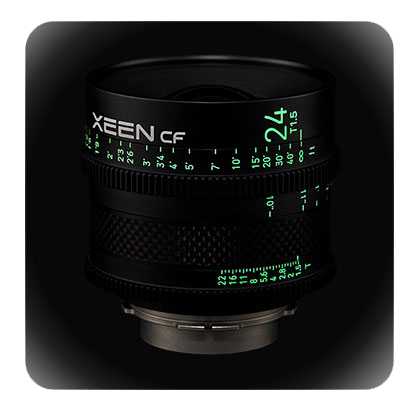

The XEEN CF series of lenses use an ultra-bright luminous font for Scales allowing for easy operation even in low-light conditions. Each lens boasts a tough, dustproof and waterproof IP67 construction along with temperature resistance of -30°C to 80°C making sure you can get the shot in any condition.
Beautiful Bokeh & Crisp Details
Look and Feel Samyangs XEEN CF series lenses offer crisp, sharp details and beautiful, dimensional bokeh. Alongside a Cinema quality halation effect and compatibility with larger 8K image sensors, allowing you to capture vibrant, clear imagery for your next production.
Dramatic PortraitsCorresponding to the latest digital cinema cameras, XEEN CF expresses the dramatic emotions of people in rich and detailed manner.
Crystal Clear ResolutionOptimised for the latest large image sensors capable of capturing 8K resolution, allowing for vibrant landscapes and clearer details to be captured.
Sharp and Rich ImageExcellent sharpness for capturing details and smooth, rich gradation at maximum opening, effectively capturing a variety of subjects.
Dimensional LookThe 11-blade iris allows impressive bokeh to be achieved, enabling you to create a beautiful sense of dimension and space.
Cinema Halation EffectThe proprietary X-Coating technology effectively controls flare and ghosting, suppressing unnecessary light reflections and provides halation suitable for dramatic expressions.

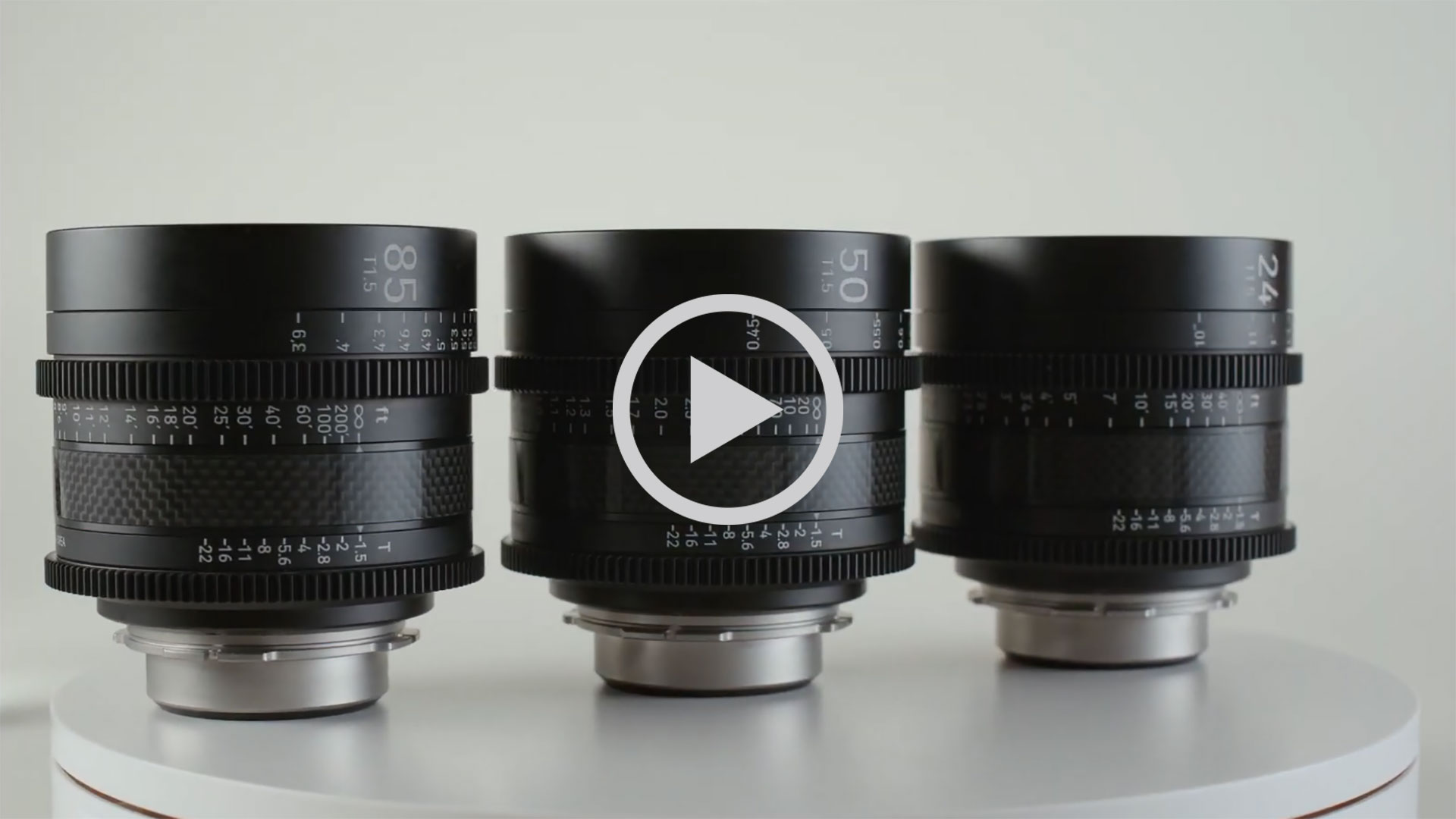

'XEEN CF Cine Prime Lens - Showreel Full Version'
The Tech Spec
| Features | Specification | Maximum T-Stop | 16mm: T2.6 24mm: T1.5 35mm: T1.5 50mm: T1.5 85mm: T1.5 |
|---|---|
| Image Circle | 16mm: Ø 43.3mm 24mm: Ø 43.3mm 35mm: Ø 43.3mm 50mm: Ø 43.3mm 85mm: Ø 43.3mm |
| Angle of View (Full Frame) | 16mm: 107.0° 24mm: 84.1° 35mm: 63.1° 50mm: 46.2° 85mm: 28.4° |
| Angle of View (Super 35) | 16mm: 87.4° 24mm: 61.2° 35mm: 46.9° 50mm: 31.2° 85mm: 19.0° |
| Focusing Range (Full Frame) | 24mm: ∞ to 0.30 m 24mm: ∞ to 0.25 m 35mm: ∞ to 0.33 m 50mm: ∞ to 0.45 m 85mm: ∞ to 1.12 m |
| Front Diameter | Ø 95 mm |
| Aperture Blades | 11 |
| Rotation Angle of Focus Ring | 200° |
| Rotation Angle of Aperture Ring | 16mm: 32.5° 24/35/50/85mm: 40° |
| Mount | PL |
| Size | 16mm: Ø100.0 x 82.3 mm 24mm: Ø100.0 x 90.5 mm 35mm: Ø100.0 x 113.7 mm 50mm: Ø100.0 x 90.5 mm 85mm: Ø100.0 x 90.5 mm |
| Weight | 16mm: 0.9kg 24mm: 0.9kg 35mm: 1.1kg 50mm: 0.9kg 85mm: 1.0kg |
