Roland AC-33RW Acoustic Chorus Guitar Amplifier (Rosewood)
Roland AC-33RW Acoustic Chorus Guitar Amplifier (Rosewood) 30 watts, 2x12"
- SCANPROTECT Protect against installation damage for 28 days. More info
Acoustic Chorus Guitar Amplifier
Roland - AC-33RW
SUPER PORTABLE, VERSATILE, BATTERY-POWERED
STEREO ACOUSTIC GUITAR AMPThe Roland AC-33 is the world’s first battery-powered amp made specifically for acoustic guitar, offering rich, deep, stereo sound to go. Portable and powerful, the AC-33 provides true stereo sound, Guitar and Mic/Line channels, custom-tailored effects, anti-feedback, and a Phrase Looper. This amp was designed to go places no amp has ever gone before. Thanks to its battery-power capability, the AC-33 lets you take your act anywhere: into the woods, onto the streets, or wherever your imagination takes you.
Equipped with Roland’s latest DSP technology, the AC-33, delivers pure, rich acoustic sound with projection far beyond its size. Its true stereo design (15 watts x 2) allows for brilliant stereo/multi-band chorus with “Wide” mode, plus shimmering reverb and 3D-type ambience effects tailored specifically for acoustic guitar.

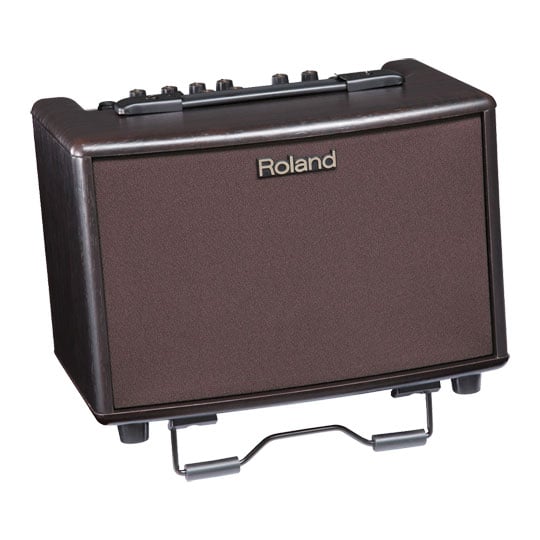

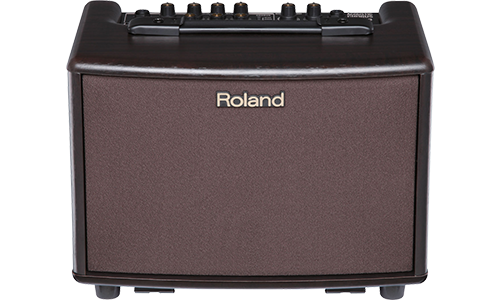

New Rosewood Finish!The AC-33 is now available in beautiful rosewood-look cabinets, offering an alternative to the standard stage-ready black finish. The attractive woodgrain styling perfectly matches the atmosphere of your living room or studio, along with the aesthetic of your acoustic guitars.
at a glance
• 30 watts (15W+15W) of natural, stereo acoustic sound through twin speakers
• Runs on AC power or eight AA batteries (accepts rechargeable NiMH types)
• Reverb, chorus, and ambience effects (Ambience adds spatial, 3D-type depth to the sound)
• Stereo AUX input (connect MP3/CD players, etc), headphone output
• Dual-channel configuration: Guitar and Mic/Line channel
• Phrase Looper with 40 seconds of record time
Strum & Sing
dedicated controlsThe AC-33 features two discrete channels: Guitar and Mic/Line. Plug in an acoustic guitar and a microphone (or line-level instrument) and mix them separately. Both channels have dedicated controls for volume, multi-band EQ, and chorus.
The Mic/line channel includes both XLR and 1/4" inputs. You can also connect an MP3/CD player to the stereo AUX input for play-along practice or performance. Master volume, reverb, ambience, and anti-feedback are provided as well.
Phrase Looper
Create on the spotThe AC-33’s onboard Phrase Looper allows you to record, loop, and jam over your own guitar riffs or incoming audio from the AUX input.
Record and loop up to 40 seconds at a time, and amaze your listeners with sound-on-sound performances that you create on the spot.
AC-60-RW/AC-33-RW Acoustic Chorus Guitar Amplifier Overview
The Tech Spec
| Features | Specification | Rated Power Output | 15 W + 15 W (when using the AC adaptor) 10 W + 10 W (when using the Alkaline batteries) |
|---|---|
| Nominal Input Level (1 kHz) | GUITAR Channel: -10 dBu MIC/LINE Channel: -50 dBu/-20 dBu AUX IN: -10 dBu |
| Nominal Output Level (1 kHz) | LINE OUT: -10 dBu |
| Speakers | 12 cm (5 inches) x 2 |

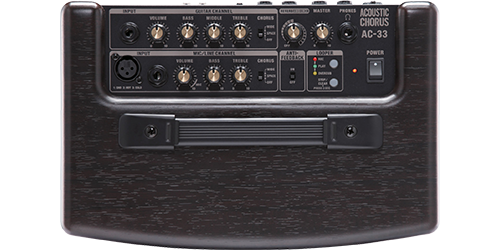

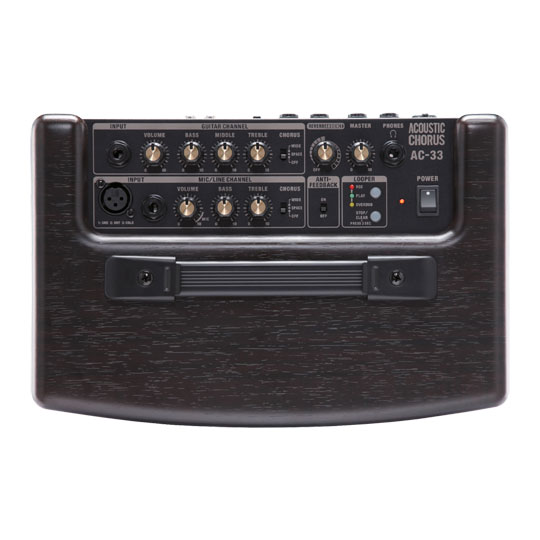

| Controls | [GUITAR Channel] VOLUME Knob BASS Knob MIDDLE Knob TREBLE Knob CHORUS Switch (OFF, SPACE, WIDE) [MIC/LINE Channel] VOLUME Knob BASS Knob TREBLE Knob CHORUS Switch (OFF, SPACE, WIDE) [REVERB/AMBIENCE] REVERB/AMBIENCE Knob [ANTI-FEEDBACK] ON/OFF Switch [LOOPER] REC/PLAY/OVERDUB Button STOP/CLEAR Button [AUX IN Controls] LEVEL Knob MASTER Knob POWER Switch |
| Indicators | REC, PLAY, OVERDUB, POWER |
| Connectors | GUITAR Channel Input Jack (1/4-inch phone type) MIC/LINE Channel Input Jacks (XLR type, Balanced) (1/4-inch TRS phone type, Balanced) AUX IN Jacks L, R (RCA phono type) (Stereo miniature phone type) LINE OUT Jacks L (MONO), R (1/4-inch phone type) PHONES Jack (Stereo 1/4-inch phone type) FOOT SW Jack [EFFECTS] (TIP: CHORUS, RING: REVERB/AMBIENCE) (1/4-inch TRS phone type) FOOT SW Jack [LOOPER] (TIP: REC/PLAY/OVERDUB, RING: STOP/CLEAR) (1/4-inch TRS phone type) DC IN Jack |
| Power Supply | AC Adaptor (included, DC 13 V), Dry battery LR6 (AA) type (alkaline) x 8, Rechargeable Ni-MH battery (AA, HR6) type x 8(commercially available), or Rechargeable Amp Power Pack BTY-NIMH/A(Options (sold separately)) |
| Current Draw | 490 mA |
| Expected battery life under continuous use | Alkaline battery: Approx. 8 hours Rechargeable Ni-MH battery (AA, HR6)(commercially available): Approx. 9 hours Rechargeable Amp Power Pack BTY-NIMH/A(Options (sold separately)):Approx. 16 hours These figures will vary depending on the actual conditions of use. |
| Accessories | Owner’s Manual, AC Adaptor, AC Cord |
| Dimensions | Width: 318 mm, 12-9/16 inches Height: 243 mm, 9-5/8 inches Depth: 223 mm, 8-13/16 inches |
| Weight | 4.7 kg 10 lbs. 6 oz. |
