Scan code: LN134298 Manufacturer code: 11322-01

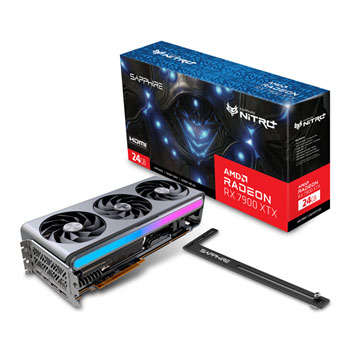

Sapphire AMD Radeon RX 7900 XTX NITRO+ 24GB Open Box Graphics Card

Open Box Sapphire Radeon RX 7900 XTX NITRO+ 24GB GDDR6 Ray-Tracing Graphics Card, RDNA3, 6144 Streams

Thumbnail 1 : Sapphire AMD Radeon RX 7900 XTX NITRO+ 24GB Open Box Graphics Card Thumbnail 2 : Sapphire AMD Radeon RX 7900 XTX NITRO+ 24GB Open Box Graphics Card Thumbnail 3 : Sapphire AMD Radeon RX 7900 XTX NITRO+ 24GB Open Box Graphics Card Thumbnail 4 : Sapphire AMD Radeon RX 7900 XTX NITRO+ 24GB Open Box Graphics Card
Scan code: LN134298 Manufacturer code: 11322-01
Order now and get it tomorrow, Wed 17th Jul
£987.98
Get it Tomorrow, 17 JulIn stock
FREE DELIVERY ON THIS ITEM
From £34.60 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £89.51
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £987.98
Total inc. interest: £1,074.10
Monthly Payment: £48.25
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £987.98
Total inc. interest: £1,157.74
Monthly Payment: £34.60
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £987.98
Total inc. interest: £1,245.43
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £26.25 / month (APR 19.9%)
Delivery Options
  • By DPD On 17th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

OC BIOS

SAPPHIRE NITRO+ AMD Radeon™ RX 7900 XTX, and RX 7900 XT have the primary BIOS set to the maximum TGP setting for optimal performance.


Max Boost

The Max Boost switch increases the boost clock and power limit to unleash the gaming performance of the card. Planning to overclock or looking for maximum performance?


TriXX Software: BIOS Switch

With the NITRO+ AMD Radeon™ RX 7900 XT Graphics Card, gamers can switch from Primary setting to Secondary setting or back using our TriXX software for a quick and easy switch between your dual BIOS modes.


Power Design

The NITRO+ AMD Radeon™ RX 7900 XT Graphics Card is designed with Digital Power specifically for GPU and memory to aid in overclocking, balancing current distribution and averaging thermal dissipation for each power phase.


Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.


High TG Copper PCB

The GPU is mounted on to the high-density 14-layer 2oz Copper PCB with a high TG temperature value PCB to match the power requirements of the GPU and memory and guarantee mechanical stability of the PCB during operation.


NITRO Cool Tech

NITRO Cool Tech is a combination of various SAPPHIRE cooling technologies with the goal to keep the product in the balance of cooling performance and noise level. It does not only cool GPU and memory but also take other heat sources into account on the graphics card.


Intelligent Fan Control

Fan speed is intelligently controlled to keep the GPU, Memory, PWM IC and other components as low as possible in temperature to balance performance and fan noise.


Precision Fan Control

Standard industry fans may have up to 10% difference between fan rotation cycles (RPM). The Fan IC Control on SAPPHIRE graphics cards reduce differential at approximately 3%. This up to 70% improvement on accuracy ensures that cooling and noise performance of every graphics card is up to scratch.


Two-Ball Bearing Fans

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades mean the solution is up to 10% quieter than the previous generation.


Metal Backplate with Thermal Pad

The high quality aluminium backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high-performance thermal pad in between.


Angular Velocity Fan Blade

The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation.


Wave Din Design & V-Shape Fin Design for Improved GPU Cooling

The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralises the airflow around the GPU to dissipate heat efficiently to produce lower thermal temperatures.


Die Casted Aluminium-Magnesium Alloy Frame

The Die Casted Aluminium-Magnesium Alloy Frame enveloping the sides of the PCB help to strengthen the structural stiffness of the shroud to create a strong, scratch resistant and high-quality finish that elevates the aesthetic and strength of the graphics card.


Vapor-X Cooling

The Vapour Chamber is mounted in contact with the surface of the main GPU chip and GDDR6 Memory. Since the entire area would transfer heat at the same rate, the Vapor-X module is engineered to work more efficiently than a copper heatsink at carrying away heat. Upon gaining heat, the heat source is pushed to the Vaporisation Wicks to begin the heat dissipation process. Due to extreme low pressure, working fluid and pure water can be easily vaporised, and easily moves through the vacuum until it reaches the Condensing Wick which is adjacent to the cooled surface. Here it turns back to a liquid state whereby the liquid is then absorbed by the Transportation Wick by capillary action and moved back towards the Vaporisation Wick. A recycled liquid system occurs when the heat source reheats the liquid and it becomes re-vaporised by the Vaporisation Wick to restart the Vapor-X Cooling process.


Assisted System Fan Control

When the temperature of the GPU rapidly rises, the fans on the graphics card will speed up accordingly. To aid in rapid cooling and heat dissipation, the Assistive System Fan Control feature on TriXX controls the speed of a system fan to automatically increase alongside the graphics card fans simultaneously to assist in expelling hot air from the entire system faster.


TriXX Support

The TriXX Software includes a range of features such as TriXX Boost, Software BIOS Switch and NITRO Glow ARGB LED Effect which can only be controlled via TriXX. Customise your individual style with TriXX Software and heighten your gaming experience!


Fan Check

At times fans need a service but it can be frustrating to return the entire card and wait for a replacement to be authorised. The fan Check feature allows users to check the cooler’s status and immediately contact customer support through Fan Service in case of problems.


Quick Disconnect Fans

If there’s a fan problem, you don’t have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they’re easy to remove, clean and replace, with just one screw holding them securely in place.


NITRO Glow

With tasteful shroud design augmented by ARGB LEDs, you can change the colours of the LEDs, for a customised design. This can be controlled via TriXX software. Choose from various different modes including Fan Speed Mode, PCB Temperature Mode or the Colourful Rainbow Mode or turn off the LEDs.


External RGB LED Motherboard Synchronisation

Synchronise addressable RGB LED effects with the motherboard by selecting “External” in TriXX software.

Features
• Vapour Chamber.
• Assisted System Fan Control.
• NITRO Glow ARGB / Dual ARGB Light Bar.
• External RGB LED Synchronisation.
• Software BIOS Switch / Dual BIOS.
• Fan Check / Quick Connect Fan.
• TriXX Boost.
• Max Boost.
• Angular Velocity Fan Blade.
• Wave Fin Design / V-Shape Fin Design / Back Plate.
• Die Casted Aluminium-Magnesium Alloy Frame.
• AMD RDNA™ 3 architecture.
• AMD Radiance Display™ Engine.
• AMD Radeon™ Boost technology.
• AMD Radeon™ Anti-Lag technology.
• PCI® Express 4.0 ready.
• AMD Fidelity FX™ technologies.
• AMD Fidelity FX™ Super Resolution technology.
• Microsoft® DirectX® 12 Ultimate.
• Microsoft® Direct Storage.
• Vulkan® Optimised.
• AMD Smart technologies.
• AMD Software: Adrenalin Edition™ application.
• AMD Noise Suppression.
• AMD Privacy View.
• AMD Radeon™ Super Resolution technology.
• AMD Link.
• AMD FreeSync™ technology.
Specifications
Key Specifications
Chipset Radeon RX 7900 XTX
Edition NITRO+
Manufacturing Process
Microarchitecture RDNA 3
Cores & Clocks
Streams 6144
Core Clock
Boost Clock
Video Memory (VRAM)
Memory Size 24GB
Memory Type GDDR6
Memory Clock
Memory Speed (Effective with DDR)
Memory Bus 384 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Tri Fan (3)
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0
Connectivity
  • 2 x DisplayPort
  • 2 x HDMI
Visuals
AMD CrossFire Support
AMD Freesync Support Yes
AMD FreeSync Version
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 3 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 800 W
Maximum GPU Temperature
Physical
Width 3.5 Slot
Low Profile Support N/A
Dimensions 320 x 135.75 x 71.6 mm
Package Type Open Box
Additional Information
Scan Code LN134298
Model Number 11322-01
GTIN 4895106293328
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
