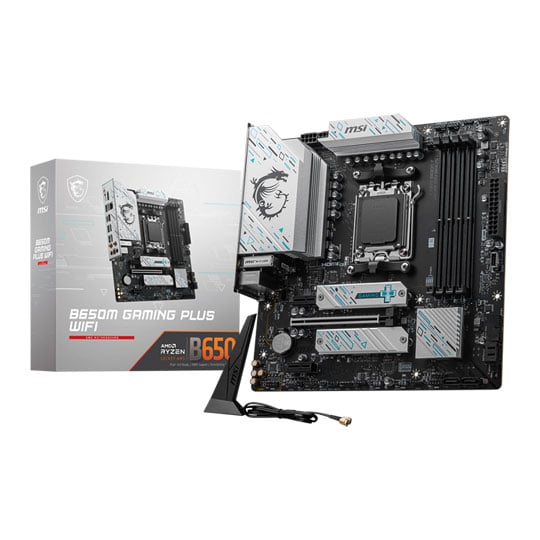

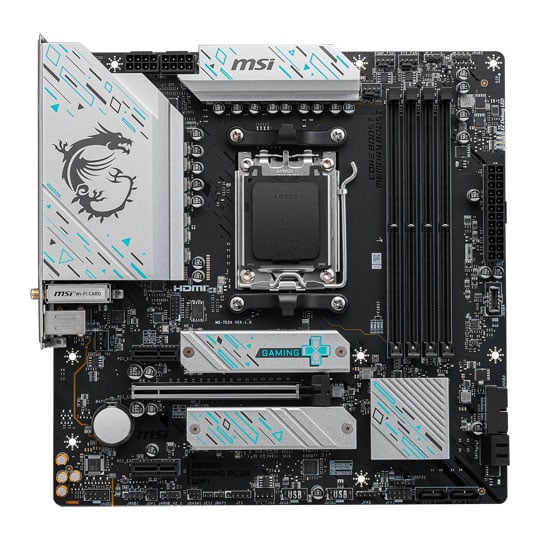

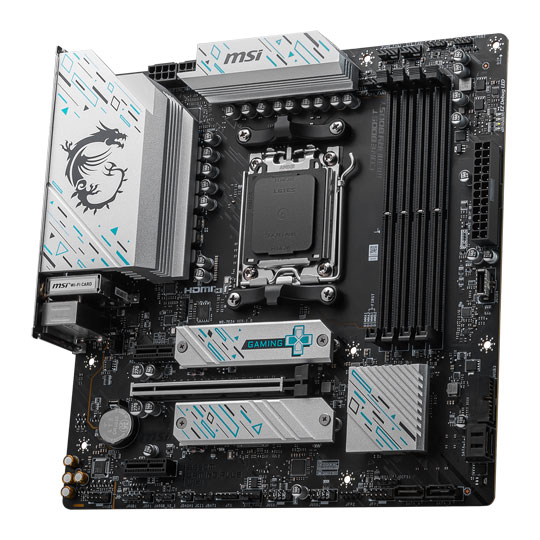

MSI AMD B650M GAMING PLUS WIFI microATX Refurbished Motherboard
Refurbished
MSI AMD B650M GAMING PLUS WIFI microATX Refurbished Motherboard
Scan code: LN150740 Manufacturer code: B650M GAMING PLUS WIFI
£129.98
Add To Basket
Get it Tomorrow, 06 DecIn stock
  • Thumbnail 1 : MSI AMD B650M GAMING PLUS WIFI microATX Refurbished Motherboard
  • Thumbnail 2 : MSI AMD B650M GAMING PLUS WIFI microATX Refurbished Motherboard
  • Thumbnail 3 : MSI AMD B650M GAMING PLUS WIFI microATX Refurbished Motherboard
  • Thumbnail 4 : MSI AMD B650M GAMING PLUS WIFI microATX Refurbished Motherboard
Refurbished

MSI AMD B650M GAMING PLUS WIFI microATX Refurbished Motherboard

Refurbished MSI MAG B650M GAMING PLUS WIFI, AMD B650, S AM5, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, AMD EXPO™, MicroATX
MORE INFO
MORE INFO

Scan code: LN150740 Manufacturer code: B650M GAMING PLUS WIFI
£129.98
Order now and get it tomorrow, Fri 6th Dec
Add To Basket
Get it Tomorrow, 06 DecIn stock
  • By DPD On 6th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £10.84 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £10.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £129.98
    Total inc. interest: £129.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

Win The Competition

The B650M GAMING PLUS WIFI is a gaming oriented mATX motherboard constructed around the latest AMD B650 chipset that balances value with premium hardware.


Supports AMD Ryzen 7000 Processors

The B650M GAMING PLUS WIFI motherboard supports AMD Ryzen 8000/7000 series processors.

Form Factor: mATX
Socket Type: AM5
Chipset: AMD B650


10+2+1 Duet Rail Power System VRM Design

With its dual 8 pin power connectors and exclusive Core Boost technology, the B650M GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:


Integrated Cooling Features

VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.


4 x DDR5 Dual Channel (7200+ MHz OC)

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.


1 x Fortified PCIe 4.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


PCIe Gen4 M.2 Connectors

The B650M GAMING WIFI motherboard features MSI's latest M.2 slots: 2 x Gen4 x4 64Gb/s slots


M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.


Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
HD Audio: 8-Channel (7.1) HD Audio with Audio Boost


Features

• Latest DDR5 Memory.
• Lightning Gen4 Solution.
• M.2 Shield FROZR.
• MSI Core Boost.
• MSI Memory Boost.
• FROZR AI Cooling.
• Wi-Fi 6E.
• Audio Boost Technology.

Specifications
Core Specifications
Edition B650M GAMING PLUS WIFI
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
Max. Memory Capacity 192GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 3 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Port
  • 2 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek RTL8125BG

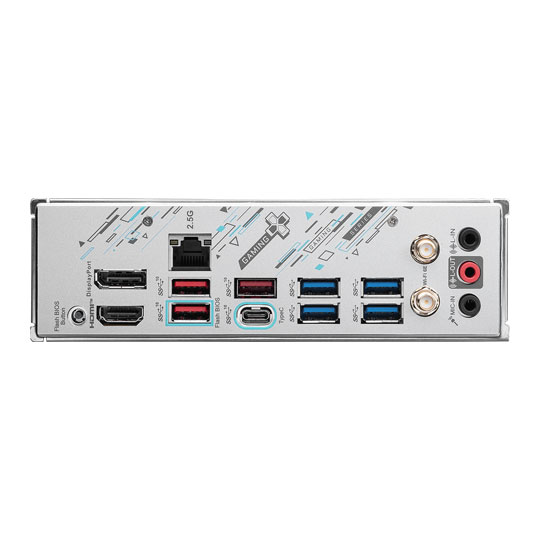

Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.3
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84 x 243.84 mm
Note
Additional Information
Scan Code LN150740
Model Number B650M GAMING PLUS WIFI
GTIN 4711377180955
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
Buying Guide
Need help choosing the right board? Read our AMD Motherboard Buying Guide
