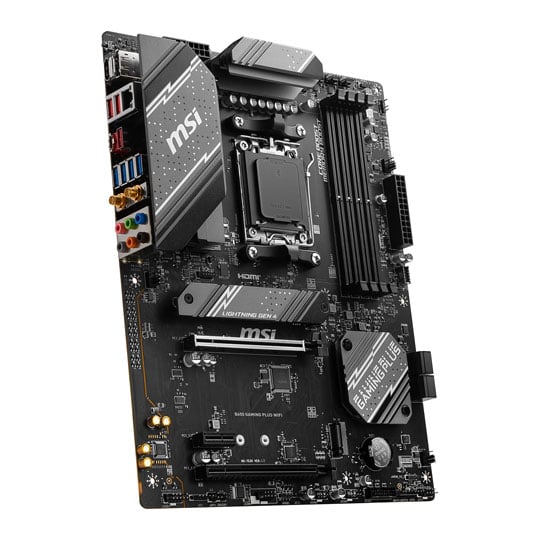

Refurbished MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
NewSaleRefurbished
Refurbished MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
Scan code: LN151434 Manufacturer code: B650 GAMING PLUS WIFI/openbox
Was: £149.99
£139.99
Add To Basket
Get it Tuesday, 08 OctIn stock
  • Thumbnail 1 : Refurbished MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
  • Thumbnail 2 : Refurbished MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
  • Thumbnail 3 : Refurbished MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
  • Thumbnail 4 : Refurbished MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
NewSaleRefurbished

Refurbished MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard

Refurbished MSI B650 GAMING PLUS WIFI, AMD B650, AM5, SATA3, PCIe 4.0,2x M.2, 2.5GbE, USB 3.2 Gen2, AMD EXPO™, ATX
MORE INFO
MORE INFO

Scan code: LN151434 Manufacturer code: B650 GAMING PLUS WIFI/openbox
Was: £149.99£139.99
Order now and receive it by Tuesday, 8th October
Add To Basket
Get it Tuesday, 08 OctIn stock
  • By DPD On 8th Oct Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £12.69 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £12.69
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £139.99
    Total inc. interest: £152.16
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

Defeat the Competition

The B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, a convenient Wi-Fi solution and DDR5 memory support for gamers who want it all.


Supports AMD Ryzen 7000 Processors

The B650 GAMING PLUS WIFI motherboard supports AMD Ryzen™ 7000 processors.


12+2 Duet Rail Power System VRM Design

With its dual 8 pin power connectors and exclusive Core Boost technology, the B650 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings.


Integrated Cooling Features

VRM Cooling: Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.


4 x DDR5 Dual Channel (6400+ MHz OC)

Memory Boost:A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.


2 x Fortified PCI-e 4.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


Gen4 M.2 Connectors

The B650 GAMING PLUS WIFI motherboard features MSI's Gen4 M.2 slots


M.2 Shield Frozr

Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.


Wi-Fi 6E & Bluetooth 5.3

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps.
Wi-Fi 6E: Features the latest AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.



Features


• Supports AMD Ryzen™ 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC).
• Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work.
• Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G.
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• High Quality PCB: 6-layer PCB made by 2oz thickened copper.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Specifications
Core Specifications
Edition B650 GAMING PLUS WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x Serial (COM) Header
  • 4 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 3 x USB 3.2 Gen1 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG

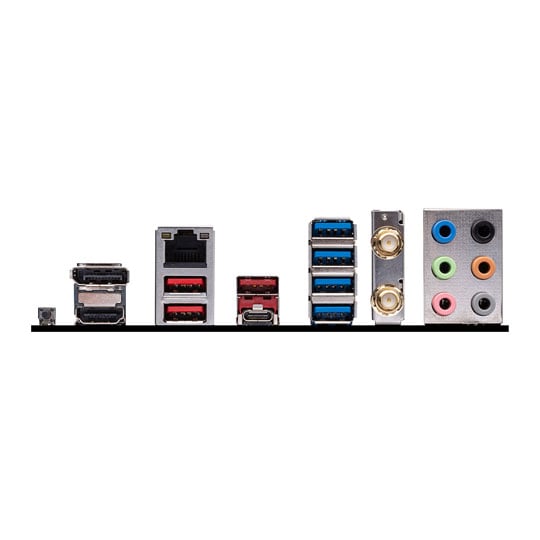

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note Refurbished product
Additional Information
Scan Code LN151434
Model Number B650 GAMING PLUS WIFI/openbox
GTIN 4711377098052
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
Buying Guide
Need help choosing the right board? Read our AMD Motherboard Buying Guide
