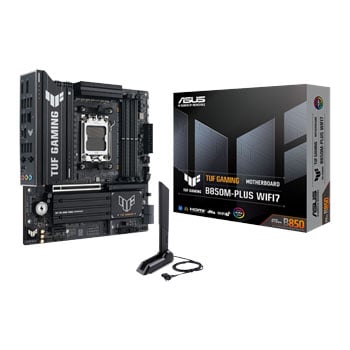

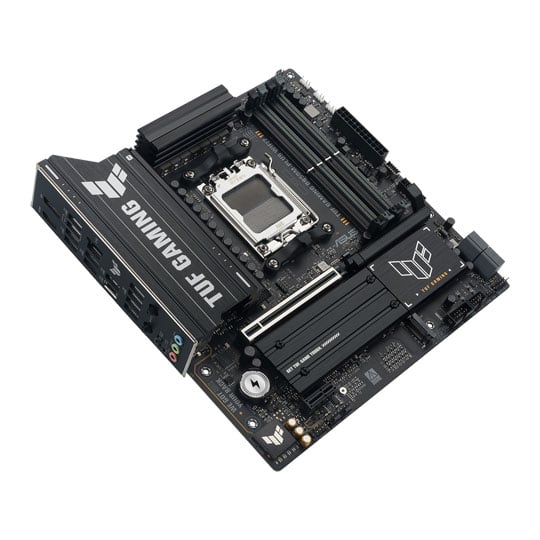

Refurbished ASUS TUF GAMING B850M-PLUS WiFi 7AM5 DDR5 PCIe 5.0 Micro-ATX Motherboard

TUF GAMING B850M-PLUS WIFI7 Motherboard

ASUS TUF GAMING B850M-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Intelligent Control

AI Cache Boost
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS DriverHUB
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

Armory Crate
Customise Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight Layered PCB Design
Enhanced stability and overclocking.

ProCool Power Connectors
Proprietary 8+8 pin connectors improve PSU connection.

TUF Components
TUF chokes and capacitors offer rock-solid durability and stability.

Digi+ VRM Control
Real-time voltage control.

Impressive Memory & Storage Capabilities

DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

DDR5 Dominance
For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

M.2 PCIe 5.0 Support
This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Ice Cold Thermal Solution

Enlarged VRM Heatsinks
The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.

AIO Pump Header
An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or all-in-one cooling setups.

Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

Smart Fan Protect
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.

M.2 Heatsink
Two M.2 slots have dedicated heatsink to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

4-pin PWM/DC Fan
All onboard fan headers support auto-detection of PWM or DC fans.

Superb PCH Heatsink
A surface area for the chipset cooler maximizes system performance and heat dissipation.

Empowering Connection

This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C® port and front USB 10Gbps Type-C® connector.

PCIe 5.0 for Graphics Card?
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

Rear USB 20Gbps Type-C®
Extensive USB support ensures connections to a wide array of external devices. This motherboard includes a USB 20Gbps Type-C® port on the rear I/O panel that delivers transfer speeds of up to 20Gbps.

Front USB 10Gbps Type-C®
This motherboard features a USB 10Gbps Type-C® front panel connector for speedy data transfers of up to 10Gbps.

Easy PC DIY

PCIe Slot Q-Release
A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. It can also alert them when memory modules have not been properly installed--even before booting.

Clear CMOS & BIOS FlashBack™
The Clear CMOS button quickly resets Bl0S settings to factory default. lt can also be used to reboot the PC if incorrect Bl0S settings have been selected.
Bl0S FlashBack™ is a safe and simple way to update Bl0S. Just drop the (UEFI)BlOS file onto a FAT32-formatted USB stick, plug it into the USB BlOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

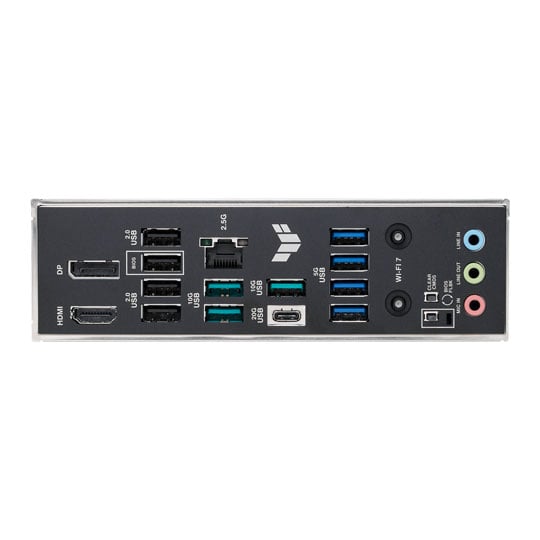

Pre-mounted I/O shield
Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

Ultra-Fast Networking

WiFi 7
The next-gen WiFi 7* supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

2.5Gb Ethernet
On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.?

• AMD AM5 Socket: Supports Ryzen™ 7000, 8000, and 9000 series processors.
• B850 Chipset: Delivers next-gen performance and efficiency.
• DDR5 Memory Support: Up to 256GB, speeds of 8000+ MT/s (overclocked).
• PCIe 5.0 x16 Slot: Ready for next-gen graphics (speed CPU-dependent).
• Triple M.2 Slots: Includes CPU-dependent PCIe 5.0 x4, plus two PCIe 4.0 x4 for high-speed NVMe SSDs.
• WiFi 7 & Bluetooth® 5.3: Fast wireless network and connectivity.
• 2.5Gb Ethernet: Reliable, high-speed LAN with Realtek controller.
• Rear and Front USB Type-C: Rear 20Gbps Gen 2×2 and front 10Gbps Gen 2 for ultra-fast transfers.
• Audio: Realtek ALC1220P 7.1 surround sound, DTS audio enhancements.
• Military Grade Durability: TUF Protection and enhanced power solution, Q-Design build features (Q-Latch, Q-Release, Q-Antenna).
• Micro-ATX Form Factor: Compact size (24.4 x 24.4 cm), ideal for smaller gaming builds.
• Comprehensive Cooling: Optimized for stability under heavy gaming and multitasking workloads.
• BIOS FlashBack™: Easy BIOS updates and recovery.
