Radial USB Pro USB Laptop Direct Box
Radial - USB Pro USB Laptop Direct Box, High Performance 24bit/96kHz Digital Audio Converter
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
USB Laptop Direct Box
Radial - USB-Pro
Connect your laptop to a pro audio systemThe Radial USB-Pro is a high-resolution stereo digital audio converter and direct box that is designed to connect to any computer and seamlessly convert digital audio tracks to a pair of balanced analogue outputs. If you're playing backing tracks on stage, giving an audio presentation, or performing the role of DJ at an event, the USB-Pro is the easiest way to provide a high quality noise-free connection between a laptop and any sound system.
Designed for plug and play simplicity, the USB-Pro will automatically be listed as an available sound card in the audio settings of all popular operating systems including Windows and Mac, with 24bit/96kHz digital to analog converters that retain the quality of the audio signal. A stereo pair of balanced XLR outputs allows you to connect to a microphone preamplifier, PA system, mixing console, or even a powered speaker, with an on-board level control for quick and easy volume adjustments. If any noise occurs, ground lift switches are available and isolation transformers can be inserted into the signal path to remove hum and buzz from ground loops, for a clean connection to the PA.
+8dBuGain
5Hz - 40kHzFrequency Response
>90dBDynamic Range
At a glance
• High Performance 24bit/96kHz digital audio converter
• Balanced XLR outputs to feed a mixer or PA
• 3.5mm headphone output to test signals
• Plug & Play, no drivers required
USB-Pro Applications

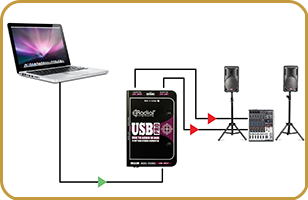

Using the USB-Pro with a laptopNothing is easier than the USB-Pro! Just plug it into your laptop and it automatically delivers your digital audio files to spectacular sounding stereo audio via the 24 bit digital to analog converters. You merely connect to the mic inputs on your mixing console or to any +4 line level device and you're all set!

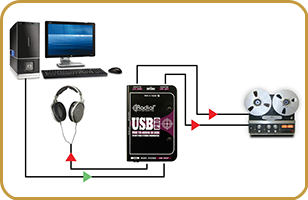

Using the USB-Pro in the studioConvert your client's files instantly! Connect the laptop to the USB-Pro and transfer files to the recording system at the maximum sample rate for best audio fidelity. The built-in headphone amp makes it easy to check for signal integrity.

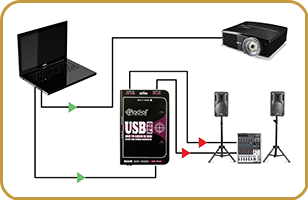

Using the USB-Pro for a video presentationAnyone that has incorporated audio with a projector knows how noise can be a serious problem. The USB-Pro features isolation transformers that may be switched in to eliminate hum and buzz caused by stray DC voltage and ground loops.
The Tech Spec
| Features | Specification | Audio circuit type | Custom decoder with analogue line drive |
|---|---|
| Frequency response | 5Hz ~ 40kHz (30Hz ~ 18kHz with isolation) |
| Dynamic range | >90dB |
| Gain | +8dBu |
| Total harmonic distortion | 0.01% |
| Output Impedance | 250Ω nominal |
| Noise Floor | -90dB |
| Maximum Output | +8dBu |
| Combatibility | Software compatibility: Windows XP/Vista/Win7/Win8/Win10 and Mac OS, Sound file compatibility: WDM, MME, CoreAudio, DirectSound, WASAPI and .WAV |
| Features | Mono Sum, Ground lift, Level Control, Headphone |
| Input Connectors | USB connector B-type |
| Output Connectors | 2 x XLR-M, 3.5mm headphone output |
| Extras | USB 1.1 full speed, Sampling Rate: 44.1kHz / 48kHz / 96kHz auto sensing, 75dBu stereo separation |
| Construction | 14-gauge steel |
| Size (L x W x D) | 5.0" x 3.3" x 2" 127 x 84 x 48mm |
| Weight | 1.5 lb 0.68kg |
| Power | USB bus powered 500mA maximum |
| Conditions | For use in dry locations only between 5°C and 40°C |
