Radial StageBug SB-2 Passive Direct Box

Radial StageBug SB-2 Passive DI for Bass, Acoustic and Keyboard

Thumbnail 1 : Radial StageBug SB-2 Passive Direct Box Thumbnail 2 : Radial StageBug SB-2 Passive Direct Box Thumbnail 3 : Radial StageBug SB-2 Passive Direct Box Thumbnail 4 : Radial StageBug SB-2 Passive Direct Box
Scan code: LN96359 Manufacturer code: R800-0120-00
£69.00
Free Delivery
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Aug 2019 to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

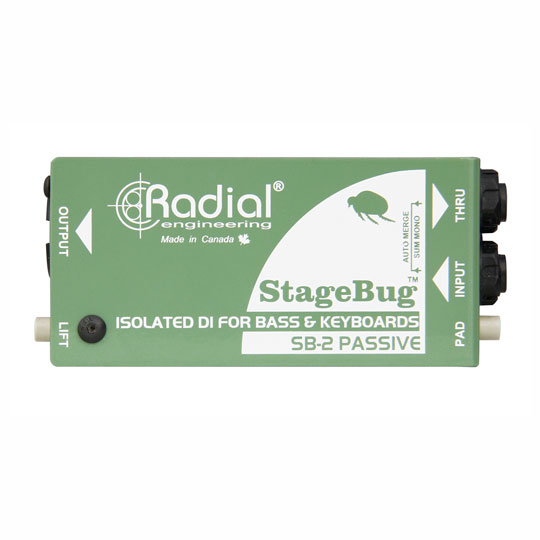

Product Overview The Radial StageBug SB-2™ Passive is a high-performance direct box made for players who are on the move! Made to fit inside of a guitar case, the SB-2 is ultra compact yet is feature-packed to ensure great performance on any stage.

Small Size and Big Performance

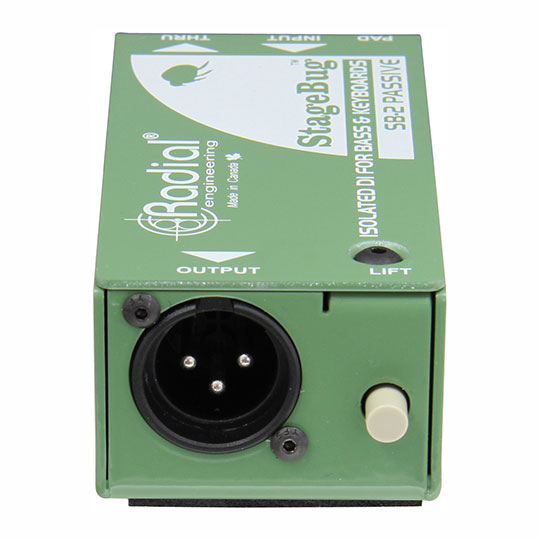

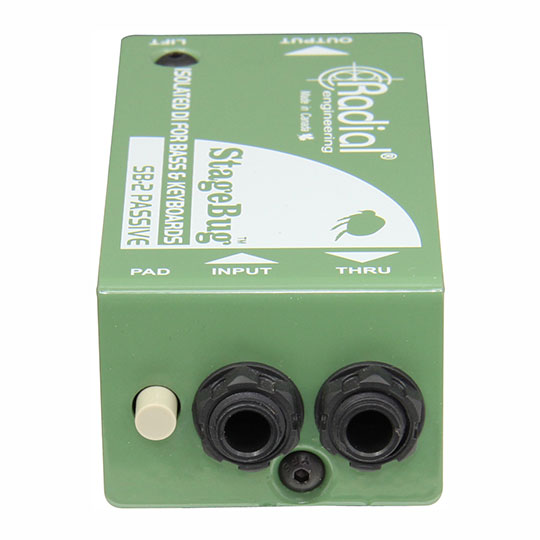

The compact design begins with a ¼" input and thru-put to feed the on-stage amp. This connects to the custom made Eclipse ET-DB3 transformer which performs the impedance matching and balances the signal. When using extra high output instruments, a -15dB pad can be inserted into the signal path. This enables the SB-2 to be used with active basses and digital pianos that often tend to overload the input side of the interface. An innovative stereo-to-mono merge function provides a convenient way to connect stereo keyboards and computers without having to reset the source for mono operation, saving time and input channels on the PA. The SB-2 output features an XLR wired to the AES standard with pin-2 hot. Once connected, the SB-2 delivers a smooth warm sound reminiscent of older vintage gear. The Eclipse ET-DB3 transformer is magical in its ability to handle extreme signal levels with a natural compression that is pleasing to the ears. The transformer also helps eliminate hum and buzz caused by ground loops by isolating the input from the output. This is augmented with a ground lift switch that lifts pin-1 on the XLR for quiet, professional results.

Using the SB-2 with Acoustic Guitar
Plug your acoustic guitar into the SB-2 Passive and it will smooth out the peaks and warm up your tone with a vintage vibe. The compact design makes it perfect for traveling between gigs.

Using the SB-2 with Electric Bass
Connect your bass to the StageBug SB-2; send the thru signal to your amp and the output to the PA system. Transformer isolation eliminates nasty hum and buzz caused by ground loops.

Using the SB-2 with a Keyboard
The Passive SB-2 is a perfect go-to direct box when you need to take the output from a keyboard and send it to the PA system. Input and thru jacks automatically merge the stereo signal to mono to save channels while the SB-2 balances the signal to drive distances of 100 meters (300 feet) without noise!

More information can be found in the User Manual below:
Data Sheet Features • Passive DI for bass, acoustic and keyboard
• Ultra compact to fit in your guitar case
• Plug & play easy to use feature set
• Transformer isolation eliminates noise
Specifications
Product Type
PC Interface N/A
Assignable Faders
Assignable Knobs
Assignable Pads
Keys
Wheels
Connectivity (Input)
Connectivity (Output)
Sample Rate
Bit Rate N/A
Frequency Response (Input) N/A
Frequency Response (Output) N/A
Maximum Input Level N/A
Maximum Output Level
Dynamic Range
Dimensions (mm)
Misc. Notes
Package Type
Additional Information
Scan Code LN96359
Model Number R800-0120-00
GTIN 676101040650
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
