Radial Reamp JCR Reamp
Radial Reamp JCR Passive Studio Reamper, Original Circuit Designed by John Cuniberti, Plug and Play Easy to Use Design
Passive Reamper
Radial - Reamp JCR
Original Reamp Circuit

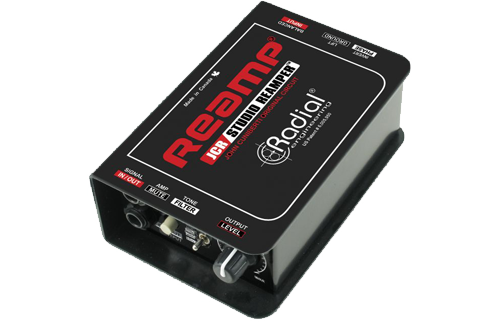

Radial's Reamp JCR is a high-performance passive Reamper that gives you the ability to take a pre-recorded track and send it through a guitar amp or pedal chain, allowing you to explore new sonic textures and experiment with microphone placement, amp and pedal settings without limit.
The JCR utilizes the original Reamp circuit designed by recording industry legend John Cuniberti, providing exceptional audio quality that preserves every detail of the original recording while optimizing it to feed amplifiers and effects pedals.
at a glance
• Lets you re-record tracks through a guitar or bass amp
• Improves productivity while expanding creative options
• Original reamp circuit designed by John Cuniberti
• Easy-to-use, plug-and-play passive design
100% Passive Design
'Made in the USA' transformer and circuitThe Radial Reamp JCR is the latest version of the original Reamp that was designed and patented by John Cuniberti. It features a 100% passive design with John's original custom wound 'Made in the USA' transformer and circuit.

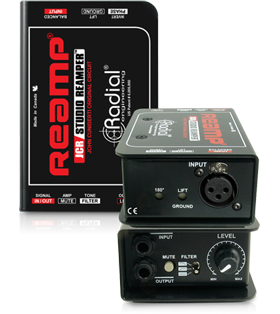

The latest Radial version features separate XLR and ¼" TRS input connectors, variable output level plus a three-position filter that lets you tame excessive highs, warm up the lows or simply bypass if you want to revert to the original circuit.
An on-board mute function has also been added to allow you to shut off the signal going to the amps when making adjustments or moving mics around the studio.
Useful Applications

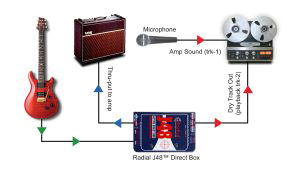

Reamping Part 1Reamping usually starts by recording a dry clean track. The Radial J48 is an excellent choice for this as it presents the guitar with an ideal impedance for natural tone.

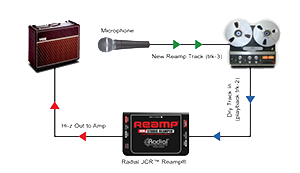

Reamping Part 2Once the dry track is recorded, send it back to the Reamp JCR where it can feed a guitar or bass amplifier. Mic the amp to capture the new tone. Move the mic around to find the sweet spot.
Adding PedalsTake things one step further by introducing effects pedals into the mix. Try a wah pedal on kick drum; envelope on snare; distortion on a vocal track. Let your imagination run free!
Radial Engineering - Reamping: Exploring the Differences
The Tech Spec
Features | Specification | Audio circuit type | Passive, transformer isolated |
---|---|
Frequency response | 20Hz ~ 20kHz (+0dB/-1dB) |
Dynamic range | 140dB |
Total harmonic distortion | 0.001% @ 1kHz/0dBu input |
Intermodulation Distortion | 0.0025% @ 1kHz/-10dB input |
Phase Deviation | 2º @ 100Hz; 0º @ 800Hz |
Input Impedance | 1800 Ohms |
Output Impedance | 4.8k Ohms |
Common Mode Rejection Ratio | -55dB @ 55Hz |
Noise | -115dBu |
Maximum Input | +26dBu |
Input Connectors | 1/4" TRS, XLR |
Output Connectors | 1/4" unbalanced |
Construction | 14-gauge steel chassis & outer shell |
Size (L x W x D) | 3.3" x 5.0" x 2" (84 x 127 x 48mm) |
Weight | 1.32lb (600g) |
Power | Passive, no power required |
