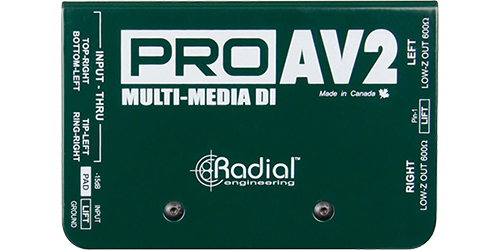

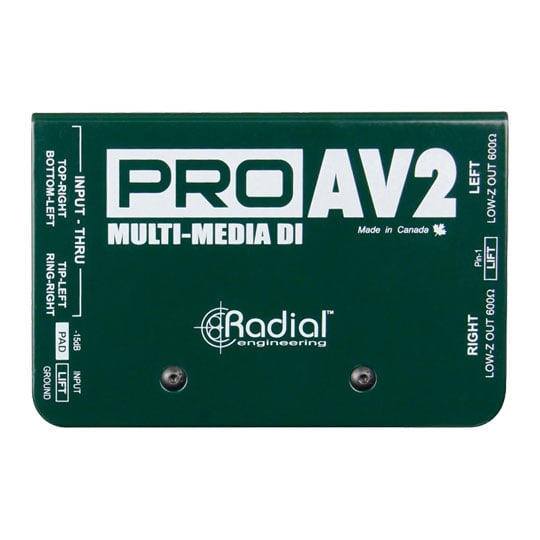

Radial ProAV2 Stereo Multimedia Direct Box
Radial - ProAV2 Stereo Passive Multimedia Direct Box, 3.5mm Stereo Input Jack and Dual 1/4" and RCA Connectors
Email me when the availability or price changes
Stereo Multimedia Direct Box
Radial - ProAV2
Connect any device to the PA systemThe Radial ProAV2 is a stereo passive direct box designed for audio-video integrators and technicians, with a range of input connector options to easily interface with a wide variety of audio equipment. The ProAV2 is an indispensable device for live sound engineers and audio-video technicians alike, with the ability to seamlessly interface nearly any device with a pro audio system.

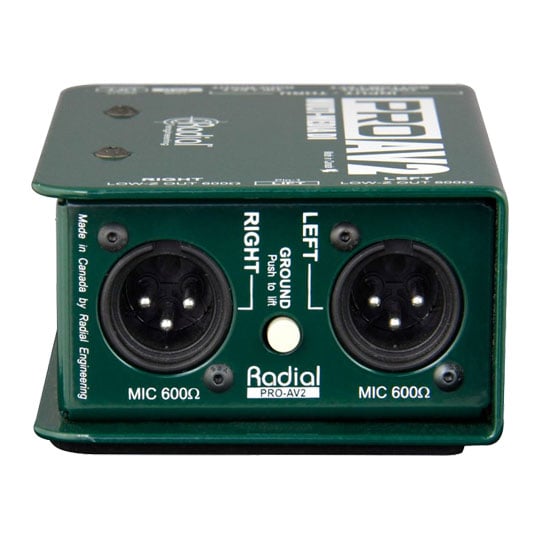

A 3.5mm stereo input jack and dual 1/4" and RCA connectors ensure that you won't ever be searching around for adaptor cables, while ultra-quiet performance with transformer isolation helps eliminate hum and buzz from ground loops. The ProAV2 maintains stereo separation and exhibits linear frequency response from 20Hz to 20kHz, with balanced mic-level XLR outputs that allow you to send signals through a multichannel audio snake on stage or into two channels of a mixing console.
At a glance
• Versatile stereo direct box for multimedia applications
• Transformer isolation eliminates hum and buzz
• Handles huge transients without distortion
• Easy to use, ultra-quiet passive design
The Tech Spec
| Features | Specification | Audio circuit type | Passive, transformer based |
|---|---|
| Transformer | Eclipse ET-DB2, 12:1 ratio |
| Number of channels | Dual channel (stereo) |
| Frequency response | 20Hz ~ 18.5KHz (± 0.2dB) |
| Dynamic range | 128dB |
| Total harmonic distortion | 0.01% from 20Hz~20kHz @-10dB |
| Phase Deviation | 1° @ 100Hz; 8° @ 20Hz |
| Input Impedance | 140k Ohms, unbalanced |
| Output Impedance | 150 Ohms, balanced |
| Maximum Input | +18dB @ 20Hz |
| Ground lift | Yes |
| Input Connectors | 1/4", RCA, 3.5mm TRS |
| Output Connectors | XLR |
| Construction | 14-gauge steel chassis & shell |
| Power | Passive, no power required |
| Conditions | For use in dry locations only between 5°C and 40°C |
| Size (L x W x D) | 3.25” x 5” x 1.875” |
| Weight | 0.82kg 1.8lbs |
