PowerColor AMD Radeon RX 6800 XT Red Dragon 16GB Graphics Card
PowerColor Radeon RX 6800 XT Red Dragon 16GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 4608 Streams, 2015MHz, 2250MHz
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
PowerColor AMD RX 6800 XT Red Dragon RDNA2 Graphics Card
Red Dragon Empowers You to Unleash the Power PowerColor Red Dragon AMD Radeon™ RX 6800 XT is armed with a new triple fan design, 310mm cooler with 7X6Φheatpipes, and a large copper base improves heat transfer and dissipation from the GPU and the VRAMs providing highly efficient heat dissipation solution. And it is also equipped with a 12+2 phase VRM with DrMOS, high polymer capacitors, and two 8-pin PCI-E connectors for implementing better performance. PowerColor Red Dragon RX 6800 XT features the same new cooling-fan design as PowerColor Red Devil RX6800XT with 2 X 100mm and 1 X 90mm triple fans to enhance the airflow and air pressure for keeping the card in the best cooling condition. Besides, Red Dragon RX 6800 XT equips Dual BIOS, stylish back plate, and shiny LED light. You will have upgraded gaming experiences with the new Red Dragon RX 6800 XT.
Take a Look Inside
1. Metal BackplateThe metal back plate strengthens and protects the card and offers better heat dissipation.
2.Dual BiosChoose the BIOS fits your need: better overclocking or silent operation
3. Stronger ComponentsRed Dragon is armed with stronger components: a 12+2 phases VRM guarantees better overclocking and stability.
4.Cooler7X6Φ heatpipes efficiently dissipate the heat and make your card cool.
5. Triple FanThe 2X 100mm and 1X 90mm optimized static pressure fan design provides more air flow and longer circulation.
6. RGB Featuring the Red LED brighten your Red Dragon in the dark.
Exclusive New Cooling-Fan Design

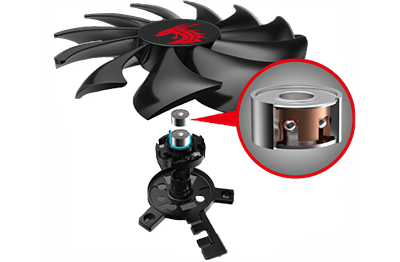

New Blades, New Bearings, New TechnologyPowerColor have raised the bar when it comes to their cooling solution, boasting all-new angled blades to increase airflow up to a whopping 60%, new dual-bearing technology increases fan longevity by up to 4x and mute fan technology intelligently turns off your fans when below 60° to give you silent gaming during low demand.
Keep it Quiet!
0DB - Silent Gaming Mute Fan Technology intelligently turns of the fan below 60°C providing silent gaming when under a medium or decreased load, once the load increases and the temperature rises above 60°C under a high load the fans will start to spin increasing the longevity of the fans and also keeping your PC is imperative to climbing up those ranking ladders.
Platinum Power Kit
DrMos Powercolor are bringing a highly efficient power module to their RX5800XT Red Dragon GPU featuring a digital controller and super capacitors for improved reliability, superior power efficiency, better thermal protection and a 12+2 phase VRM guarantees better overclocking and stability.
Just a Simple Flick of a Switch
Dual-Bios With the flip of a switch, you can choose OC Mode which allows you to easily handle top-of-the-line games by pushing the limit of the power and performance, while Silent Mode provides an excellent quiet-gaming experience.
A Breakthrough Gaming Architecture
RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
Contrast Adaptive SharpeningOFF
Contrast Adaptive SharpeningON
Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
Shading Rate OverlayOFF
Shading Rate OverlayON
Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.
Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.
Screen Space ReflectionsOFF
Screen Space ReflectionsON
High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.
High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.
High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.
AMD Graphics Card Specifications
|AMD Radeon RX Card Specifications|
|Model||RX 6900 XT||RX 6800 XT||RX 6800||RX 6700 XT||RX 5700 XT||RX 5600 XT||RX 5500 XT||RX 580||RX 570|
|Architecture||RDNA2||RDNA2||RDNA2||RDNA2||RDNA||RDNA||RDNA||GCN 4th||GCN 4th|
|GPU||Big Navi||Big Navi||Big Navi||Big Navi||Navi 10||Navi 10||Navi 14||Polaris XTX||Polaris 20 Pro|
|Reference Base Clock||2,015 MHz||2,015 MHz||1,815 MHz||2,321 MHz||1,605 MHz||1,420 MHz||1,607 MHz||1,257 MHz||1,168 MHz|
|Reference Boost Clock||2,250MHz||2,250 MHz||2,105 MHz||2,581 MHz||1,905 MHz||1,620 MHz||1,845 MHz||1,340 MHz||1,244 MHz|
|Memory||16GB GDDR6||16GB GDDR6||16GB GDDR6||12GB GDDR6||8GB GDDR6||6GB GDDR6||4GB/8GB GDDR6||4GB/8GB GDDR5||4GB/8GB GDDR5|
|Chipset||Radeon RX 6800 XT|
|Manufacturing Process||7 nm|
|Cores & Clocks|
|Core Clock||2015, 2065 (OC Mode) MHz|
|Boost Clock||2250, 2310 (OC Mode) MHz|
|Video Memory (VRAM)|
|Memory Clock||16000 MHz|
|Memory Speed (Effective with DDR)|
|Memory Bus||256 Bit|
|Memory Bandwidth||512 GB/s|
|Memory Data Rate|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||PowerColor Red Dragon Cooler|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|AMD CrossFire Support|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™|
|Microsoft DirectX Support||12 API|
|Max. Concurrent Displays||4 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Peak Half Precision Compute Performance (FP16)||41.47 TFLOPs|
|Peak Single Precision Compute Performance (FP32)||20.74 TFLOPs|
|Peak Double Precision Compute Performance (FP64)|
|Power & Thermals|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||750 W|
|Maximum GPU Temperature|
|Low Profile Support||N/A|
|Dimensions||310 x 135 x 54 mm|
|Model Number||AXRX 6800XT 16GBD6-3DHR/OC|
