End Of Life Sale

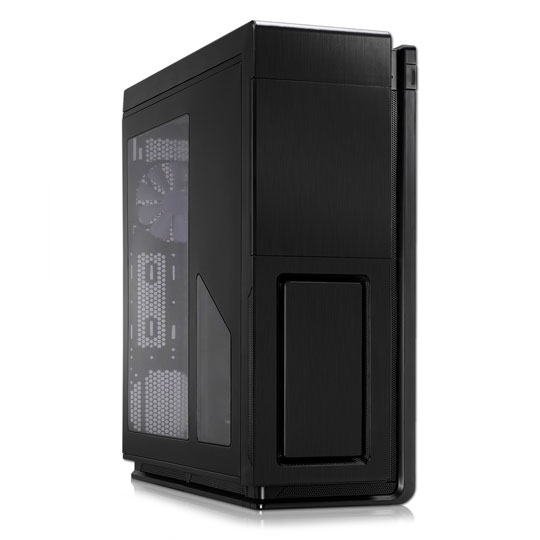

Phanteks Enthoo Primo PC Case

Phanteks Enthoo Primo Full Tower Performance Case with Side Window E-ATX/ATX w/o PSU

Phanteks
Scan code: LN52701 Manufacturer code: PH-ES813P_BL Request call
End Of Life
High End
Suggested alternatives
Product Overview We have the Revision 2 which has minor updates and mainly to the Clips on the HDD Cage and the Front Filter Mech'.

Phanteks’ Enthoo Primo features a unique PSU thermally isolated location, multifunctional cable/reservoir cover, exclusive brackets, and massive cooling potential. Phanteks’ new case features a shifted design which allows for the unique PSU configuration. The PSU is thermally isolated, creating cooler temperatures within the case. With the PSU located in the back of the case, this allows for a cleaner look and better cable management.. Exclusive brackets that makes everything a breeze to install.

Reservoir bracket that can be use as a cable cover with the modular cover on or as a reservoir bracket with the pre-drilled holes when cover is off. Enthoo Primo includes a pump bracket that supports many different pumps, side radiator bracket and bottom radiator bracket for easy installation.

Enthoo Primo includes 1 x 140mm fan on top, 2 x140mm LED fans in front, 1 x 140mm fan in the rear, and 1 x 140mm fan on the bottom. Abililty to upgrade to additonal fans are possible. All fans included are Phanteks’ new redesigned and better performing PH-F140SP. Phanteks’ Enthoo Primo, unleash unlimited possibilities.

MAX cooler height: 5 inches. In order to install a cooler over 420mm you must remove the drive bays. Features Appearance:
• Clean and elegant design that can be recognized by the refined aluminum front and top panels. Controllable LED lighting (LED strip and Fan LED). Polished chamfers that subtly accentuate the intake and exhaust areas.
• Stealth interior: hidden PSU / hidden HDD / hidden cables and grommets (modular cable cover).

Cooling:
• Extreme cooling capacity, providing up to 16 different fan mount locations (120mm / 140mm)
• 5 included Phanteks’ premium fans PH-F140SP
• The PWM hub makes it possible to control all the connected fans (also 3-pin fans) with PWM function through 1 PWM connector and create a better cable management.
• Thermally isolated PSU keeps the radiant heat from other critical components, reveals an optimal bottom air intake and hides the cables from blocking the airflow.
• Extensive water cooling support. Provides up to 5 different installation areas for slim and thick radiators varying from single to quad (120mm and 140mm form factors). Clearance for push-pull fan configurations.
• Innovative liquid cooling mounting systems: radiator brackets for easy installation (bottom and side), cable cover can be transformed into a reservoir bracket with pre-drilled mounting holes and an universal pump bracket with vibration dampening function

Functionality:
• Dual repositionable and removable HDD cages (support up to 6 HDD’s) for more installation flexibility or unrestricted airflow
• Closed HDD panel strengthens the chassis’ rigidity, even when both HDD cages are removed.
• Removable Drop-n-Lock Doublestack SSD brackets that can be installed on 3 different locations. (2 brackets incl.)
• Removable front and top covers for easy installation of cooling components and easy dust filter removal.
• Other removable dust filters are located in the bottom (2x) and side panel (2x).
• Pre-installed cable management tools behind the motherboard tray that can be fastened and released.
• 2x USB 3.0, 2x USB 2.0, microphone, 3.5mm audio jack, LED switch
• Support up to 2 PSU’s


Data Sheet

http://www.bit-tech.net/hardware/cases/2013/12/20/phanteks-enthoo-primo-review/4
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
scan
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Reviews
Rated 4.2 out of 5 by 13 reviewers.
Rated 5 out of 5 by Awesome Case A very nice case. It has a ton of room, If you like to have a lot of room for your rig then this is the case you're looking for. The access to the dust proof filters is just perfect making it really easy to clean. It also looks awesome. The only negative really is that it came with the light strip popping out and it doesn't quite sit tight, This is most likely fixable I just haven't gotten round to it yet. Pros - Too many features to count - Perfect for water cooling - Comes with a fan controller extension Cons - The top dust proof filter sits a bit tight and where my radiator sits it kind of bends up a tiny bit when having a push/pull configuration. - The dust proof filters get a grey tint after a while. - Side access panel is a bit too tight and is a struggle to put on. 03 January 2016
Rated 5 out of 5 by Perfect case, plenty of space, nice appearance.. I bought this to accommodate my new E-ATX motherboard and wanted the extra room for a future custom water cooling loop. This case has plenty of space for anything and everything you could put in here. This is my first Phanteks case and I was not disappointed, build quality is fantastic, well thought out for cable management, great tool-less disc drive bays, includes additional accessories for mounting reservoirs and radiators. I can't find anything negative to say about this case. 02 January 2016
Rated 2 out of 5 by case broken can not write a review on this case at this time because when I got it the front panel was broken I got the front panel a week later to find out that both the door clips were broken as well. Now I am waiting on phanteks to send 2 new ones 06 August 2015
Rated 5 out of 5 A Jaw Dropping, Flawless Piece of Kit I researched and researched for my new build. I wanted something with lots of space for fans for cooling and fairly idiot proof. I was absolutely stunned at the quality of this case. It almost hands everything to you on a plate in terms of assembling a system yourself. The instructions are wonderfully detailed. I couldn't recommend it highly enough. 17 February 2015
Rated 5 out of 5 by Phanteks Raises The Bar Solidly built with fantastic cooling, removable drive cages are great and allow for a clearer airflow path, although not needed due to the extra fan intakes at the bottom of the case, SSD mounts are also a great feature, as is the psu cover. Have been through many mid and full towers over my pc building years and there always seems to be some negative sacrifice - cooling vs storage vs looks- . This case doesn't seem to sacrifice anything! Also the supplied 5 fans are top notch quality even to rival noctua. Cracking case and really good value, keep em coming Phanteks. 01 January 2015
Rated 5 out of 5 by A game changer! I bought this to replace a Corsair 600t case. The build quality is noticeably better on this case, and it feels much nicer to handle. It is better than the other corsair cases I have seen (750D, air 540 and 760t) The included accessories are great and the Velcro cable management straps are a cinch to use. Everything fitted easily and I have tons of room to spare. The cables are sort of pre organised for you, but this causes big bunches near the 24pin area which is not good as there isn't a huge amount of space at the back. The fan controller seems to work ok, but I will be changing it when I can as I want more control than it offers. Price was very good for the quality and what you get as I bought it in the today only deals. Even he usual price is not bad. Move over corsair, phanteks has beaten you on their first try! 25 December 2014
Rated 3 out of 5 by front will not stay on the front will not stay on were the fans are so I put a zip tie on it inside to hold it on 16 December 2014
Rated 5 out of 5 by Amazing Excellent product, the YouTube video reviews show it in a very positive light, and it is truly and good as they say. Things to note is that no one mentioned how much of a tight fit it is to squeeze a 480mm radiator in the bottom and the fact that to be able to take advantage of the 11 fans the built in fan controller can handle, you need to buy additional splitters. That's just me being picky, everything else about this case is amazing. 07 August 2014
