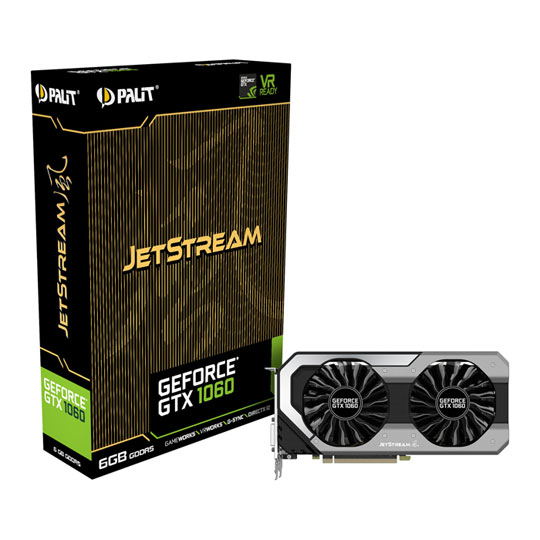

Palit JetStream GeForce GTX 1060 Gaming GPU
JetStream is Palit’s advanced graphics card design that is featured on their enhanced 1060 cards. It boasts a more efficient cooling system and a unique design with an LED that brings some added style to your PC. With a reduction in noise, an increase in overclocking performance and enhanced cooling the JetStream 1060 is a gaming card to be proud of. Running next-gen games easily and without issues it is a great choice for any gamer.
The GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies that make it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond. #GameReady

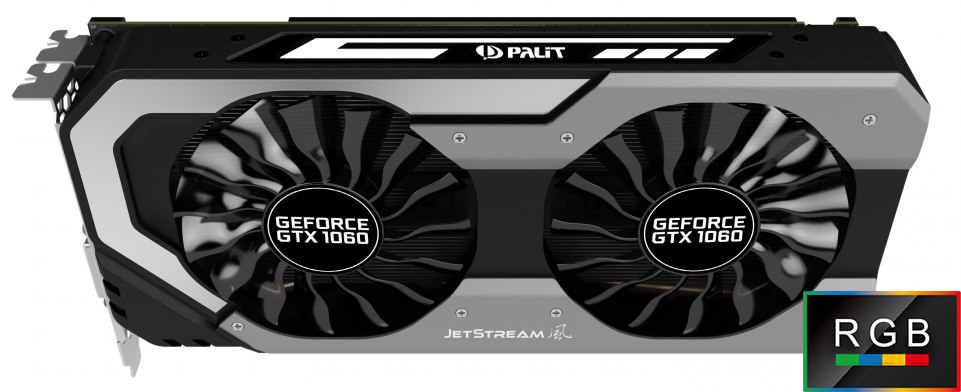

1060 Ambient Light Styling
Fancy LED lighting on the 1060 Palit JetStream’s thermal solution provides ambient lighting, further immersing gamers into the gaming worlds - give it a glow.
Graphics Card Cooling When Required
Palit tech keeps this 1060 gaming card silent while you are experiencing multimedia applications and general workload. The operating fans only occurs while working on heavier loading such as gaming or when this Palit 1060 GPU temperature surpasses 50°C.
GTX 1060 Fan Power
A Dual Fan design offers double the cooling performance, and combined with the Smart Fans, heat is effectively drawn away from hot spots of the GTX 1060.
Turbo Palit GPU Fans
Inspired by the power of jet engines, the TurboFan Blade is designed to improve cooling performance by generating a powerful air stream and air pressure to the GPU .
Pushing the Palit GTX 1060 Further
DrMOS, originally only available for high-end server CPUs but is now available in all its glory in the next generation of Palit GTX 1060 graphics cards. DrMOS offers high current circuits, low noise operation, and effective reduction of heat generating to 1060 GPU's.

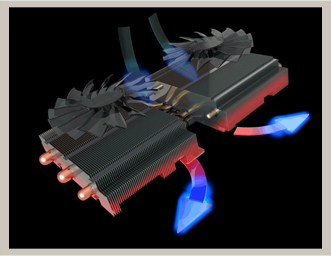

Improved 1060 Card Cooling
The 1060 JetStream graphics card features dual fans that rotate in opposite ditrections. This Smart Fan system roatates the adjacent fans in different directions to reduce airflow conflicts in the 1060, which effectively improves the overall cooling performance.
Enhanced JetStream 1060 Stability
The 8 phases for those 2560 cores within the 1060 provides unlimited power and minimized current loading for each phase to stabilize the voltage level. This means the overall efficiency of this 1060 from Palit can be improved, the choke noise and EMI noise can also be reduced, for an overall more immersive experience.

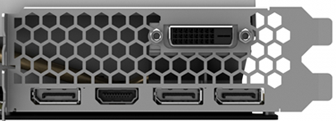

Helping Increase GPU Cooling Efficiency
The design of honeycomb bracket increases the JetStream 1060’s airflow by up to 15%, allowing the heat generated from GPU to be exhausted via the 1060’s honeycomb design bracket. This in-turn enables a more efficient cooling effect.
JetStream 1060 Eradicating Errors
If the JetStream GTX 1060 GPU comes across an error in one of the BIOS programs then it is designed to activate the dual BIOS program automatically. When the program kicks in it’ll allow the Palit 1060 graphics card to be functional again in the event of a system failure.

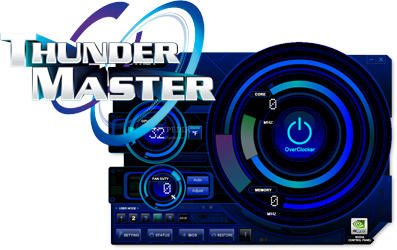

Take Control of the Palit GTX 1060
ThunderMaster is a utility program, used with the JetStream 1060 graphics card under windows. It provides you with the ability to boost this GTX 1060 card and to monitor the GPU information - which will only function correctly in conjunction with your new graphics adapter.
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1060|
|Manufacturing process||16 nm|
|Core Clock||1506 MHz|
|Boost Clock||1708 MHz|
|Memory Clock||8000 MHz|
|Memory Bus||192 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||Palit Dual Fan|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||Not Supported|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power||120W|
|Graphics Card Power Connectors||1 x 6-pin PCIe|
|Minimum Recommended PSU||400 W|
|Maximum GPU Temperature|
|Dimensions||123 x 248 mm|
