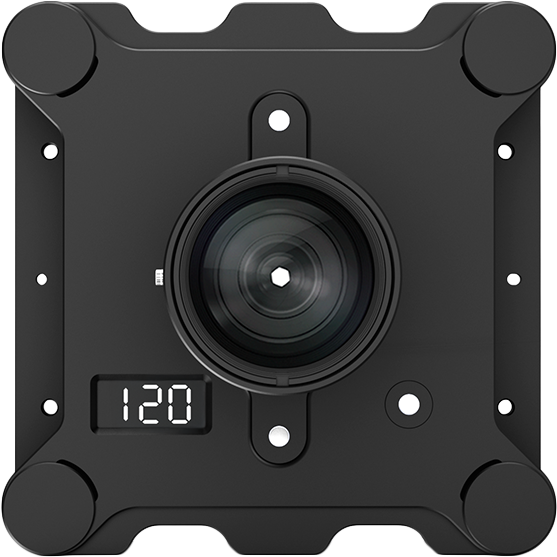

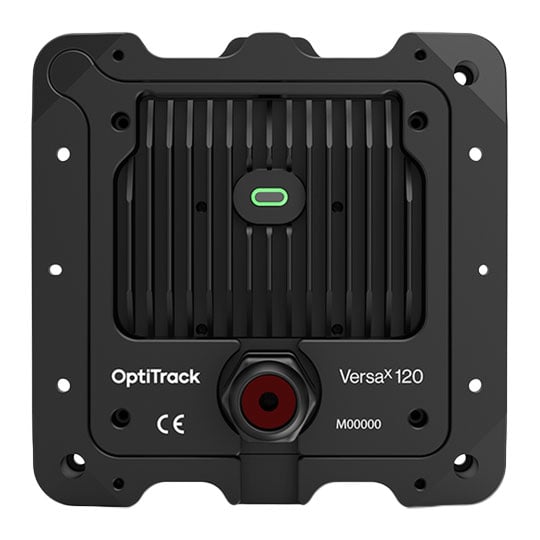

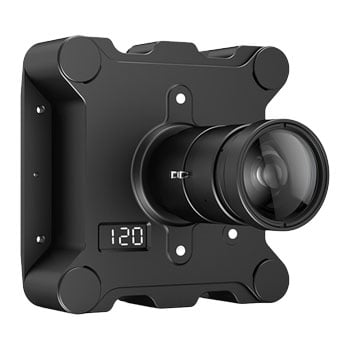

OptiTrack - 'VersaX 120'
The ultimate modular motion capture cameraThe OptiTrack VersaX 120 is a cutting-edge, modular motion capture camera engineered for uncompromising durability and adaptability in any environment, from industrial settings to outdoor solutions. Rated IP66 for water and dust resistance, it thrives in demanding conditions while offering a range of mounting and customisation options to suit diverse applications. With high-resolution capabilities, advanced synchronisation features, and seamless integration with OptiTrack’s Motive software, the VersaX 120 delivers precise, high-fidelity tracking for everything from biomechanics to virtual production.
12.0 MPResolution
+/- 0.10mm3D Accuracy
300 FPSNative Frame Rate
1000 FPSMax Frame Rate

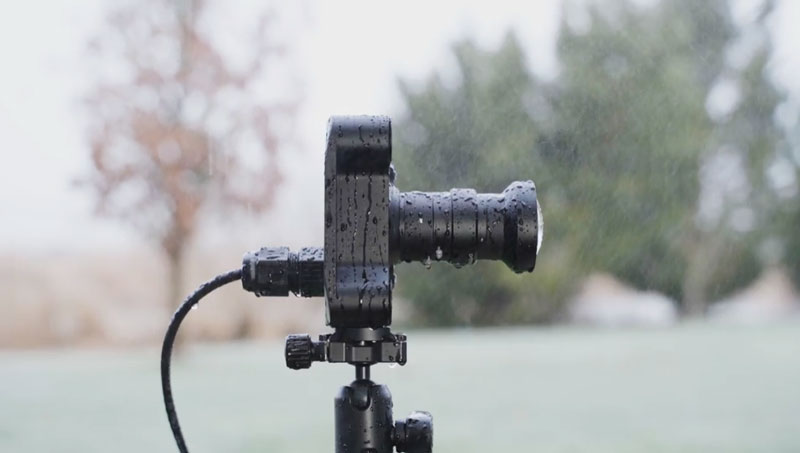

Water And Dust Resistant
IP66-rated designEngineered for durability, the Versa thrives in tough conditions. Its IP66-rated design protects against dust and water, making it ideal for both outdoor and industrial applications.

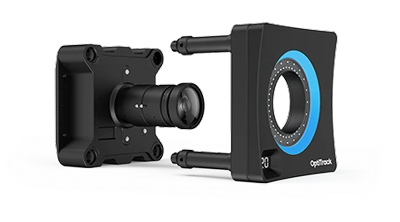

Built To Evolve With You
expand its capabilitiesStart with the core setup and expand its capabilities by adding the optional ring light as your projects grow. This flexible design allows you to take on new projects or expand capabilities without replacing the entire system.

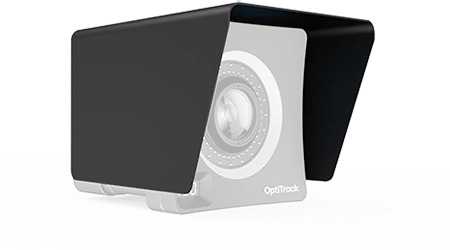

Add on more accessoriesComplete your Versa setup with customizable accessories, including multiple lens choices, ring light options, and a protective weather cover to keep water off of your lens. Build the ideal configuration to maximize performance and durability for any application.

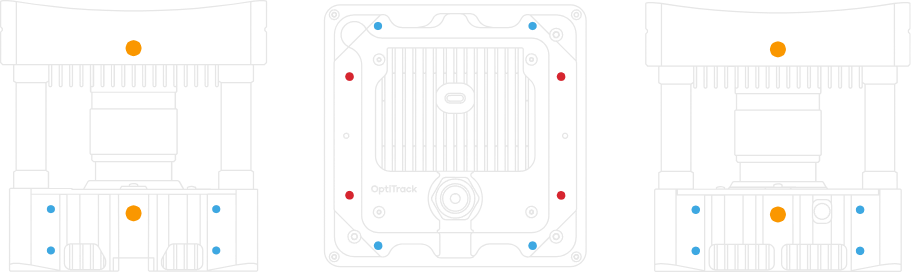

So Many Mounting Options
1/4-20 Mount
M4x0.7 Mount
M5x0.8 Mount
Flexible Mounting optionsThe VersaX provides flexibility with three mounting options: 1/4-20, M4x0.7, and M5x0.8, making it adaptable to a wide range of setups.

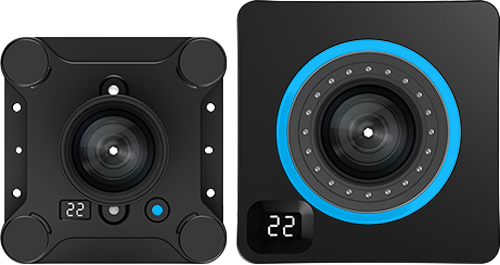

On-camera Status Indicator
definable colour LED indicator ringsVersaX cameras can keep users informed with definable colour LED indicator rings surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes colour. Have your own idea? Simple software controls help you make it so.

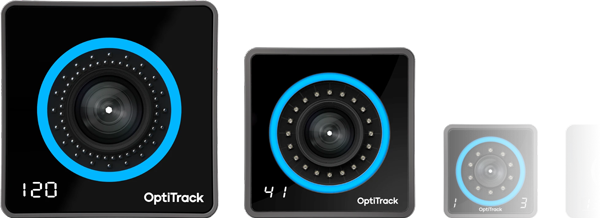

Mix And Match Cameras
optimal infrared configurationSystems can pair VersaX cameras with other Primex or Prime Colour cameras to create the optimal infrared configuration for any use case and deliver the highest 3D tracking accuracy to any environment.
VersaX Equals Precision
designed and manufactured in-houseVersaX cameras are designed and manufactured in-house at OptiTrack’s headquarters in Oregon to ensure our exacting quality standards are met. We design lenses with low-distortion and true 10-bit grayscale depth sensor processing, which reduces noise and improves precision—resulting in perfectly crisp images, better centroids and better 3D accuracy.
Full Resolution Greyscale Reference Video
reference videoAll Primex cameras can be used as a reference video source - with synchronised, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.

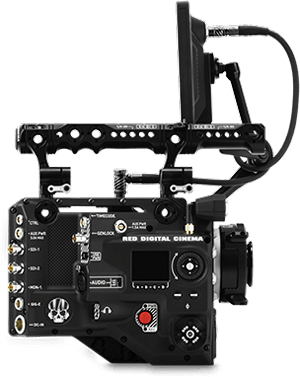

External Sync In/Out, Genlock, And Time Code
eSync 2Synchronise any Prime and Primex cameras to any signal or source with the eSync 2, with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources, including a professional camera’s Genlock signal, where record and other event triggering can be managed from general-purpose inputs and software commands.
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronisation. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customisation within the timing protocols.

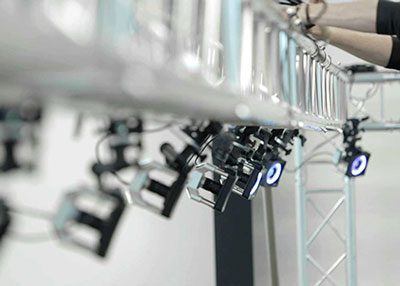

Expert System Configuration For Any Space
expertsOptiTrack has built over 30,000 tracking systems in areas of all shapes and sizes. Our experts can help guide you on the most economical and suitable tracking system for your needs—for today and the future.
It's More Than Just Cameras
analyse tracking dataVersaX cameras work hand-in-hand with OptiTrack’s Motive 3D motion capture software, featuring Trained Markersets, Continuous Calibration, Skeletal Solver and more. The VersaX cameras and Motive enable users to see and analyse tracking data to inform everything from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.

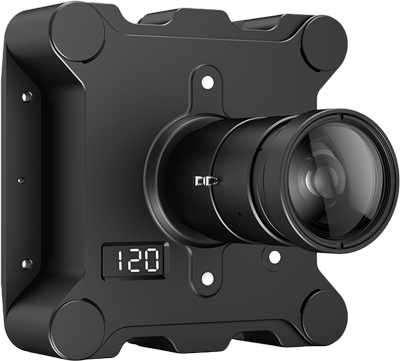

OEM And Computer Vision Integration
OEM trackingIncorporate Versax 120 cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronisation and all 3D data.
