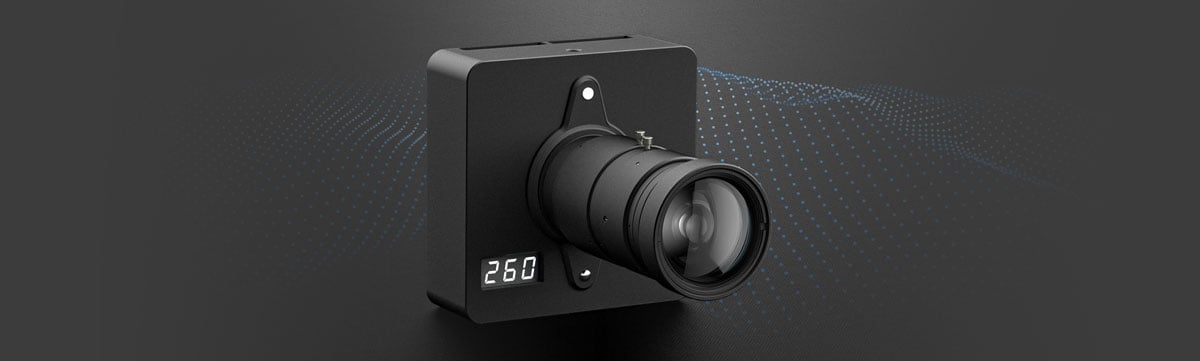

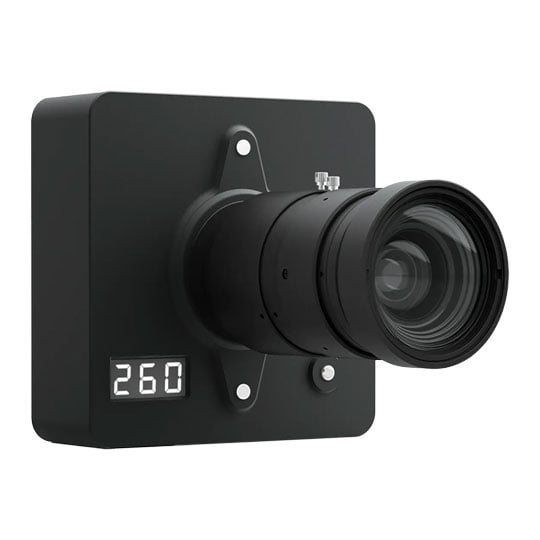

OptiTrack Slimx 260
Flagship Active TrackingOptiTrack Slimx 260 is a high-performance motion capture camera engineered for large-volume tracking, delivering 26 MP resolution, ±0.05 mm 3D accuracy, and a native 150 FPS frame rate for exceptionally precise results. Built for demanding applications such as robotics, simulation, training, and virtual production, the Slimx 260 combines long-range active tracking, a global shutter, and a low-profile design to capture faster movement, smaller markers, and more usable data across expansive spaces.
26.0 MPResolution
+/- 0.05 mm3D Accuracy
150 FPSNative Frame Rate
1000 FPSMax Frame Rate
Long Range Active Performance
26 MP ImagerSlimx 260 is engineered for an extreme active marker range, enabling huge tracking volumes for training and simulation, robotics, and large stages. At long distances, its 26 MP imager puts more pixels on every active marker, improving stability when tracking smaller objects or dense multi-marker constellations across the far edges of your space.

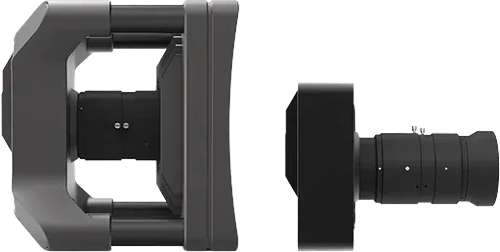

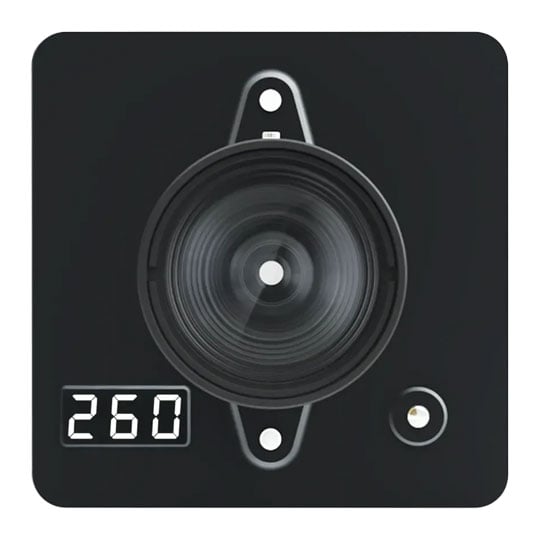

Small footprint, lightweightSlimx 260’s ultra-shallow profile, low weight, and invisible IR illumination make it ideal for discreet installations—like location-based VR, training environments, and large stages where you want maximum tracking performance without visual clutter.
Optitracks Highest-Resolution CameraSlimx 260 puts more pixels on every marker—so you can track smaller markers, packed closer together, from farther away.
Optitracks Highest-Resolution CameraSlimx 260 puts more pixels on every marker—so you can track smaller markers, packed closer together, from farther away.
Optitracks Highest-Resolution CameraSlimx 260 puts more pixels on every marker—so you can track smaller markers, packed closer together, from farther away.
"Fast Glass" Lens Engineering

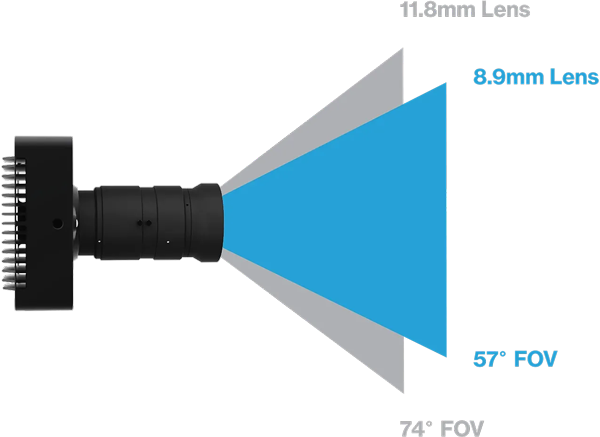

Lens OptionsWe custom design our own super low distortion, “fast glass” lenses for optimal marker tracking. The Slimx 260’s lenses feature a wide-band anti-reflective coating for greater light transmission, larger volumes, and more precision 3D data.
For wider volumes that demand elite accuracy, the Slimx 260 is also available with a 74° x 74° 8.9mm wide-view lens. The additional Field of View lets users deploy fewer cameras to capture movement in wider areas.
On-Camera Status Indicator

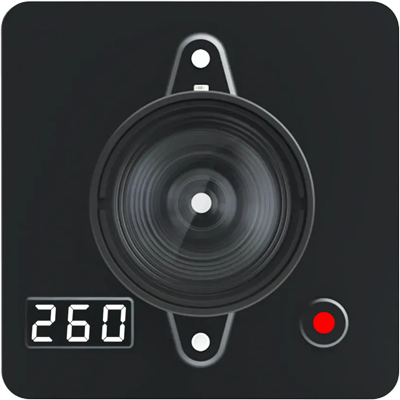

LED IndicatorSlimx cameras can keep users informed with definable colour LED indicator. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes colour. Have your own idea? Simple software controls help you make it so.
High Frame-Rate Capture
Native CaptureSlimx 260 delivers 150 FPS native capture with an image-stopping global shutter—ideal when your application demands clean, precise tracking during fast, high-acceleration motion.
Industry-Leading Precision

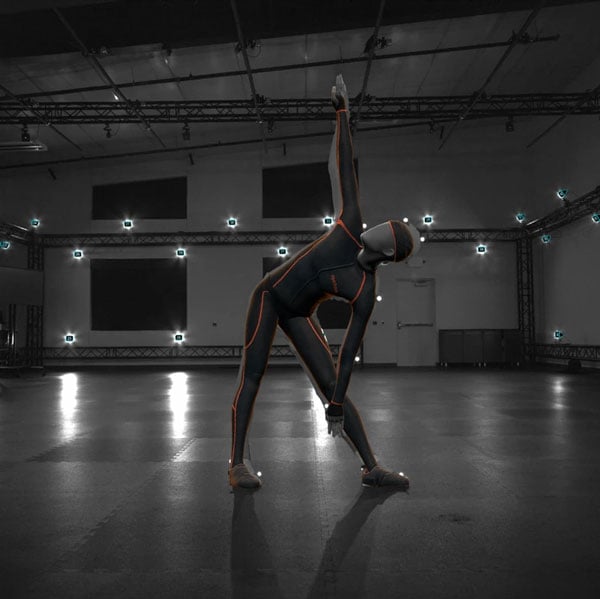

OptiTrack's 3D precision is the best in the business, outperforming even the highest-resolution competition—which is why Activision selected OptiTrack to build the largest and most accurate performance capture stage in existence.
Powerful On-Board Image Processing

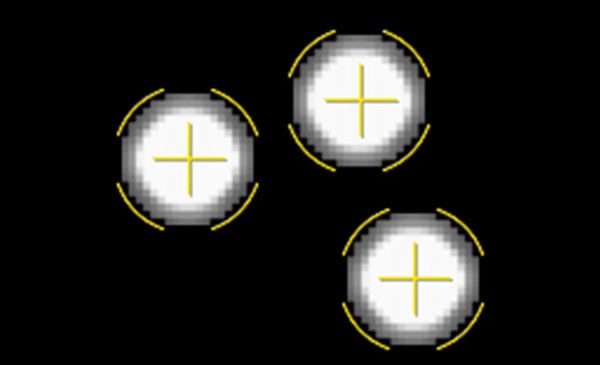

Integrated Image ProcessingAll OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.
Slimx is Feature Packed
Greyscale Reference VideoAll Slimx cameras can be used as a reference video source - with synchronised, calibrated overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.

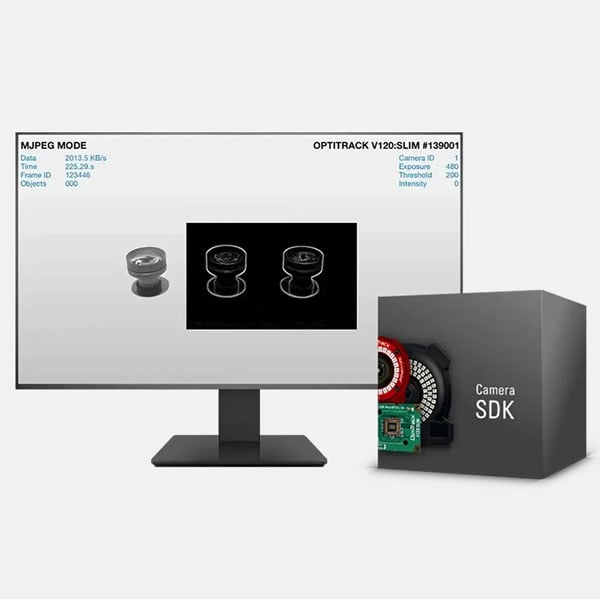

OEM IntegrationIncorporate Slimx cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
eSync 2With the eSync 2, cameras sync to nearly any source, including Genlock and SMPTE Time Code, for precise, flexible hardware synchronization. Trigger force plates, EMGs, and DAQs, or manage events through inputs and software commands, with full customization available via OptiTrack’s free, open SDK.
Mix and Match Cameras
Work Together SeamlesslyOptiTrack cameras work together seamlessly to build the perfect motion capture system for any use case.
Pure Precision

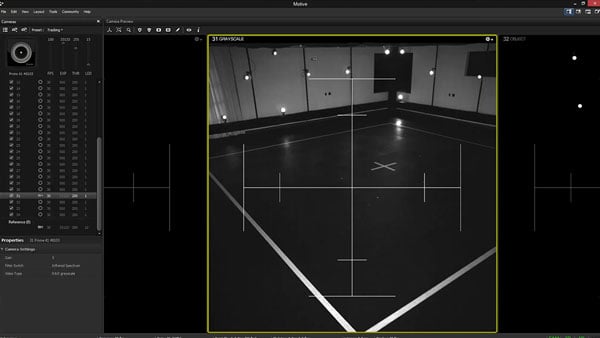

Easy Set-UpCompact, high-quality grayscale video enables image preview with multiple cameras, simultaneously—an indispensable tool for camera aiming and focusing during rig setup and calibration.
Zero DriftMotive calibrates automatically and continuously with data collected during normal use of the system. No longer does your calibration degrade over time with changing temperatures or challenging building movement—it is always a “fresh” calibration.

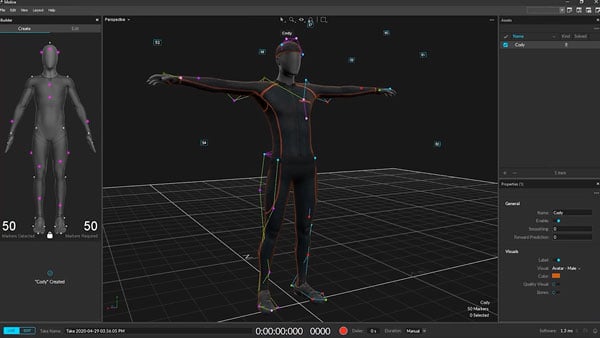

Seamless WorkflowOptiTrack’s Motive software delivers speed, precision, and ease of use, streamlining everything from calibration to real-time streaming, while tools like Aim Assist and auto-masking make even large system setups simple for one person.
