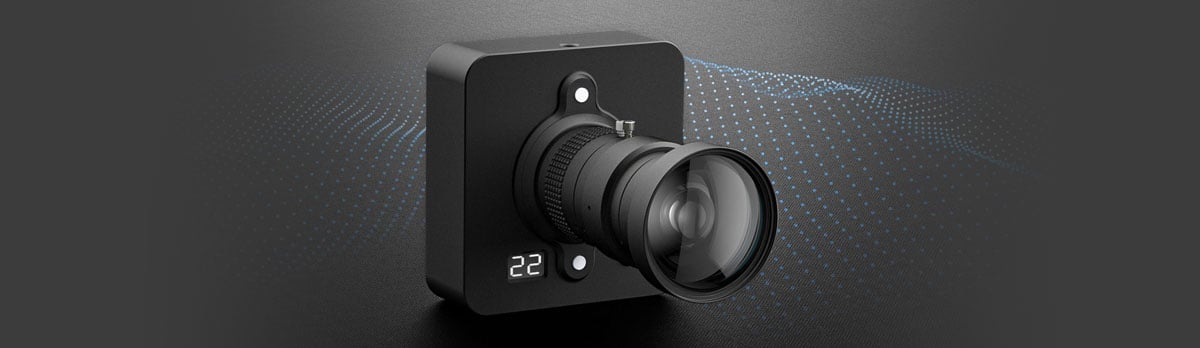

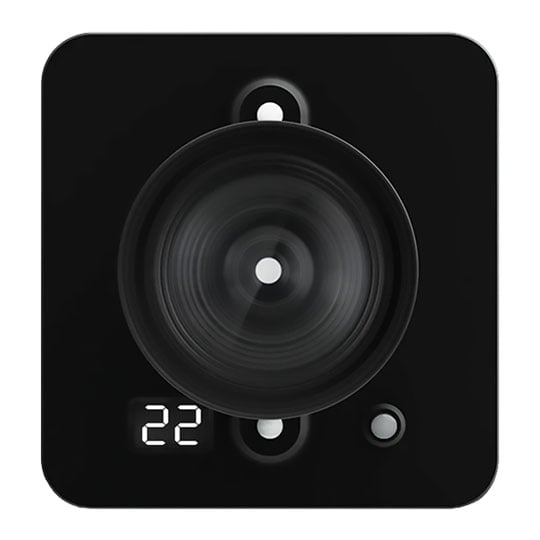

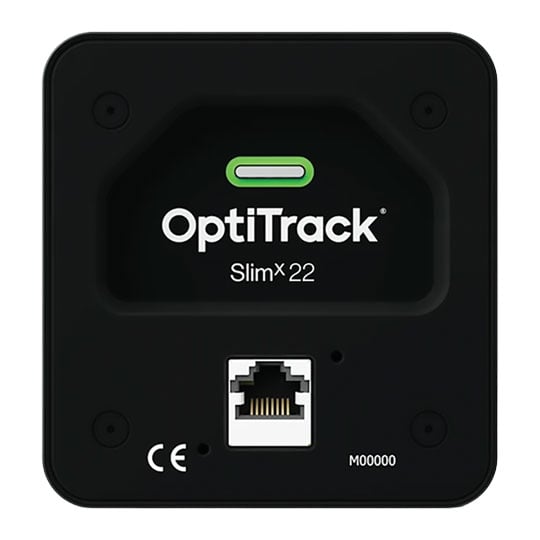

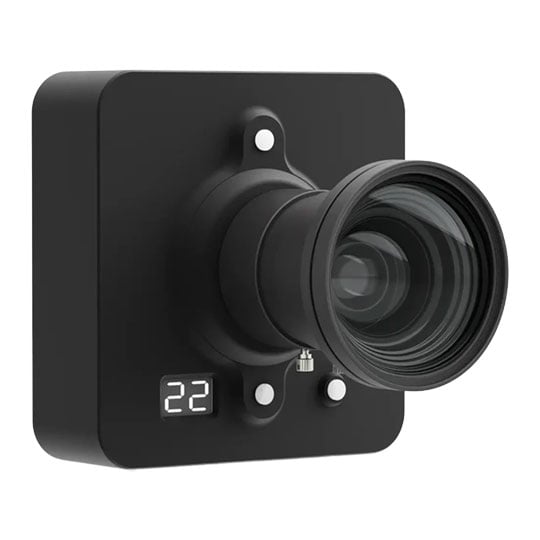

OptiTrack Slimx 22
Discreet Active TrackingOptiTrack Slimx 22 brings high-precision active tracking into a sleek, low-profile design built for discreet installations and expansive capture areas. With a wide field of view and long-range performance, it delivers the coverage, accuracy, and reliability needed for demanding motion capture workflows.
2.2 MPResolution
+/- 0.2 mm3D Accuracy
360 FPSNative Frame Rate
1000 FPSMax Frame Rate

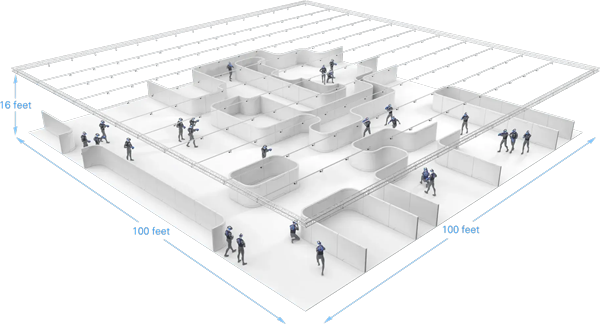

Incredible Range
Discrete Infrared WavelengthsThe Slimx22 has an active marker range of more than 98' (30m) with Active markers, all with discrete infrared wavelengths for 3D motion tracking in moderately-sized spaces.

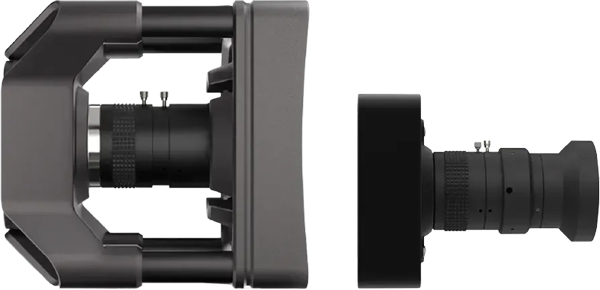

Small Footprint
LightweightThe Slimx 22's shallow profile, light weight and invisible IR illumination are perfect for applications which require a discreet tracking system such as location-based virtual reality and cinematic virtual production.

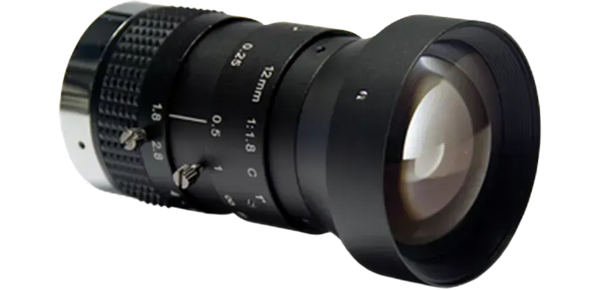

"Fast Glass" Lens EngineeringOptitrack custom design their own super low distortion, "fast glass" lenses for optimal marker tracking. The Slimx 22’s lenses feature a wide-band anti-reflective coating for greater light transmission, larger volumes, and more precision 3D data.

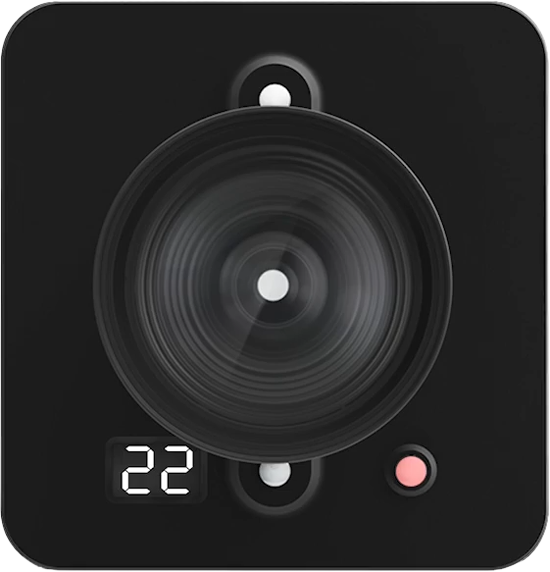

On-camera Status Indicator
LED Indicator RingsSlimx cameras can keep users informed with definable colour LED indicator rings surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes colour. Have your own idea? Simple software controls help you make it so.
Powerful On-Board Image Processing
Integrated Image ProcessingAll OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.
Industry-Leading Precision
OptiTrack's 3D precision is the best in the business, outperforming even the highest-resolution competition—which is why Activision selected OptiTrack to build the largest and most accurate performance capture stage in existence.
Slimx is Feature Packed
Greyscale Reference VideoAll Slimx cameras can be used as a reference video source - with synchronised, calibrated overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
OEM IntegrationIncorporate Slimx cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
eSync 2With the eSync 2, cameras sync to nearly any source, including Genlock and SMPTE Time Code, for precise, flexible hardware synchronization. Trigger force plates, EMGs, and DAQs, or manage events through inputs and software commands, with full customization available via OptiTrack’s free, open SDK.
Mix and Match Cameras
Work Together SeamlesslyOptiTrack cameras work together seamlessly to build the perfect motion capture system for any use case.
Pure Precision
Easy Set-UpCompact, high-quality grayscale video enables image preview with multiple cameras, simultaneously—an indispensable tool for camera aiming and focusing during rig setup and calibration.
Zero DriftMotive calibrates automatically and continuously with data collected during normal use of the system. No longer does your calibration degrade over time with changing temperatures or challenging building movement—it is always a “fresh” calibration.
Seamless WorkflowOptiTrack’s Motive software delivers speed, precision, and ease of use, streamlining everything from calibration to real-time streaming, while tools like Aim Assist and auto-masking make even large system setups simple for one person.
