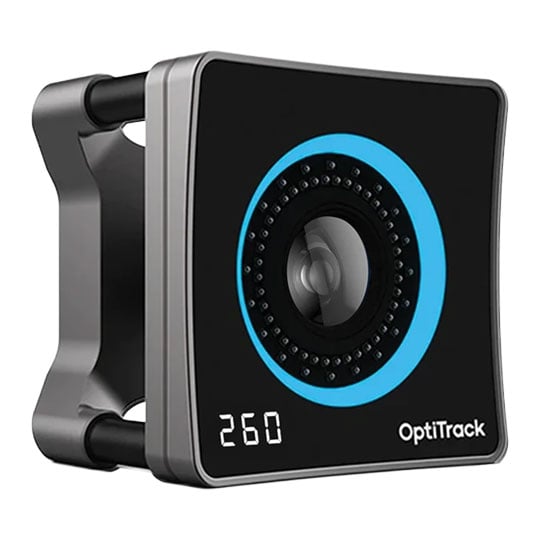

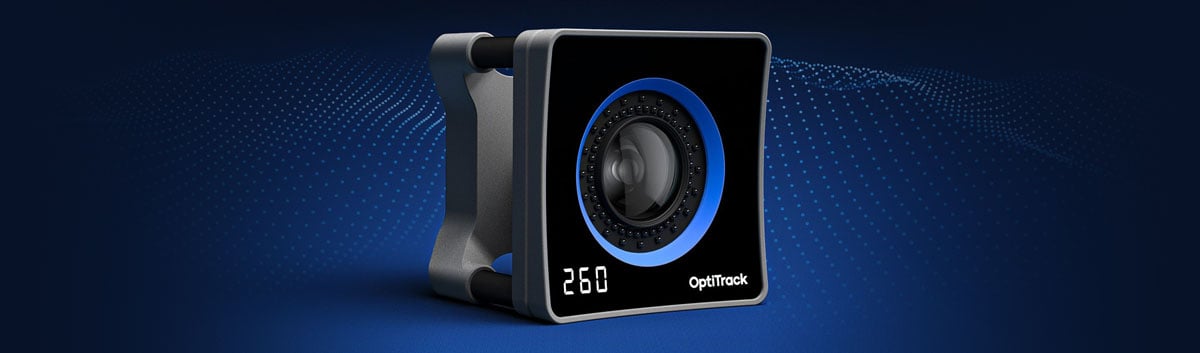

OptiTrack Primex 260
Industry-leading Motion Capture Camera for Large-volume TrackingOptiTrack PrimeX 260 is a high-performance motion capture camera built to deliver exceptional precision, stunning clarity, and dependable tracking across demanding large-volume applications. With a 26 MP sensor and ±0.050 mm 3D accuracy, it delivers the clarity needed for demanding motion capture, simulation, and research applications.
26 MPResolution
+/- 0.05 mm3D Accuracy
150 FPSNative Frame Rate
1000 FPSMax Frame Rate
Long Range Performance

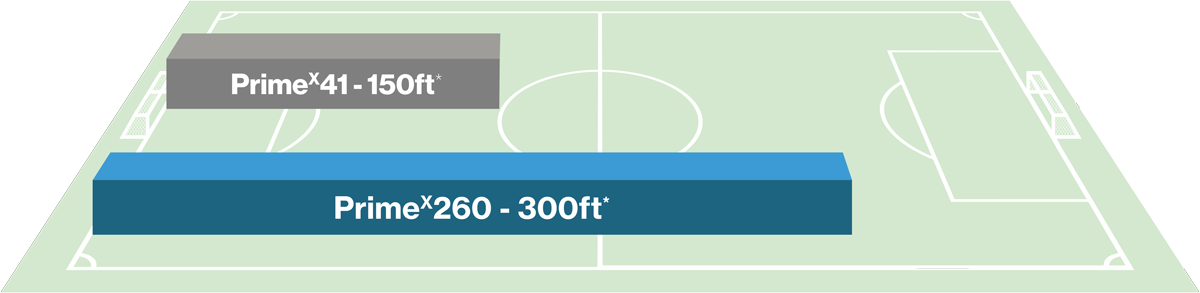

Extreme Camera-to-Marker RangePrimex 260 is engineered for extreme camera-to-marker range, enabling huge tracking volumes for training and simulation, robotics, and large stages. At long distances, its 26 MP imager delivers higher pixel density on every marker, improving stability when tracking smaller objects or dense multi-marker constellations across the far edges of your capture space.
50-micron 3D Accuracy & OptiTrack's Highest Resolution Sensor

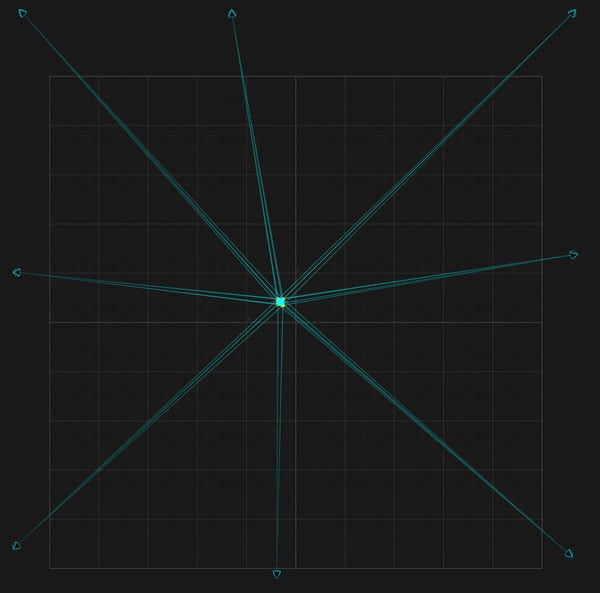

Micron-level 3D AccuracyAn 8-camera PrimeX 260 system exhibited a mean displacement error of 0.037mm (± .025mm) across nine 100mm translation trials.
OptiTrack's Highest-Resolution CameraPuts more pixels on every marker—so you can track smaller markers, packed closer together, from farther away.
"Fast Glass" Lens Engineering
Lens OptionsOptiTrack custom design their own super low distortion, “fast glass” lenses for optimal marker tracking. The Primex260’s lenses feature a wide-band anti-reflective coating for greater light transmission, larger volumes, and more precision 3D data.

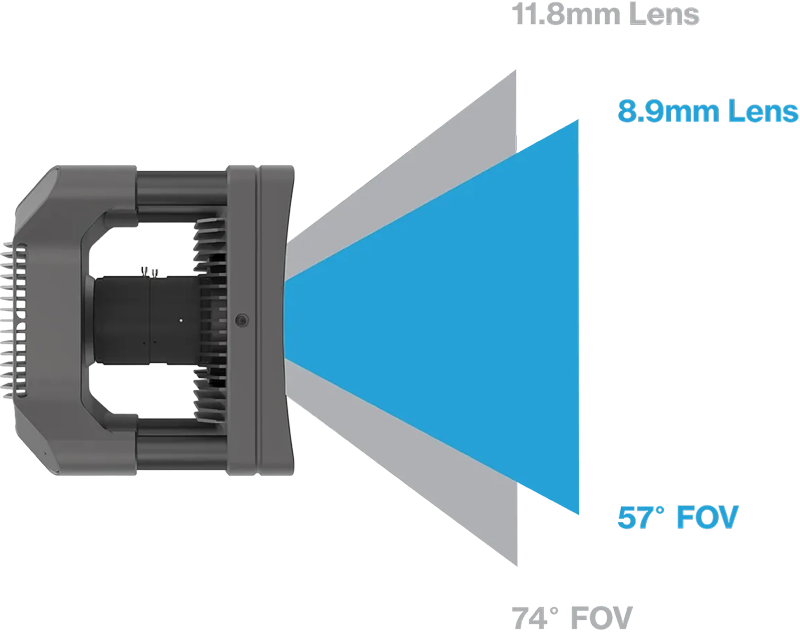

Choose the wider-view option. The standard Primex 260 offers a broad 57° x 57° Field of View (FOV). For wider volumes that demand elite accuracy, the Primex 260W is available with a 74° x 74° 8.9mm wide-view lens. The additional FOV lets users deploy fewer cameras to capture movement in wider areas.
On-Camera Status Indicator

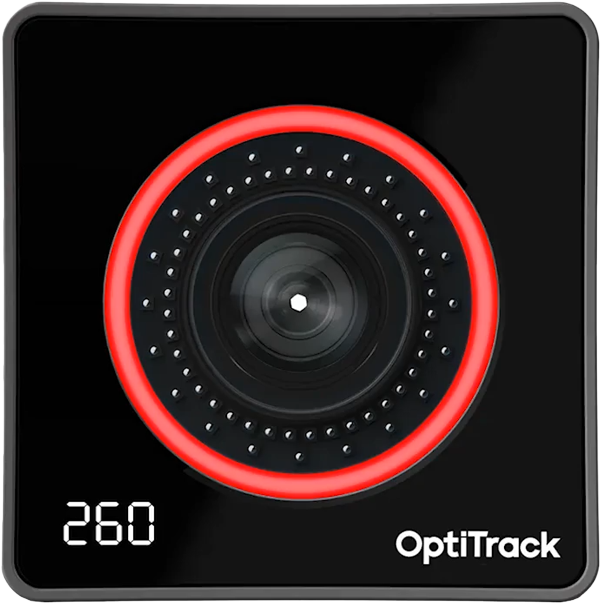

LED Indicator RingsPrimex cameras can keep users informed with definable ur LED indicator rings surrounding the lens. Recording a performance? Everyone on set knows the system is recording. Select a camera? It instantly changes colour. Have your own idea? Simple software controls help you make it so.
New, higher output strobe. Ultra high power LEDs provide improved range for any given shutter setting. The world's longest range motion capture camera just got even better.
Powerful On-Board Image Processing
Integrated Image ProcessingAll OptiTrack cameras feature integrated image processing. The algorithms which identify markers and marker centers, and the sequence of data delivery are important steps to achieve both world leading accuracy and low latency.
Industry-Leading Precision
OptiTrack's 3D precision is the best in the business, outperforming even the highest-resolution competition—which is why Activision selected OptiTrack to build the largest and most accurate performance capture stage in existence.
OptiTrack's 3D precision is the best in the business, outperforming even the highest-resolution competition—which is why Activision selected OptiTrack to build the largest and most accurate performance capture stage in existence.
OptiTrack's 3D precision is the best in the business, outperforming even the highest-resolution competition—which is why Activision selected OptiTrack to build the largest and most accurate performance capture stage in existence.
Primex is Feature Packed
Primex Equals PrecisionPrimex cameras are designed and manufactured in-house at OptiTrack’s headquarters in Oregon to ensure their exacting quality standards are met. They design lenses with low-distortion and true 10-bit grayscale depth sensor processing which reduces noise and improves precision, resulting in perfectly crisp images, better centroids and better 3D accuracy.
Greyscale Reference VideoAll Slimx cameras can be used as a reference video source - with synchronised, calibrated overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc.
OEM IntegrationIncorporate Slimx cameras into OEM tracking or computer vision applications via the free SDK, a C/C++ interface for control of and access to raw camera frames, image processing modes, camera settings, 2D object data, camera synchronization and all 3D data.
eSync 2With the eSync 2, cameras sync to nearly any source, including Genlock and SMPTE Time Code, for precise, flexible hardware synchronization. Trigger force plates, EMGs, and DAQs, or manage events through inputs and software commands, with full customization available via OptiTrack’s free, open SDK.
Mix and Match Cameras
Work Together SeamlesslyOptiTrack cameras work together seamlessly to build the perfect motion capture system for any use case.
Pure Precision
Easy Set-UpCompact, high-quality grayscale video enables image preview with multiple cameras, simultaneously—an indispensable tool for camera aiming and focusing during rig setup and calibration.
Zero DriftMotive calibrates automatically and continuously with data collected during normal use of the system. No longer does your calibration degrade over time with changing temperatures or challenging building movement—it is always a “fresh” calibration.
Seamless WorkflowOptiTrack’s Motive software delivers speed, precision, and ease of use, streamlining everything from calibration to real-time streaming, while tools like Aim Assist and auto-masking make even large system setups simple for one person.
