NZXT Sentry LXE High Performance Touch Screen & Fan Controller

NZXT Sentry LXE High Performance Touch Screen & Fan Controller

Scan code: LN37020 Manufacturer code: SENLXE-001 Request call
End Of Life
High End
Product Overview Introducing The Sentry LXE, a high performance external fan controller with an intuitive touch screen. Its unique patent-pending PCI card interface desktop design allows effortless control without having to reach underneath the desk to configure the settings. Some of the additional advanced features include touch screen capability, 5 channel fan control and temperature detect, time and date display, temperature alarm, and screen on/off functions.

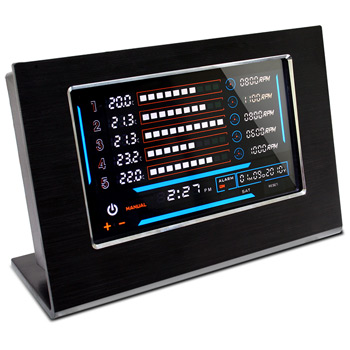

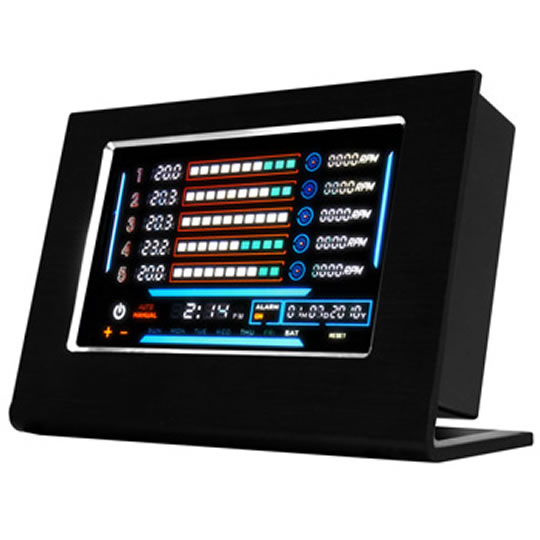

Intuitive Touch Screen LCD - Advanced, touch screen LCD displays temperatures in C/F, RPMs, along with the date, time, and day of the week. Users have the ability to switch the display off for complete darkness for more immersive gaming sessions

Complete Control - 5 Temperature Probes keep tabs on thermals throughout the case while the 5 Fan controllers adjust the fans' RPM speed for at least 10W per channel. Allows users to automatically adjust the fan speeds to correspond to a specific temperature, manually customize for extreme overclocking capabilities, or set to absolute silence

Temperature Alarm - Instant notification if temperatures rise above a designated point

Sleek Design - Brushed aluminium frame provides sleek aesthetics for any desktop.

Rechargeable Battery - The Sentry LXE features a rechargeable battery for up to 500 times, keeping the LXE life time longer without the hassle of replacing batteries constantly.

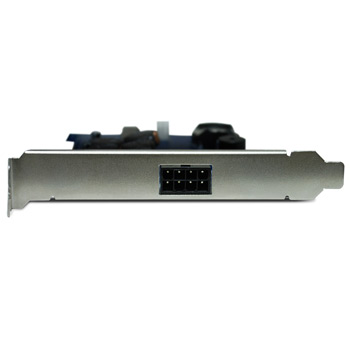

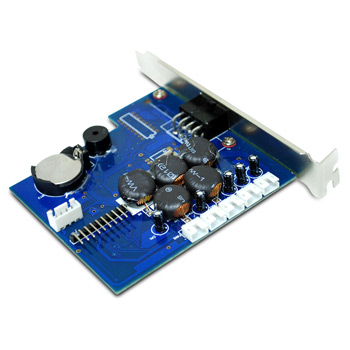

Using a NZXT developed PCI board and external touch display, the LXE allows for more 5.25" bays freed up for other peripherals environment. Simply set the fan controller atop your PC or desktop and connect through PCI card interface.
Features Specifications
• Fan Adjustment Range : 3.7V to 12V
• Fan Channel : 5
• Max watt per channel : 10W
• Temperature Module Channel : 5
• Temperature Range : 0 ~ 99°C / 32 ~ 199.9°C
• Measurement Frequency : Every 2 Seconds
• Temperature Alarm Range : 30°C to 90°C
• (AUTO) : Min 50%, Under 0-25°C, fan RPM 50%
• (MANUAL) : Min 40%
• Screen Size : 5.27" Touch Screen
• Package Contents : 1 x NZXT Sentry LXE
• 1 x PCI Control Board
• 5 x Temperature Probes
• Fan Cables

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
1 days
RTB Period:
12 months
Manufacturer Contact Details
Customers also bought
TekSpek Guides
System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

NZXT Sentry LXE High Performance Touch Screen & Fan Controller is rated 3.0 out of 5 by 3.
Rated 1 out of 5 by from basically a waste of time didn't control fans from start, either full belt or off, i'll stick with motherboard control less hassle, basically only adds bling to pc setup
Date published: 2016-05-31
Rated 5 out of 5 by from Excellent Product For years I was using a non-touchscreen version of the NZXT Sentry that was intended for drive-bay fitment, I mounted it into a box on my desk and made an extension cable back to my PC. Now they have released their latest version in both drive-bay and this desktop-mounting version, brilliant. For many computer users it's inconvenient to see the front of their PC, mine is side-on beside my desk, my other PC is under my desk, with this it doesn't matter, you can monitor your system wherever it is (depending on the length of the cable) and control your cooling form your desk. If watercooling is your thing it uses common 10k thermistors with a common connector, you can buy any of a number of water temp probes, I have two inline types, and monitor your coolant temp and control your radiator-mounted fans accordingly, the probes plug rioght onto the controller board in place of the standard probes. A highly recommended fan controller.
Date published: 2014-09-21
Rated 3 out of 5 by from Second Unit This is my second purchase of this item. The first one failed after 1 year.
Date published: 2013-12-12
  • y_2017, m_5, d_22, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_37020, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers


What is the compatibility of this to PCI ports?
Asked by: Proj3ctKarma
It doesn't require a PCI socket. The controller-board is intended to mount into a PCI cover-plate. If you have none spare you could run the cable into the case by another route, an unused watercooling pipe hole perhaps, and secure the board somewhere in the case.
Answered by: GhostSystems
Date published: 2015-07-17
