Scan code: LN45384 Manufacturer code: CA-PHATM-O2

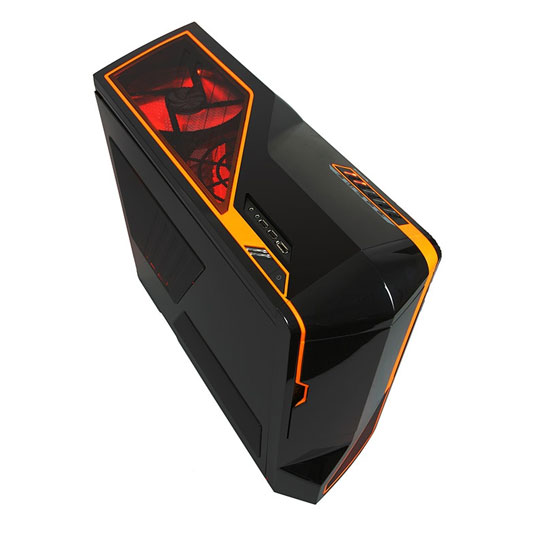

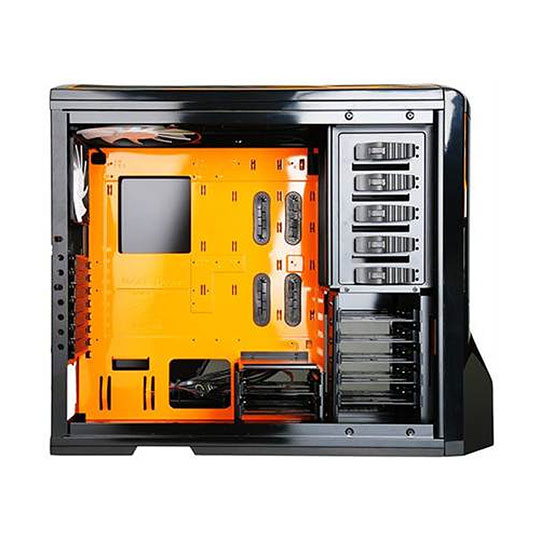

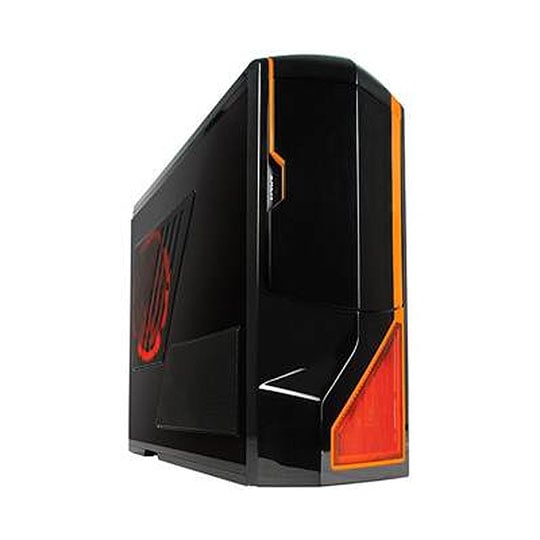

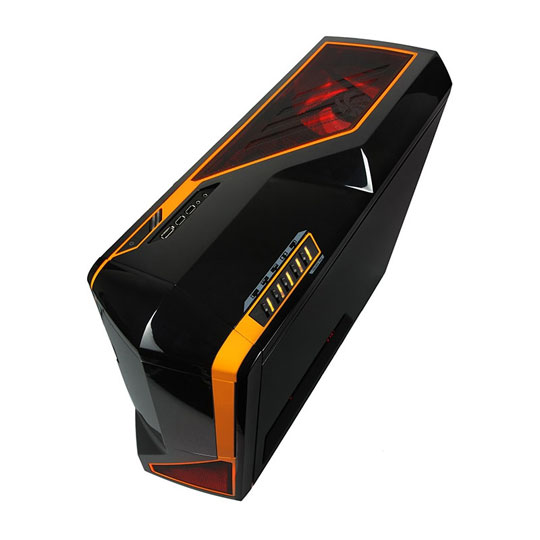

NZXT Phantom Black/Orange Full Tower PC Case

NZXT Phantom Black Orange Stripe M/B Tray Full Tower Case USB 3.0 w/o PSU

Thumbnail 1 : NZXT Phantom Black/Orange Full Tower PC Case Thumbnail 2 : NZXT Phantom Black/Orange Full Tower PC Case Thumbnail 3 : NZXT Phantom Black/Orange Full Tower PC Case Thumbnail 4 : NZXT Phantom Black/Orange Full Tower PC Case
Scan code: LN45384 Manufacturer code: CA-PHATM-O2
From £10.78 / month (APR 14.9%)
Monthly Payment: £20.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £124.93
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th Sep 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview NZXT presents the cutting edge Phantom Full Tower Chassis. Designed with sleek, pristine contours, the Phantom radiates personality and quality. As with all NZXT products, we strive to set apart our customers from the rest with unique, original designs – we run the extra mile so you won’t have to settle with the typical rectangular box.

The Phantom delivers high performance cooling advantages with 7 fan cooling options, dual radiator support, quad watercooling cutouts, and five 20W per channel fan controls. An innovative 5.25” screwless system, vast space to encompass 7 hard drives, and five 5.25” bays enable smooth customization. Establish your power, your presence.
Features • High Performance Cooling Advantages – Phantom’s extensive cooling capabilities include 7 fan cooling options with dual 200mm, single side 230/200mm (NZXT only guarantees fitment with NZXT's FN-200), triple 120mm, and front 140mm fans. For enhanced control and expandability, NZXT includes dual radiator support, quad watercooling cutouts, and an integrated fan controller with up to five 20W channels.

• Simple Installation – Phantom celebrates an array of innovative features designed to enhance every stage of the build. Meticulous wire management is easily attainable with large spacing behind the motherboard. The innovative all-new 5.25” screwless rails make installing and swapping HDDs an effortless process. Rubber grommets dampens vibration during operation.

• Additional Advanced Features – Further distinct features include an LED on/off button to control fan lighting, rubber PSU and case feet to reduce vibration, easily removable front and top panels, and top mounted USB, Audio/Mic, and E-SATA ports.

• Extensive Compatibility and Expandability – Features support for larger heat sinks, graphics cards, and E-ATX motherboards enabling enthusiasts to include any of today’s hottest components. Vast space within the enclosure allows for 7 hard drives with SDD support and up to five 5.25” bays.

Clearance Information
CPU Cooler 170mm
VGA card 350mm
Cable Management 23mm
Core Chassis Specifications
Case Edition Phantom Orange Stripes
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x eSATA
  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power LED
  • 1 x Power On/Off button
  • 2 x USB 3.0
Drive Bays
  • 7 x 2.5"/ 3.5" Internal
  • 5 x 5.25" External
Standard Expansion Slots 7
Vertical Expansion Slots
Fans & Filters
Fan Bays
  • 3 x 120mm
  • 1 x 140mm
  • 1 x 200/230mm
  • 2 x 200mm
Fans Included
  • 3 x 120mm
  • 1 x 200mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Max CPU Cooler Height 170 mm
Max GPU Card Length 350 mm
Max GPU Card Width
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black/ Orange
Chassis Contruction Materials Plastic / Steel
Dimensions 222 x 540 x 623 (WxHxD mm)
Weight 11 kg (Approx)
Please Note

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Loading Please Wait

Please wait . . .

TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

NZXT Phantom Black Orange Stripe M/B Tray Full Tower Case USB 3.0 w/o PSU is rated 4.7 out of 5 by 3.
Rated 5 out of 5 by from Massive and gorgeous It is simply a fantastic looking case, I think the photos say it all. The space inside is huge, you can really pack in there anything you want! I opted to install an nxzt fan to the front, the wiring is there already with the controls on the top of the case, so it was a really easy thing to do - the red fan also added to the good looks of the case. I installed Noctua NH-U12S Ultra-Quiet Slim CPU Cooler with 120mm NF-F12 fan, which is the smaller version but already quite big - the 14cm one wouldn't fit in the case in my opinion. Also doesn't seem like I'd be able to install a large side fan in the case as the Noctua cooler is quite close to the side panel, maybe 1cm clearance left. It doesn't matter though, as the airflow seems great inside, my cpu is at 25C when idle, and very quiet. The other side of the case has a nice hidden compartment for the cables, really easy to hide everything. You will need L shaped sata connectors though, at least my larger HDD is hanging out the side quite enough that a straight sata connector would be squished way too much with the side panel. The screwless drivebays make things very easy - however I did put in a screw for my BD player, as the mounting is quite lose and made terrible noises when the BD player was spinning at high speeds. You can control all the fans individually from the top panel, however I opted to connect these to the motherboard instead, I think it's more effective if the mobo controls them as needed. The Asus Ranger mobo is really great at this, even turns fans off if they aren't needed. There is a fan opening for the PSU at the bottom, so you can install it in a pull configuration; there is also space for another fan at the bottom of the case - this could be a worth spending on as it will help cooling your gpu. The only little negative is that the fans aren't led ones, I think the case would look much better with these; also they should have provided the 2nd large fan for the top, since there is space for it - it doesn't look nice having a "blank" spot there. Having 2 of these on the top would help cooling massively, especially that the new CPU coolers are so large, you probably won't be able to install the large side fan. Of course you can purchase and install more fans separately, but would have been better the get it all in the pack. Other than that I experienced no problems with the case, highly customisable, spacious, comfortable to work in, and looks great. I can only recommend it!!
Date published: 2015-09-21
Rated 4 out of 5 by from Very nice case A very nice, stylish case, sturdily built, good quality! Only problem was that it arrived very tightly screwed and caused mild inconvience but other than that, a very nice case
Date published: 2014-10-06
Rated 5 out of 5 by from A Beast you cannot deny This case is a beast, when you open it up you realise how big a unit it is (you cannot possibly get this from pictures) + Points Size, and space, Inside there is so much room, that already your hardware has plenty of space to keep itself cooled, I am using large GPU and it is no way obstructing access to anything Design, I suppose this is a subjective point, but it looks STUNNING! Solid, the case is very solid, good quality metal has been used (as the weight would show), the paint job is awedsome, there is no distinguishable differrences between the color schemes on the doors to the case (sometimes the blacks can be different colors depending on the part of the case) so much room for wiring, that even a n00b like me can keep the inside relatively clear of wiring. Individual fan control options that is as easier and plugging a fan in to set up Decent quality stock fans are included, maybe worthwhile upgrading but no biggie. Swapping / adding hard drives really is easy, take hard drive (3.5") push and bingo done same with SSD once in their bracket it really is that easy - points. Really only little gripes, but the 'rubber covers' where you feed the wiring through to keep neat is whimpy, any wiring fed through and the rubber just comes off, this would of been great if they were glued / Perm attached to the case by NZXT Top fan, the generic top fan isn't in the best of positions where the fan controller is on the 'maximus vi' motherboard te wiring is close / almost touching the fan because of the location of the hole for the wires to the back. The additional fan slots, whilst i watched videos even on the NZXT website they all referred the mid tower, and that has an additional fan slot on the side of the HDD mounts, this unit doesn't have that and it took me 10-15 minutes of case snooping to figure out they had moved the 140mm fan location inside the front panel.
Date published: 2014-03-16
  • y_2018, m_9, d_23, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_45384, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

what size psu can i fit in the case with an atx mobo?

what size psu can i fit in the case with an atx mobo?
Asked by: Kossssss
Hi The case can take a PSU approx 17 cms wide 9 cms high (there are small rubber stands to hold the psu, if you can remove these you can gain about a half a cm more) any length (you can remove everything from the middle of the case) Best wishes Tiv
Answered by: Tiva
Date published: 2015-09-22

what size radiation can this case take?

i was thinking of installing the cosair H110i GT liquid cpu cooler
Asked by: kickflare
Hello, This case has support for 2 x 120mm radiators mounted to the top of the case. Regards,
Answered by: JackB
Date published: 2017-06-13
