NZXT N9 AMD X870E Gaming Wi-Fi 7 PCIe 5.0 DDR5 White ATX Motherboard
NZXT N9 X870E Motherboard, White, AMD X870E, AM5, DDR5, PCIe 5.0, 4 x M.2, 5GbE, Wi-Fi 7 / BT 5.4, USB 4, ATX
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
N9 X870E DDR5 PCIe 5.0 AMD ATX Motherboard from NZXT
Diffused Light, Defined LinesThe N9 X870E makes minimalism feel deliberate and engineered. Its matte black finish is broken only by clean, corrugated textures across the M.2 heatsinks and a bold metal cover stretching across the lower half of the board. Cutting down the VRM is a subtle ARGB strip—diffused, matte, and fully addressable in NZXT CAM—offering just enough visual flair without hurting the board’s pro-grade aesthetic. Beneath the clean exterior lies a next-gen platform built for AMD 7000, 8000 and 9000 Series processors, complete with PCIe® 5.0, Wi-Fi 7, 5GbE LAN, USB4®, and reinforced latching PCIe slots that make installation and upgrades effortless. Under load, its overclocking-ready power stages and tuned thermal layout keep everything running sharp and stable.
X870EAMD Chipset
AM5CPU Socket
DDR5 DIMM4 Slots (8000+ MT/s)
ATXForm Factor

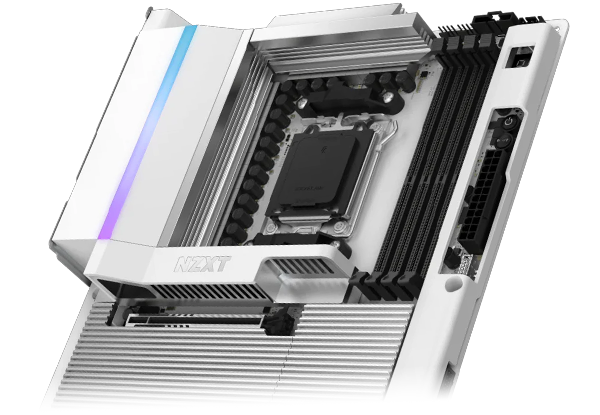

VRM Vitals
20VCORE Phases
1SOC Phase
1VDD_MISC Phase
8 Layer, 2oz Copper PCB
110A SPS for Overclocking

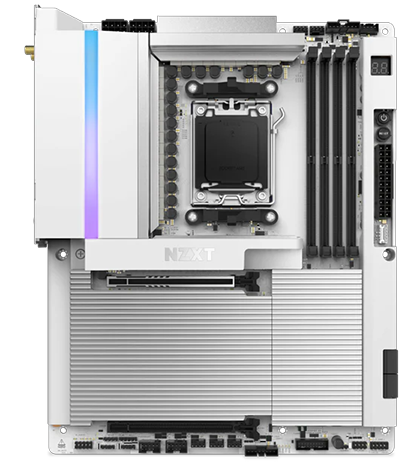

AMD AM5 SocketReady for AMD Ryzen™ 9000 Series processors, built on the AM5 socket with an land grid style design that improves thermal transfer and ensures secure, even pressure across the CPU surface.
DDR5 DominationFour dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.

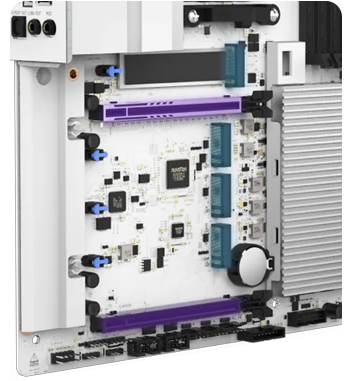

PCIe Power
1x PCIe 5.0 (Full Length, x16)
1x PCIe 3.0 (Full Length, x16)
1x PCIe 5.0 M.2 NVMe (2280)
3x PCIe 4.0 M.2 NVMe(4x 6GB/s SATA III Ports are also included)
The primary PCIe 5.0 x16 slot delivers maximum bandwidth for Next-Gen Graphics Cards, ensuring full throughput for today’s most demanding GPUs. In addition to a Gen4 (x2) Full-Sized slot, both interfaces feature Reinforced Retention and integrated Q-Release latches for Secure Installation and easy upgrades. Conversely, the main M.2 drives are shielded under a Heavy-Duty Metal Cover that not only protects against physical damage, but also doubles as a Heatsink to manage thermal load under sustained use.
Super Fast Speeds
Embrace Speed with Wi-Fi 7Wi-Fi 7 support delivers cutting-edge wireless throughput and ultra-low latency, perfect for high-performance gaming, 4K streaming, and large file transfers. Included in the box are two low-profile, magnetised antennae with pivot joints, allowing you to position them cleanly and accurately for the best signal strength.
Wi-Fi 7 - 46Gbps
Wi-Fi 6E - 9.6Gbps

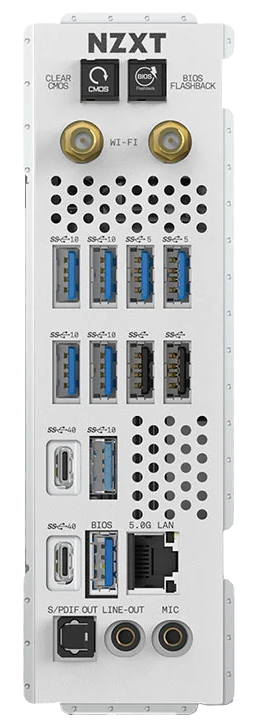

5GbE LAN5GbE boosts wired speeds up to 5x over standard Ethernet—ideal for fast file transfers, low-latency gaming, and high-res streaming.
USB4®With up to 40Gbps bandwidth, USB4 handles ultra-fast data and dual 4K displays—all through a single USB-C port.
Customise with NZXT CAM™
ARGB SequencingNZXT CAM gives you full control over the N9’s integrated RGB lighting, including its diffused lighting strip. Set colour profiles, trigger system-based effects, or match your visual theme across compatible NZXT components—all from a single interface.
Colour ControlNo extra hardware required—CAM lets you synchronise lighting across the board and connected NZXT RGB Core devices. Whether you want subtle ambient effects or bold system-wide animations, it’s all easily customisable.
Track Your StatsUse CAM to keep tabs on system vitals like CPU and GPU temps, usage stats, and fan speeds from connected NZXT cooling gear. While the motherboard’s deeper controls live in BIOS, CAM keeps everyday monitoring accessible and clean.
Power Up, Plug In
