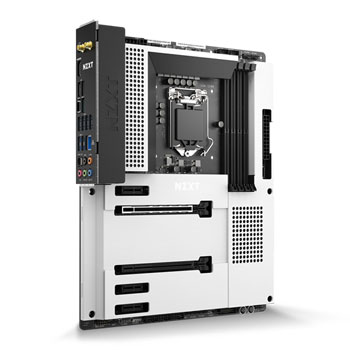

NZXT Intel Z590 N7 Matte White ATX Motherboard

NZXT N7 Z590 Matte White, Intel Z590, S 1200, DDR4, SATA3, 2x M.2, 2.5GbE, ax WiFi, USB 3.2 Gen2, ATX

Thumbnail 1 : NZXT Intel Z590 N7 Matte White ATX Motherboard Thumbnail 2 : NZXT Intel Z590 N7 Matte White ATX Motherboard Thumbnail 3 : NZXT Intel Z590 N7 Matte White ATX Motherboard Thumbnail 4 : NZXT Intel Z590 N7 Matte White ATX Motherboard
Scan code: LN115448 Manufacturer code: N7-Z59XT-W1
£239.99
Order now and get it tomorrow, Thu 5th Aug
From £11.52 / month (APR 14.9%)
Monthly Payment: £21.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £258.53
Monthly Payment: £11.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £239.99
Total inc. interest: £276.46
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 5th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Matte White N7 Intel Z590 Wireless Gaming Motherboard from NZXT

NZXT N7 White

Gaming Motherboard with Wi-Fi and CAM FeaturesLeveraging more than 14 years of professional PC building know how, NZXT have given us the N7 Z590 ATX Motherboard. Designed around the intel Z590 chipset this stylish matte white motherboard delivers everything you need to build a powerful, aesthetically pleasing gaming battle-station. Boasting built-in Wi-Fi 6E connectivity + Bluetooth 5.2, advanced lighting with numerous presets and custom modes and compatibility across the board for all lighting accessories though CAM, convenient fan profiles within CAM for up to seven independent fan channels, with dual M.2 connectors (including 1x Ultra-Fast PCIe 4.0 M.2) and adaptive noise reduction technology to optimise your cooling/noise. You can’t build a quieter, better-looking system as easily as you can with the new N7 Z590 motherboard.

Intel Z590Chipset

LGA 1200CPU Socket

ATXForm Factor

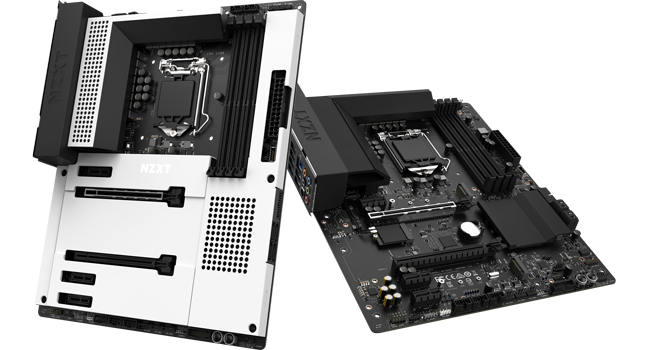

Whats Under the Cover?

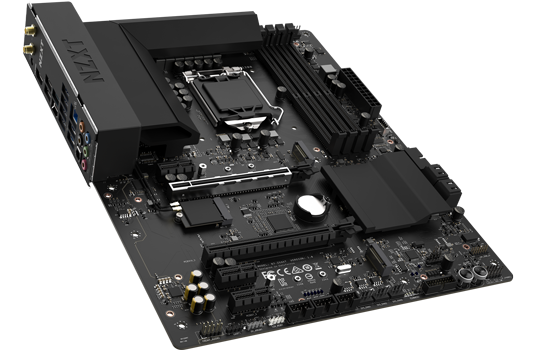

Ram-Packed Full of Features Built with stunning craftmanship the N7 features a unique all metal cover that provides a clean design that blends seemlessly with your chassis, whats underneath the cover is sure to surprise you as the N7's layout has been optimised and streamlined for simple installation and easier setup all the way to its headers.

Features

USB Ports
• 3 x USB 3.2 Gen 2 ports (3 at back panel [light blue])
• 1 x USB 3.2 Gen 2x2 Type-C (at back panel)
• 1 x USB 3.2 Gen 2 front panel port (For USB Type-C)
• 8 x USB 3.2 Gen 1 ports (4 at back panel [blue], 4 at mid-board)
• 8 x USB 2.0 ports (2 at back panel, 6 at mid-board)

4x DIMM Slots
•Non-ECC, unbuffered DDR4 memory
• Dual Channel Architecture
• Maximum capacity of 128GB
• Support Intel® Extreme Memory Profile (XMP) 2.0

Expansion Slots
• 2 x PCIe x16 Slots (PCIe1: Gen4x16 mode; PCIe3: Gen3 x4 mode)
• 3 x PCIe 3.0 x1

Storage Capabilities
• 1 x M.2 type 2242/2260/2280 (PCIe 4.0 x4 mode)
• 1 x M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode)
• 4 x SATA 6Gb/s ports

Connectivity Options
• Realtek® RTL8125BG 2.5G LAN
Intel Dual Band Wireless-AX210 Wi-Fi 6E
• Wi-Fi 802.11 a/b/g/n/ac/ax
• Supports dual band frequency 2.4/5GHz/6GHz
• Supports MU-MIMO
• Bluetooth V5.2

Honorable Mentions
• 2 x NZXT RGB LED connectors(3)
• 1 x 5V Addressable RGB LED connector
• 1 x 12V RGB LED connector
• Realtek® ALC1220 Codec 8-Channel High Definition Audio,
32-bit /192KHz DAC
• LGA socket 1200 for Intel® 11th & 10th Generation
Core™ i9/ Core™ i7/ Core™ i5/ Core™ i3 Processors

>
Please Note

PCIe 4.0 Compatibility requires an 11th Generation Intel CPU, if using a 10th generation CPU system will default to PCIe 3.0 speeds

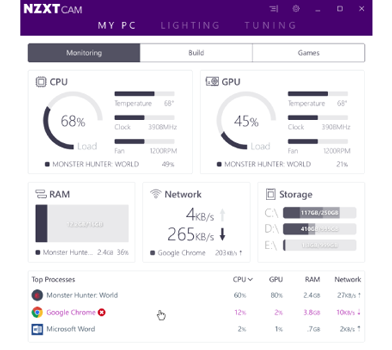

Intelligent Control Straight from the Box

What are you waiting for? Everything you need is ready out of the box and can be controlled through CAM software. Manage performance, temperatures, and devices all from a single application. NZXT CAM is fast, efficient, and easy-to-use, allowing you to control every aspect of your computer. making putting together and maintaining your dream rig, little more than a walk in the park.

Connections at your Fingertips

Specifications
Core Specifications
Edition N7 White
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2400(OC)
  • DDR4 - 2666
  • DDR4 - 2666(OC)
  • DDR4 - 2800
  • DDR4 - 2800(OC)
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 1.4b
Internal Connectivity
Expansion Slots
  • 1 x M.2 E-Key 22-32
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 18
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 5 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 2 x NZXT RGB LED Connector
  • 4 x POST LED(s)
  • 1 x Power button
  • 1 x Reset Button
  • 1 x RGB Header
  • 4 x SATA III - 6Gb/s
  • 3 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX210 (ax WiFi, BT5.2)
  • 1 x Realtek RTL8125BG

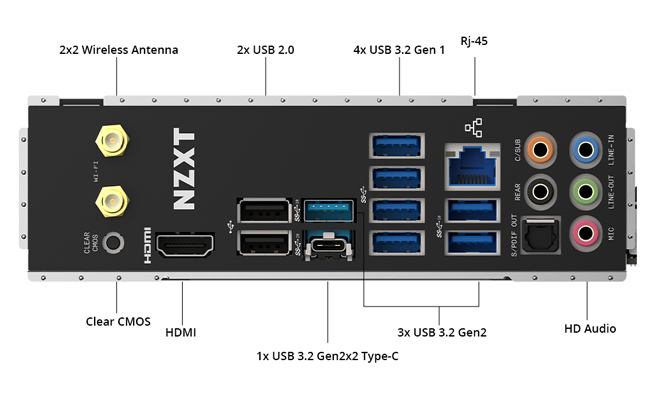

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x HDMI 1.4b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN115448
Model Number N7-Z59XT-W1
GTIN 5060301696666
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
