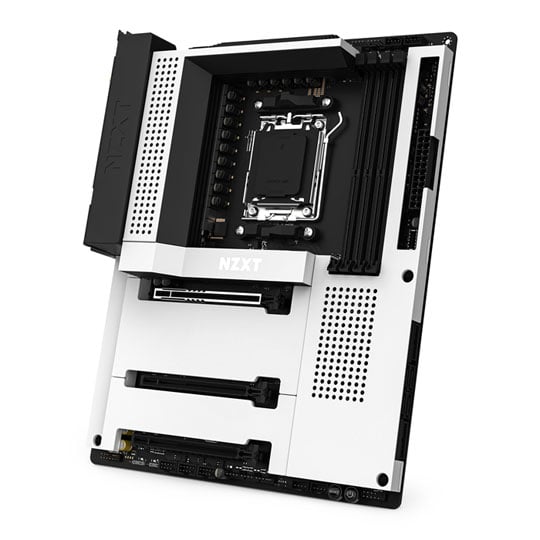

NZXT N7 AMD Ryzen B650E White Cover ATX Motherboard
NZXT N7 B650E Motherboard, White, AMD B650, AM5, DDR5, SATA3, PCIe 5.0, 3x M.2, 2.5GbE,WiFi 6E/BT, USB 3.2 Gen2, ATX
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
N7 B650E 7000 Series White ATX Gaming Motherboard from NZXT
Gaming Motherboard with Wi-Fi and CAM FeaturesLeveraging more than 14 years of professional PC building know how, NZXT has provided the N7 B650 ATX Motherboard. Designed around the AMD B650 chipset, this stylish white motherboard delivers everything you need to build a powerful, aesthetically pleasing gaming battle-station. It boasts built-in Wi-Fi 6E connectivity, Bluetooth 5.2, numerous presets and custom modes though NZXT CAM, convenient fan profiles within CAM for up to seven independent fan channels along with 3x M.2 connectors for ultra fast storage. You can't build a quieter, better-looking system as easily as you can with the new N7 B650 motherboard.
AMD B650Chipset
AM5 Ryzen™ 7000 SeriesCPU Socket
ATXForm Factor
Whats Under the Cover?
Ram-Packed Full of Features Built with stunning craftmanship the N7 features a unique cover that provides a clean design that blends seemlessly with your chassis. What's underneath the cover is sure to surprise you as the N7's layout has been optimised and streamlined for simple installation and easier setup all the way to its headers.
USB Ports• 2x USB 2.0 Ports
• 1x USB 3.2 Gen 2 Type-C Port
• 2x USB 3.2 Gen 2 Ports
• 4x USB 3.2 Gen 1 Ports
• 1x USB 3.2 Gen2x2 Front Panel Header
• 2x USB 3.2 Gen1 Headers
• 3x USB 2.0 Headers
4x DIMM Slots• DDR5 6000+(O.C.) support
• Dual Channel Architecture
• Maximum capacity of 128GB
• Extreme Memory Profile (XMP) Support
• EXTended Profiles for Overclocking (EXPO) Support
Expansion Slots• 1x PCIe 5.0 x16 slot
• 2x PCIe 4.0 x16 slots
Storage Capabilities• 1x M.2 Type 2242/2260/2280 (PCIe 5.0 ×4 mode)
• 1x M.2 Type 2242/2260/2280 (PCIe 4.0 ×4 mode)
• 1x M.2 Type 2242/2260/2280 (PCIe 4.0 ×2 mode)
• 4x SATA 6Gb/s ports.
Connectivity Options• Realtek RTL8125BG 2.5G LAN
• 802.11ax Wi-Fi 6E
• Bluetooth 5.2
Honorable Mentions• 4x NZXT RGB LED connectors
• 2x 5V Addressable RGB LED connector
• Realtek® ALC1220 Codec High Definition Audio
• AMD Socket, supports AM5 Ryzen™ 7000 Series Processors
Intelligent Control Straight from the Box
Lights. CAM. Action. Everything you need is ready out of the box and can be controlled through CAM software. Manage performance, temperatures, and devices all from a single application. NZXT CAM is fast, efficient, and easy-to-use, allowing you to control every aspect of your computer.

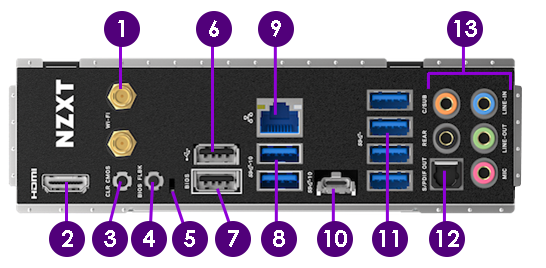

Connections at your Fingertips
12x Wireless Antennas
21x HDMI™ Port
31x Clear CMOS Button
41x BIOS Flashback Button
51x BIOS Flashback LED
61x USB 2.0
71x USB 2.0 BIOS Flashback Port
82x USB 3.2 Gen 2 ports
91x RJ45 LAN Port
101x USB 3.2 Gen 2 Type-C
114x USB 3.2 Gen 1
121x Optical SPDIF Out Port
135x Audio Jacks
