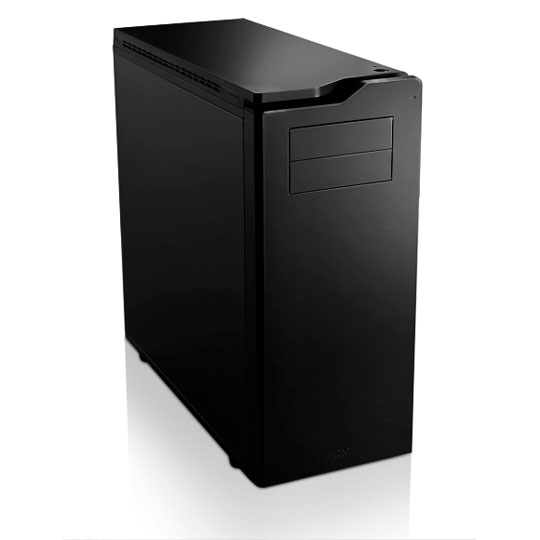

NZXT CA-H630F-M1 Full Tower Case

NZXT H630 Matte Black Silent Ultra Full Tower Case w/o PSU

Scan code: LN50919 Manufacturer code: CA-H630F-M1 Request call
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD On 29th Mar 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Clean. Modern. Silent. Three words to describe the new H – an ear-defining change in the way you experience the PC.

Beautifully architected, the new H630 was engineered for one simple purpose: provide enthusiasts the ability to build the highest performing systems while remaining audibly invisible.

Ushering in a new era of silent, high performance systems, the NZXT H630 leads the industry with a high-density sound dampening design that doesn’t impede its cooling capabilities.

Fully enclosed in steel and combined with an intelligent vent design to minimize intake noise, the H630 offers a sleek, jaw-dropping design that will leave you and your components speechless.

The new H is the first of its kind to support up to two 200mm fans in the front of the enclosure and the first in
the industry that allows for this much airflow expandability without the removal of sound dampening material.

The H630 offers exceptional support for a wide range of liquid cooling solutions, including the ability to mount 240mm, 280mm and 360mm radiators in both top and front positions.

Complete with fully modular hard drive cages, a ten-port fan hub and two removable SSD mounts located
behind the motherboard tray, the H630 offers comprehensive customization for all enthusiasts.

The H630 is available in Matte Black and Glossy White colors Features Premium sound dampening material -
The H630 utilizes a closed-cell, high-density foam which is the most efficient solution for silent computing. With seven millimeters of
this premium sound dampening solution, theH630 is capable of destroying component noise without hindering performance.

Water Cooling Support -
The H630 offers the best water cooling support of any silent chassis period –
Capable of supporting a 360mm radiator in both the front and top positions without any modifications

Efficient airflow means a quieter system - The H630 is the first chassis in history to support two 200mm fans in both the front
and top positions. With fully modular hard drive cages, the H630 offers unrivaled airflow capabilities.
Unlike much of its competition, the H630 offers maximum airflow expandability without the removal of any sound dampening material
Case Edition
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mid Tower
  • Mid Tower
  • XL-ATX
Material Plastic/ Steel
Front/ Side/ Top Panel
  • 1 x Card Reader
  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power LED
  • 1 x Power On/Off button
  • 2 x USB 2.0
  • 2 x USB 3.0
Drive Bays
  • 8 x 2.5"/ 3.5" Internal
  • 2 x 5.25" External
  • 5 x Hard Disk Drive Mount
Expansion Slots
Fan Bays
  • 4 x 120/140/200mm
  • 5 x 120/140mm
Fans Included
  • 1 x 140mm
  • 1 x 200mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window No
Power Supply Form Factor
Max PSU Length
Max CPU Cooler Height mm
Max VGA Card Length mm
Colour Black
Dimensions 245 x 547 x 567 (WxHxD mm)
Weight 14 kg (Approx)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Customers also bought
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

NZXT H630 Matte Black Silent Ultra Full Tower Case w/o PSU is rated 4.3 out of 5 by 3.
Rated 5 out of 5 by from excellent case i recently purchased this case, up to 11 fans can be installed, its very quiet. what drove me to buying this case was the unique SSD mounts and the fact you can aslo remove the unused hard drive bays to increase better airflow. cable management is very is to manage in this case, plent of prebuilt clips for you to cable tie your cables for that neat build
Date published: 2015-07-17
Rated 4 out of 5 by from Product does the job but lack of fan controller affect silent feature... There is a lot of space, it is easy to access any parts and wire management is good. Tower is fairly quiet but rear extractor fan is always at full speed because of the lack of fan controller so there is always an humming sound. There is space to add extra fans,all air intakes have dust filters. I plan to add 1 or 2 fans and a fan controller and see if components temperature is affected.
Date published: 2015-03-19
Rated 4 out of 5 by from Great case but slightly flawed The case is very well constructed with no sharp edges and oodles of space within for a raft of different fan and water cooling solutions. The panels are really easy to remove, so gaining access is easy in tight spaces. My only criticism, is to do with cooling. The case is configured to allow for two front 200mm fans (comes with one) However the front panel only has a small filtered section through which air can be drawn. Similarly the top of the case is restricted for outflow by narrow side vents. I added an extra 200mm front fan and also a water cooled dual fanned radiator at the top in push config. The case remains somewhat warm on the inside. I suspect that what's happening is that warm air after being pushed across the HDD's in front is impacting by the lack of top venting from the radiator and hot air is circulating back down leaving the only means of escape being via the 140mm fan (supplied) at the rear of the case. I've tried the radiator in pull config but that only leaves the 140mm at rear for extraction and a heck of a lot of positive pressure. The results were similar. I intend to seal off the top section from the main bay so that radiator air can not come back down into the case and see if that helps.
Date published: 2014-07-10
