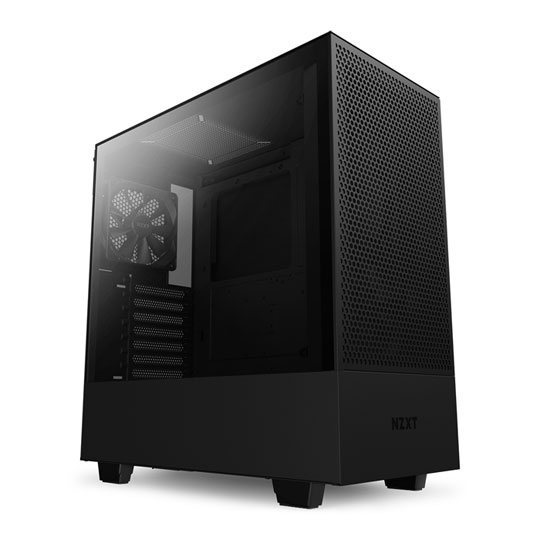

NZXT H510 Flow Matte Black Tempered Glass Compact Mid Tower Case
A SIGNATURE ELEGANT DESIGN FROM NZXTNZXT have returned to the formidable and well love H510 chassis and included an all-new airflow optimised perforated front panel. Perfect for High-performance builds and retaining many of the well renowned features from the H series chassis including; the iconic cable management bar to guide cable traffic, stunning tempered glass side panel for incredible panoramic views, two Aer F120mm case fans, removable bracket designed for radiators up to 280mm, Type-C front panel connectivity and unparalleled flexibility including support for Mini-ITX, MicroATX and ATX motherboards and plenty of options for storage and additional cooling allowing you to build a system that is totally unique to you.
All-Steel Construction with Incredible Airflow

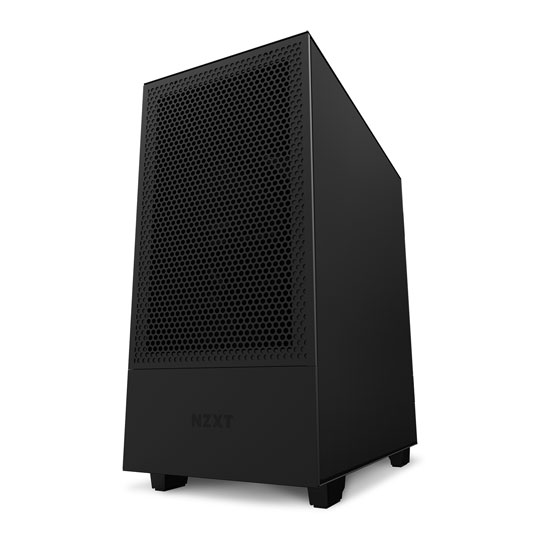

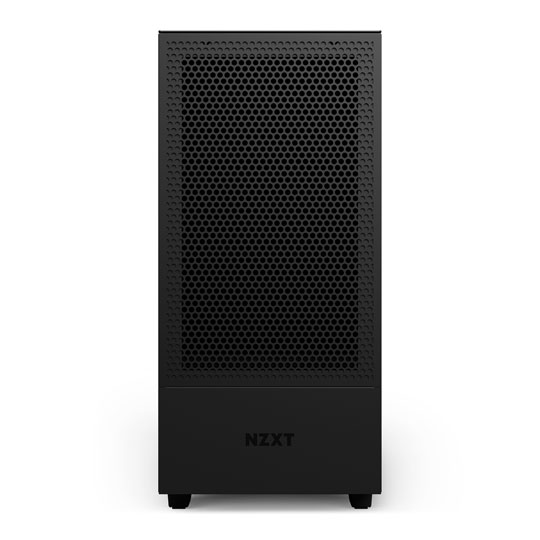

All-New Perforated front panelThe H510 flow returns with the same iconic all-steel construction as the previous members of the H series with the added addition of a heavily airflow optimised perforated front panel, allowing you to position and showcase amazingly powerful builds with even greater cooling performance.
System Installation Made Easy
All-New Cable Management System NZXT have designed a new cable routing kit with pre-installed channels and straps on the back of the motherboard so that you are not spending as much time doing cable management. There is also an upgrade to NZXT’s signature cable bar as it can now be adjusted. The H-Series layout ensures you’ll enjoy building your PC as much as you enjoy gaming on it.
Provides a High Speed Connection for All your Devices
Get instant superfast response with USB Type-CWith a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC.
Easy to Access Tempered Glass Side Panel
maintain your pc quickly and efficientlyGet easy access to your inner components with a thumb-screwed Tempered Glass side panel that shows off your handiwork and provides the ability to perform quick maintenance on your machine without the need for a toolkit.
|Core Chassis Specifications|
|Case Edition||H510 Flow|
|Case Form Factor||Mid Tower|
|Motherboard Form Factor||
|I/O, Bays & Expansion|
|Front/Side/Top Panel I/O||
|Standard Expansion Slots||7|
|Vertical Expansion Slots|
|Fans & Filters|
|Fans Included||2 x 120mm|
|Liquid Cooling Support|
|Front Radiator Compatibility||1 x 120/140/240/280mm|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility||1 x 120mm|
|Side Radiator Compatibility|
|Max CPU Cooler Height||165 mm|
|Max GPU Card Length||360 mm|
|Cable Routing Space||19 ~ 23 mm|
|Window Configuration||1 x Main Side|
|Window Construction||Tempered Glass|
|LED Lighting Functionality|
|LED Lighting Emitters|
|LED Lighting Colour|
|LED Lighting Support & Control|
|Power Supply Compatibility|
|PSU Wattage (If Included)|
|PSU 80+ Rating (If Included)|
|PSU Mounting Location||Bottom Mount, Rear|
|Max PSU Length|
|Chassis Physical Specifications|
|Chassis Construction Materials||SGCC Steel / Tempered Glass|
|Dimensions||210 x 460 x 428 (WxHxD mm)|
|Weight||6.6 kg (Approx)|
