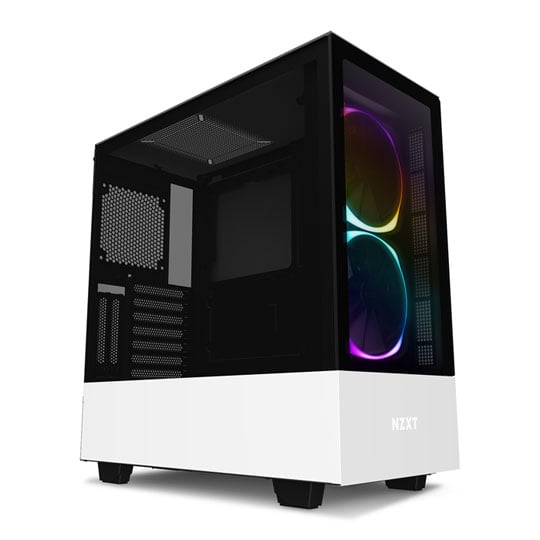

NZXT White H510 Elite Mid Tower Windowed PC Gaming Case

NZXT H510 Elite, White, Mid Tower w/ Tempered Glass Windows, 2x ARGB 140mm Fans, USB 3.1 Gen2 Type-C, ATX/mATX/mITX

Thumbnail 1 : NZXT White H510 Elite Mid Tower Windowed PC Gaming Case Thumbnail 2 : NZXT White H510 Elite Mid Tower Windowed PC Gaming Case Thumbnail 3 : NZXT White H510 Elite Mid Tower Windowed PC Gaming Case Thumbnail 4 : NZXT White H510 Elite Mid Tower Windowed PC Gaming Case NZXT White H510 Elite Mid Tower Windowed PC Gaming Case : video thumbnail 1
Scan code: LN98808 Manufacturer code: CA-H510E-W1
Order now and receive it by Monday, 4th July
Get it Monday, 04 JulIn stock
From £12.90 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £12.90
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £149.99
Total inc. interest: £154.67
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 4th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

NZXT H510 ELITE White Tempered Glass Case

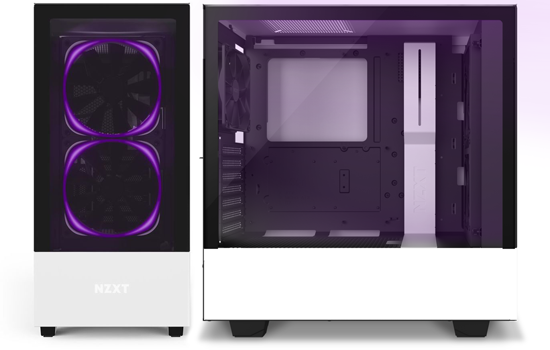

A SIGNATURE ELEGANT DESIGN FROM NZXTThe H510 ELITE showcases the signature design of the NZXT H Series cases. You can easily build a powerful system with plenty of options for storage and cooling due to the design of the elegant all-steel build, which includes the iconic cable management system to streamline building and upgrading your system. The H510 ELITE includes two Aer F* fans and a seamless tempered glass side panel to showcase your build.

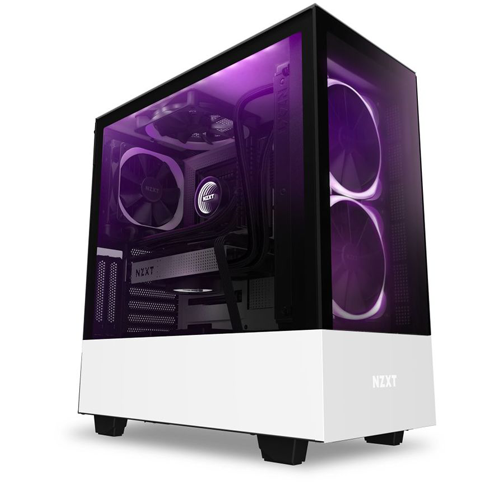

All-Steel Construction with the Sleek H Series Design

Premium Colour H510 ELITE

PREMIUM BUILD WITH COLOUR VARIANTSThe H-Series is an elegant all-steel construction design and is shared across all sizes in the new H-series which come in four different colour variants to match your taste. The tempered glass panel and signature PSU shroud with an iconic cable bar are purposely designed to showcase your beautiful builds.

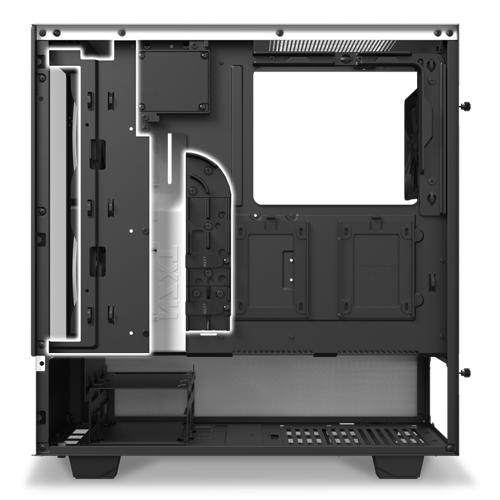

System Installation Made Easy


All-New Cable Management System NZXT have designed a new cable routing kit with pre-installed channels and straps on the back of the motherboard so that you are not spending as much time doing cable management. There is also an upgrade to NZXT’s signature cable bar as it can now be adjusted. The H-Series layout ensures you’ll enjoy building your PC as much as you enjoy gaming on it.

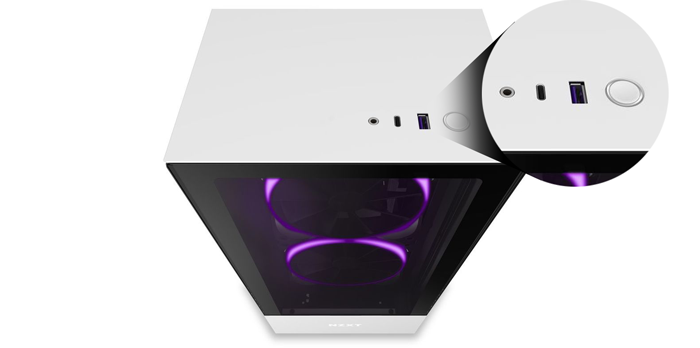

Provides a High Speed Connection for All your Devices


Get instant superfast response with USB Type-CWith a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC.

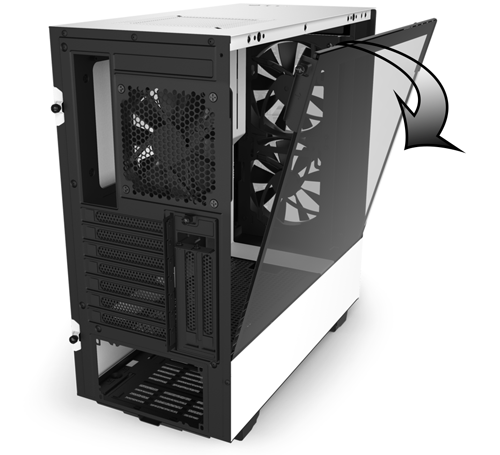

Easy to Access Tempered Glass Side Panel


maintain your pc quickly and efficientlyGet easy access to your inner components with a thumb-screwed Tempered Glass side panel that shows off your handiwork and provides the ability to perform quick maintenance on your machine without the need for a toolkit.

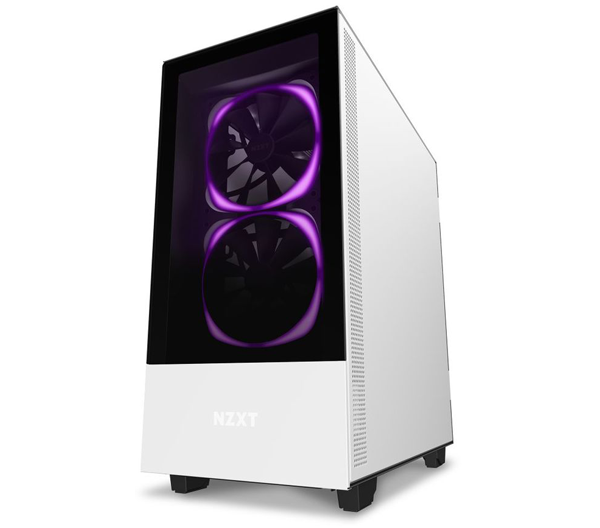

CAM-Powered Smart Device for RGB Lighting and Fans

RGB Lighting

UNIQUE RGB CUSTOMIZATION The H500 ELITE’s unique Smart Device includes features from the HUE+ and GRID+ V3 digital controllers, allowing for effortless control of RGB lighting and fans through CAM software. You don’t even need to waste time checking compatibility, installing, or manipulating physical buttons. The out-of-the box, elegantly controlled CAM software is all you need allowing you to customize lighting which is streamlined with two integrated and individually addressable RGB LED strips.

Adaptive Noise Reduction Technology

Adaptive Noise

FOR UP TO 40% REDUCTION IN NOISE LEVEL Using an on-board noise sensor, the Adaptive Noise Reduction Technology is used to measure and learn the specifics of your system to find the ideal balance between fan speed and cooling. With up to a 40% reduction in fan noise level, you won’t need to waste time designing custom fan curves. Leveraging machine learning to improve its results, this will ensure your fan settings are always optimal, even if you change hardware.

See your Build from Another View

Vertical Graphics Card

OPT FOR VERTICAL MOUNTING The H500 ELITE includes a simple to install and remove vertical mounting bracket for graphics cards, allowing you to showcase your build with a different view.
*PCIe riser card not included.

Core Chassis Specifications
Case Edition H510 Elite
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • MicroATX
  • Mini-ITX
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 1 x Headphone/Mic Combo
  • 1 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Drive Bays
  • 2 x 2.5" Internal
  • 1 x 2.5"/ 3.5" Internal
  • 2 x 3.5" Internal
Standard Expansion Slots 7
Vertical Expansion Slots 2
Fans & Filters
Fan Bays
  • 3 x 120/140mm
  • 1 x 120mm
Fans Included
  • 1 x 120mm
  • 2 x 140mm w/ Addressable RGB LEDs
Fan Controller/Hub
Dust Filters
  • Bottom
  • Front
Liquid Cooling Support
Front Radiator Compatibility 1 x 120/140/240/280mm
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility 1 x 120mm
Side Radiator Compatibility
Max CPU Cooler Height 165 mm
Max GPU Card Length 381 mm
Cable Routing Space 19 ~ 23 mm
Side Panels
Window/s Yes
Window Configuration
  • 1 x Front
  • 1 x Main Side
Window Construction Tempered Glass
LED Lighting Functionality
LED Lighting Yes
LED Lighting Emitters Included Addressable LED Fan/s
LED Lighting Colour RGB
LED Lighting Support & Control Control via Inc. Controller/Hub (Software Control)
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support ATX
PSU Mounting Location Bottom Mount, Rear
Max PSU Length
Chassis Physical Specifications
Colour White
Chassis Construction Materials SGCC
Dimensions 210 x 460 x 428 (WxHxD mm)
Weight 7.5 kg (Approx)
Please Note
Additional Information
Scan Code LN98808
Model Number CA-H510E-W1
GTIN 5060301695294

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
NZXT H510 Elite, White, Mid Tower w/ Tempered Glass Windows, 2x ARGB 140mm Fans, USB 3.1 Gen2 Type-C, ATX/mATX/mITX is rated 4.7 out of 5 by 3.
Rated 5 out of 5 by from Great looking case The case is beautiful and very sturdy just what you would expect from NZXT. I did see an average increase in thermals of 5 - 7 degrees but I was expecting this due to the form factor. This could also be due to the fact that I have mounted a 240mm AIO at the front which effectively then draws in hot air into the case. However, all my components are within healthy temperature ranges. Installation was very easy and there is plenty of space for cable management. Overall, I am very happy with the case and can only recommend it.
Date published: 2020-05-06
Rated 5 out of 5 by from upgrade treat Brought this as I recently brought a new bundle and fancied a new case too. I have to say its a lovely case, cables are well hidden and is surprising quiet with so much glass. It has the 2 fans at the front and one rear and one in the top, it runs super cool and it looks really really nice. The only thing I would make you aware off is pulling the glass panel off is anxiety inducing for the first time!
Date published: 2020-04-19
Rated 4 out of 5 by from Build quality not the best I bought this case as I wanted something to showcase my pc build and fancied a change from the lian li PC08 that i was currently using. Ive completed my bulid and it looks absolutley stunning in this case however compared to the lian li case the NZXT is poor build quality, I found the cable management not the best and 2 of the screws for expansion cards the threads were gone, also the glass is not the thickest. This may all seem a little unfair as the lian li was 3 times the price and as i mentioned earlier once your build is done it does look beutiful in this case
Date published: 2020-04-12
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_98808, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Is it a newer version shipped with a fourth fan?

As you can see on Reddit, one of NZXT staff, mentioned that they now ship it with the fourth fan and it was a mistake not to do it in the first place. also on their website, it says: Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included) Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included) Rear: 1x 120mm (1x AER F120 Case Version Included) yet you sell it with only 1 x 120mm fan, meaning this is the "old" version? I think this is confusing because it's different than the specification on the NZXT website.
