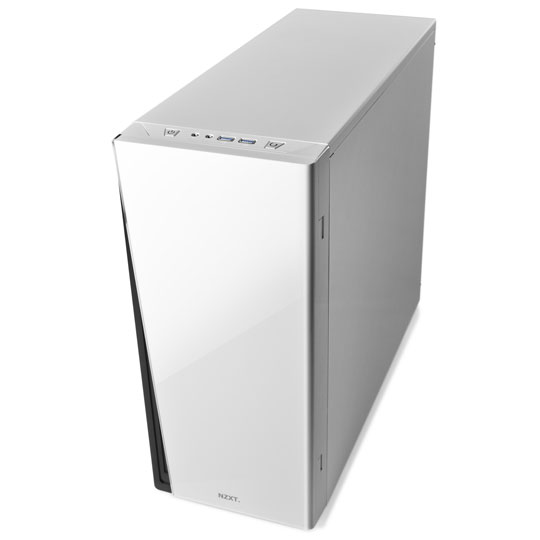

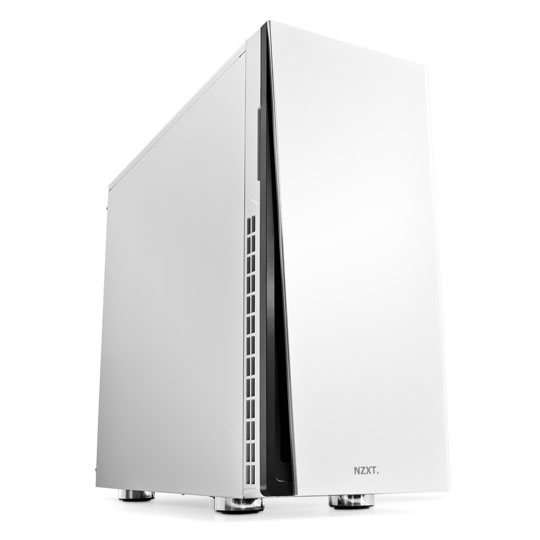

NZXT H230 Mid Tower Case

NZXT H230 White Mid Tower Silent Case USB 3.0, 120mm Quiet Fan w/o PSU

NZXT
Scan code: LN51475 Manufacturer code: CA-H230I-W1 Request call
£54.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review 3xs Approved High End
Delivery options £5.48 By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

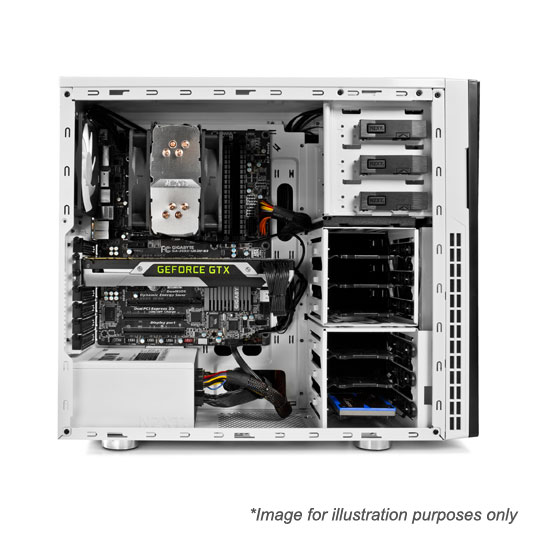

Product Overview Classic design. Minimal hassle. The new H230 is the perfect silent chassis for users looking for the bare essentials. Continuing the legacy of the H series, the H230 brings the same sound crushing abilities as its predecessors into a smaller, affordable package for all. Complete with a tool-free 5.25” latch design, removable HDD cage, seven expansion slots and USB 3.0 connectivity, the H230 brings all of the essentials together for hassle-free computing with a minimalistic edge.

Features • Classic styling, minimalistic design.
• Noise absorbing internal padding.
• Removable HDD cage.
• Tool-free 5.25” latch design.

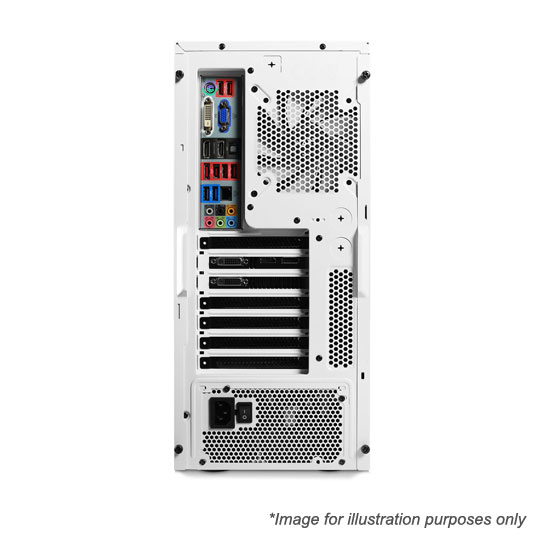

• 7 motherboard expansion slots.
• 2x USB 3.0 / audio external connectors.
Specifications
Specifications
Case Edition H230 White
Case Form Factor Mid Tower
Motherboard Form Factor
  • ATX
  • Micro ATX
  • Mini ITX
Material Plastic/ Steel
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 2 x USB 3.0
Drive Bays
  • 6 x 2.5"/ 3.5" Internal
  • 3 x 5.25" External
Expansion Slots 7
Fan Bays 2 x 120mm
Fans Included 1 x 120mm
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window No
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 158 mm
Max VGA Card Length 400 mm
Colour White
Dimensions 195 x 447 x 502 (WxHxD mm)
Weight 7.25 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN
TekSpek Guides
Computer Cases
Computer Cases
Date Issued: 6th Jul 2011

There's more choice than ever before, but which computer case is right for you and which features should you look out for?

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

Reviews
Rated 4 out of 5 by 2 reviewers.
Rated 3 out of 5 by easily scratched I returned it as it wasn't a good substitute to the one on wanted. It does not have a single DP port, which is just one of many issues. The door is rather unnecessary. Fingerprints everywhere, it's not my cup of tea. 05 April 2016
Rated 5 out of 5 by Good quality, and effective noise damping This is a good case to work with, and it feels well designed and built. The cable management cut-outs are conveniently sited, and the large cut out behind the CPU cooler bracket is a great help. If fitting the 4th fan in the bottom of the chassis, I would recommend getting a grille to mount on the inside, as this is also where PSU cables will naturally settle. The case can accomodate a deep PSU, but with the extra fan a shallow, modular one is advantageous. A couple of minor niggles: - Stated max cooler height is 158mm; but the 157mm tall Phanteks is actually slightly too tall (it fits, but only by pressing into the sound-absorbing padding) - The depth behind the motherboard for cables is marginally shallower than ideal; if you run the main ATX power cable behind there you need to make sure it doesn't cross anything else - The drive carriers, while excellent for 3.5" disks, can sag and therefore become loose with 2.5" disks. 31 March 2014
  • 2016-05-20 T12:52:39.668-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_2, tr_2
  • loc_en_US, sid_51475, prod, sort_default
1-2 of 2
