NZXT Red H200 Mini ITX Windowed PC Gaming Case
NZXT H200, Red/Black, Mini-ITX Computer Chassis, w/ Tempered Glass Window, mITX, 2x 120mm Aer Fans, 2x USB 3.1 Gen1 A
By DPD On 17th Aug 2018
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

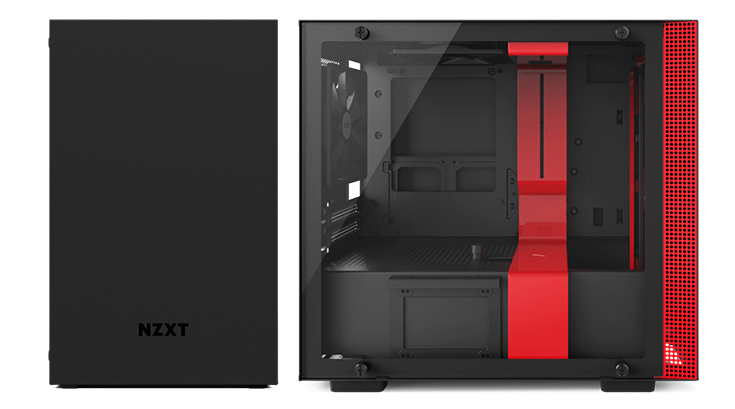

NZXT H200 Matte Black / Red
SIMPLE, SMART AND SLEEKThe H200 showcases the signature design introduced with the H-Series. The elegant all-steel construction embeds the iconic cable management system that streamlines building and upgrading your system. NZXT have integrated two Aer F fans to maximise cooling potential and a full tempered glass window to showcase your mini-ITX build with glorious clarity.
Effortless Build Experience

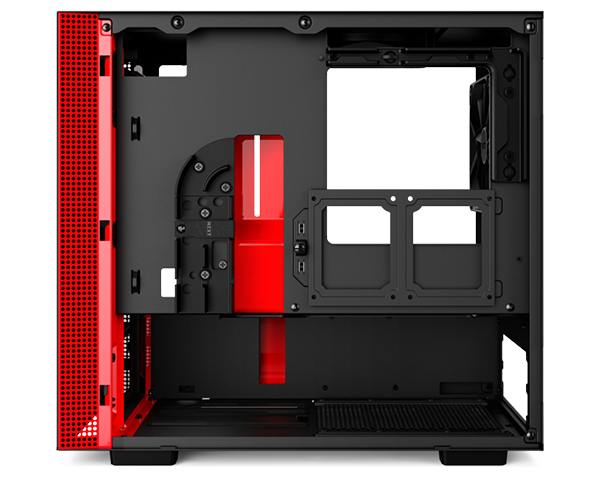

MANAGE YOUR CABLES LIKE A BOSS Cable management can often take more time than assembly. NZXT have designed a new cable routing kit with pre-installed channels and straps, on the back of the motherboard tray, for intuitive and easy wiring. The H200 series layout ensures you’ll enjoy building your PC as much as you enjoy gaming on it.

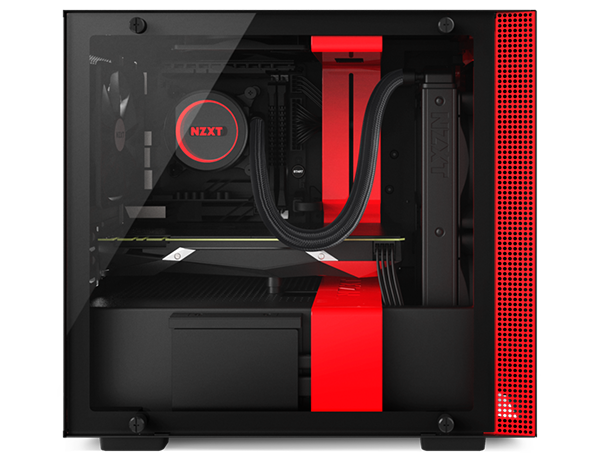

INTEGRATED RESERVOIR MOUNTS NZXT have simplified the water-cooling installation, a front drop-in bracket is designed for radiators up to 240mm along with integrated reservoir mounting for custom-loop systems. Two Aer F 120mm fans are included on the top and rear of the case for optimal internal airflow. Front and PSU intakes are fully filtered to preserve your system’s clean looks.

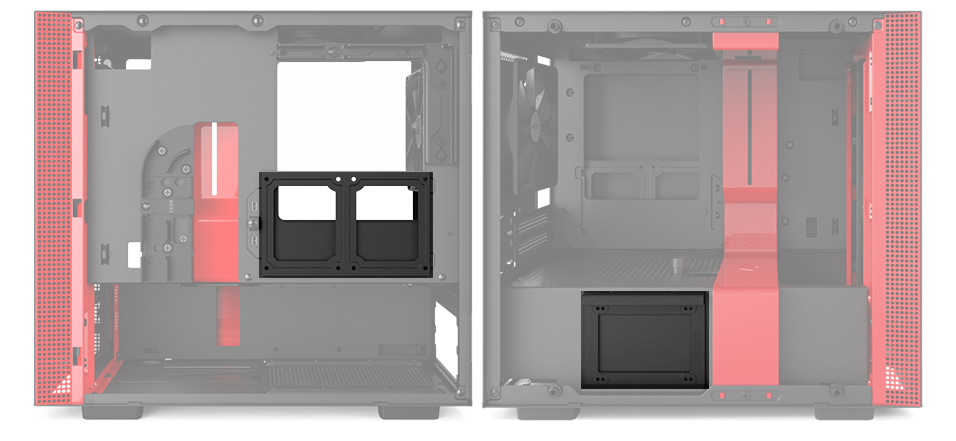

Hassle Free Storage
ADDITIONAL 3.5" BAY BELOW PSU SHROUD Storage installation is a snap with the single, quick-release 2.5” SSD tray positioned on the PSU shroud. A steel tray behind the motherboard allows two 2.5” drives to be mounted with an additional 3.5” mounting below the shroud. There is even room for another 2.5” drive which is on display through the stunning window. This storage layout optimizes airflow and interior space for a clean-looking build.
|Core Chassis Specifications|
|Case Form Factor||Mini-ITX|
|Motherboard Form Factor||Mini-ITX|
|I/O, Bays & Expansion|
|Front/Side/Top Panel I/O||
|Standard Expansion Slots||2|
|Vertical Expansion Slots|
|Fans & Filters|
|Fans Included||2 x 120mm|
|Liquid Cooling Support|
|Front Radiator Compatibility||1 x 120/240mm|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility||1 x 120mm|
|Side Radiator Compatibility|
|Max CPU Cooler Height||165 mm|
|Max GPU Card Length||325 mm|
|Max GPU Card Width|
|Cable Routing Space|
|LED Lighting Functionality|
|LED Lighting Emitters|
|LED Lighting Colour|
|LED Lighting Support & Control|
|Power Supply Compatibility|
|PSU Wattage (If Included)|
|PSU 80+ Rating (If Included)|
|PSU Mounting Location|
|Max PSU Length|
|Chassis Physical Specifications|
|Colour||Matte Black/ Red|
|Chassis Contruction Materials||SECC Steel / Tempered Glass|
|Dimensions||210 x 349 x 372 (WxHxD mm)|
|Weight||5.9 kg (Approx)|
