NUX NAI-24 USB Audio Interface
NUX - NAI-24, 2-in/4-out Desktop USB Audio Interface with Support for up to 32-bit/192kHz Sample Rate
Email me when the availability or price changes
Finance this product
- From £17.13 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
USB Audio Interface

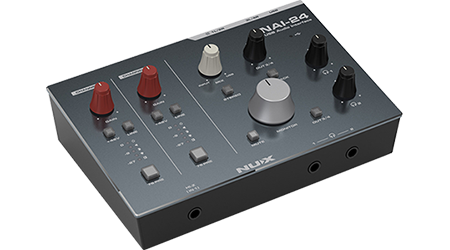

NUX - NAI-24
2-in/4-out desktop USB audio interface with support for up to 32-bit/192kHz sample rateThe NUX NAI-24 is designed for personal studios, it is compact and equipped with high-quality audio transformers. It features a pure Class A discrete transistor microphone preamp with up to 71dB of gain. Inspired by the classic 76 compressor, it includes a convenient and easy-to-use pure analog compressor. With support for a sampling rate of 32‐bit/192kHz, it allows for switching between two audio interface modes to accommodate different usage environments.
Amazing Features
• Pure Class-A discrete transistor preamplifier delivering ultra-high dynamic range and resolution
• FET type 76PRE compression circuit with multiple preset modes for various applications
• Studio-grade audio transformer on Main Output 1L/2R channels for warm, professional sound characteristics
• Additional 3L/4R output channels for auxiliary output, enhancing versatility in different setups
• Two high-performance headphone amplifiers with routable channels for customized monitoring
• USB powered, no external power supply required
• 48V phantom power with independent on/off control for each channel
• Ultra-low latency direct monitoring channels for real-time performance
• Provides stable and reliable signal transmission using high-quality XLR connectors and 6.35mm connectors
• Includes a licensed professional recording software: CUBASE 13 LE
A Tribute to Legends
pure hardware circuitsUtilizing the FET type 76PRE compressor circuit, it uses pure hardware circuits for better tonal quality and offers multiple preset modes through digital control for various applications. The input channel uses high-dynamic pure Class A discrete transistors, achieving a maximum gain of 71 dB. Each input channel has a built-in boost mode and 3 different compression modes.

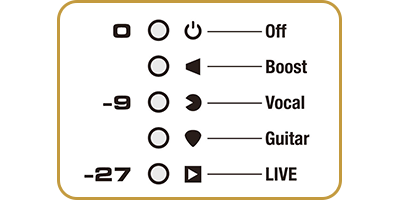

Boost Mode: Provides an additional 8dB of gain to the overall preamp, bringing the total microphone preamp gain to 71 dB. Vocal Compression Mode: Designed with moderate attack and release characteristics based on vocal performance, delivering a smooth sound. Guitar Compression Mode: Fast response and smooth release specifically set for guitar/bass, resulting in a more balanced and consistent volume. Live Streaming Compression Mode: This mode offers fastest compression characteristics, ensuring signal integrity and clarity during live broadcasts.
Professional AD/DA Conversion

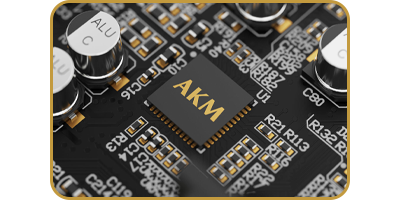

Pure Sound PrecisionEquipped with high-quality, professional AD/DA decoding chips from the renowned manufacturer AKM (Asahi Kasei Microdevices).
Audio Transformers

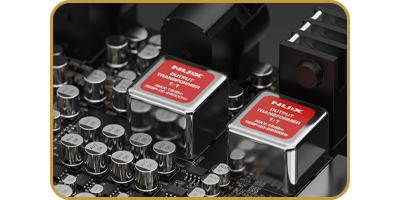

A High-Quality ChoiceInvesting in studio-grade audio transformers at the main output (1L/2R), providing warm sound characteristics and achieving electrical isolation to avoid ground loop interference.
Note: Even when connecting unbalanced outputs at 1L/2R, balanced output signal strength is still maintained.
Simple and User-Friendly

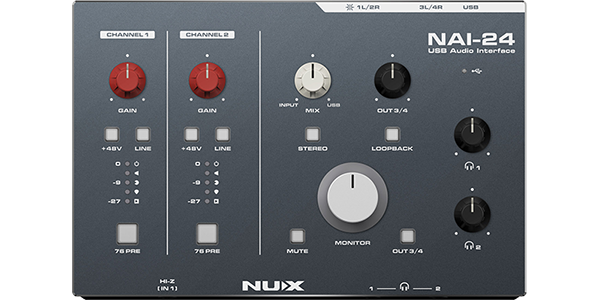

ultra-low latencyThe NAI-24 is a user-friendly 2-input, 4-output audio interface, providing independent 48V phantom power control and LINE IN switching buttons.
Features include HI-Z input, dual headphone independent monitoring, soft/hard monitoring mix adjustment, one-click stereo mode switching, and one-click loopback. With an ultra-low latency of 3.17ms at 192kHz 32 sample buffer, it meets professional needs.
By long-pressing the (OUT 3/4) button, you can route the Output 3/4 signal to Headphone 2 for monitoring. (e.g., When playing backing tracks during a performance, you can set the metronome track separately to (OUT 3/4) and send it to the drummer via Headphone 2.)
Two Pairs? No Problem

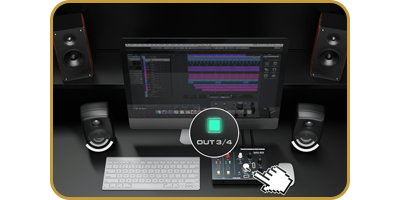

A/B ModeIn A/B mode, you can connect active monitor speakers to the outputs (1L/2R and 3L/4R) simultaneously, and achieve one-click monitoring switching by pressing the (OUT 3/4) button.
Let Me Hear It
Recording Mode In this mode, when using the main channel (1L/2R), pressing the (OUT3/4) button allows you to monitor the sound sent to the 3/4 channels with one-click. (e.g., the sound engineer needs to temporarily monitor the tracks sent to the recording musicians.)
Add External Effects to Existing Recordings

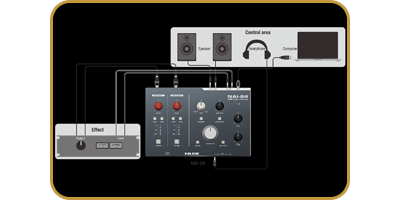

re-record with effectsIn recording mode, easily connect to various rack and external effect devices for re-recording.
The Tech Spec
| Features | Specification | MIC IN | Dynamic Range: 114dB(A-weighted) Frequency Response: 20-20000Hz ± 0.1dB THD+N: 0.002%@-1dBFS(at minimum gain) EIN: -126dB(A-weighted) Maximum Input Level: 6dBu(at minimum gain) Gain Range: 5.4-63dB Input lmpedance: 2.4kΩ |
|---|---|
| LINE IN | Dynamic Range: 114dB(A-weighted) Frequency Response: 20-20000Hz ± 0.12dB THD+N：0.003%@-1dBFS (at minimum gain) Maximum Input Level: 26dBu (at minimum gain) Gain Range: -12.6-45dB Input lmpedance: 21kΩ |
| HI-Z | Nominal input Level: -10dBu Input lmpedance: 1MΩ1 |
| L/2R | Dynamic Range: 112 dB(Balanced, 600 Ω.A-weighted) Frequency Response: 20-20000Hz ± 0.5dB Maximum Output Level: +12.4dBu(Balanced,0dBFS) THD+N: 0.0015%@-1dBFS Output lmpedance: 580Ω |
| 3L/4R | Dynamic Range: 112dB(Balanced, 200kΩ, A-weighted) Frequency Response: 20-20000Hz ± 0.1dB THD+N: 0.001%@-1dBFS Maximum OutputLevel: +18.4dBu(Balanced, 0dBFS) Output lmpedance: 240Ω |
| PHONES OUTPUT | Dynamic Range: 104dB (A-weighted) Frequency Response: 20-20000Hz ± 0.25dB THD+N: 0.005%@-5dBFS Power Output: 30mW@32Ω |
| Dimensions (LxWxH) | 194 x 128 x 67mm |
| Weight | 722g |
