Scan code: LN120777 Manufacturer code: ASUS ROG MAXIMUS Z690 EXTREME

ASUS Intel Z690 ROG MAXIMUS EXTREME PCIe 5.0 E-ATX

ASUS ROG MAXIMUS Z690 EXTREME, Intel Z690, S 1700, DDR5, PCIe 5.0, SATA3, M.2, 10GbE/ax WiFi, USB 3.2 Gen2x2/TB4, EATX

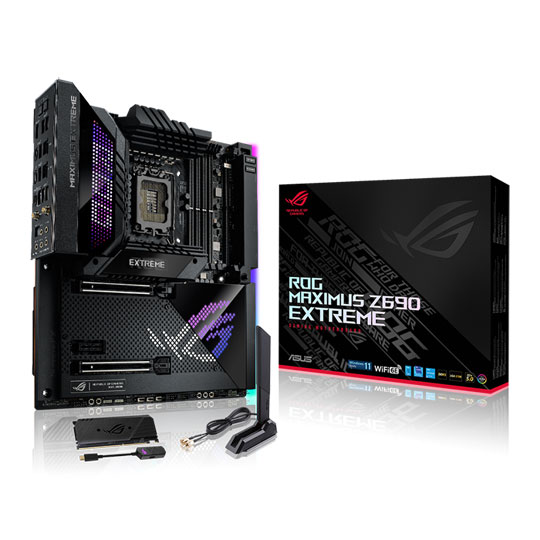

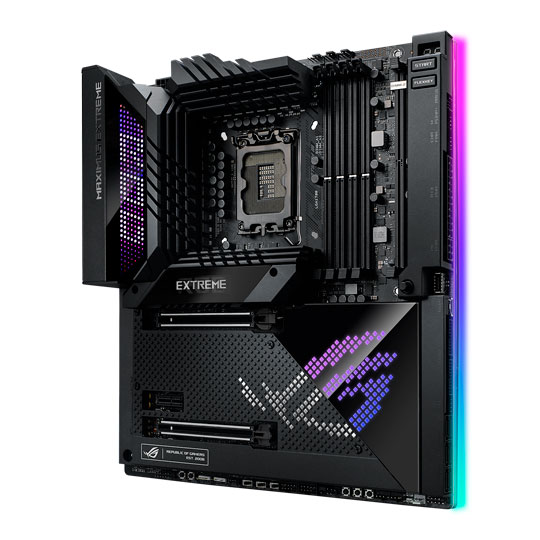

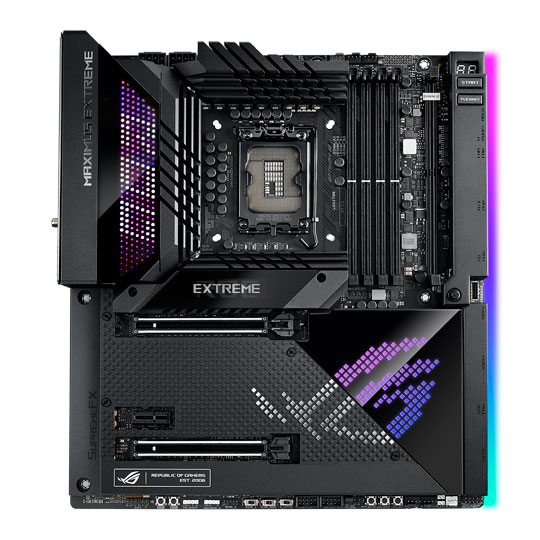

Thumbnail 1 : ASUS Intel Z690 ROG MAXIMUS EXTREME PCIe 5.0 E-ATX Thumbnail 2 : ASUS Intel Z690 ROG MAXIMUS EXTREME PCIe 5.0 E-ATX Thumbnail 3 : ASUS Intel Z690 ROG MAXIMUS EXTREME PCIe 5.0 E-ATX
Scan code: LN120777 Manufacturer code: ASUS ROG MAXIMUS Z690 EXTREME
£934.99Item overdue since 23 November 2021
Pre order
From £25.98 / month (APR 0%) or 0% for 4 months
Monthly Payment: £77.92
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £934.99
Total inc. interest: £934.99
Monthly Payment: £38.96
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £934.99
Total inc. interest: £934.99
Monthly Payment: £25.98
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £934.99
Total inc. interest: £934.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £23.35 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
ASUS Cashback Promo

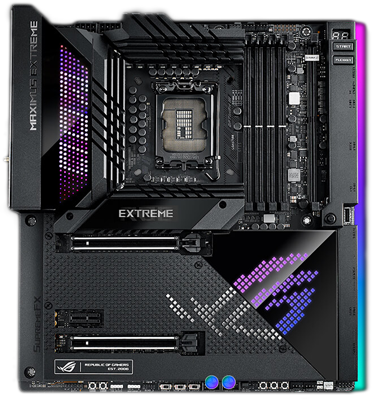

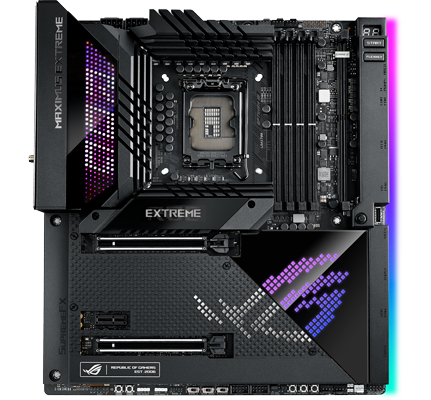

ROG Maximus Z690 EXTREME 12th Gen Intel ATX Motherboard

ASUS Extreme

Top-Tier Performance ROG Maximus Z690 Extreme represents the ultimate in enthusiast motherboard design for those who want the best possible option that excels at both air and liquid cooling for 12th Gen Intel® Core™ CPUs. And this platform is packed with the most features that you will find on a ROG Z690 motherboard, including heavy-duty 24+1 power stages, ASUS Enhanced Memory Profiles for top-notch DDR5 speeds, multiple PCIe 5.0 slots, and the exclusive AniMe Matrix™ LED Display.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

ATXForm Factor

The Latest ROG VRM Architecture

Fresh, New Power DesignModern CPU architectures up the ante for motherboard power design by transitioning from deep power saving modes to full load almost instantaneously. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal.

4K Recording

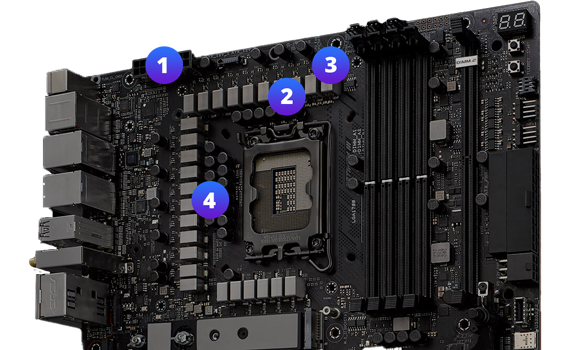

1. Dual 8-pin ProCool II power connectorsTwo ProCool connectors ensure a reliable and snug connection to the EPS12V power lines.

2. MicroFine Alloy ChokesEach power stage is accompanied by a high-permeability alloy-core choke rate to handle a whopping 45 amps.

3. 24+1 Power StagesThe VRM features 24+1 power stages rated at 105 amps each for the Vcore and two 100-amp power stages for the secondary voltage rails.

4. Premium metallic capacitorsInput and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.

Unprecedented Cooling Performance

Keep Your Components Ice ColdROG Maximus Z690 Extreme features unparalleled flexibility for either air or liquid cooling, thanks to a diverse array of heavyweight heat dissipation that keeps power delivery, M.2 drives and onboard components running cool under load, regardless of the available airflow.

4K Recording

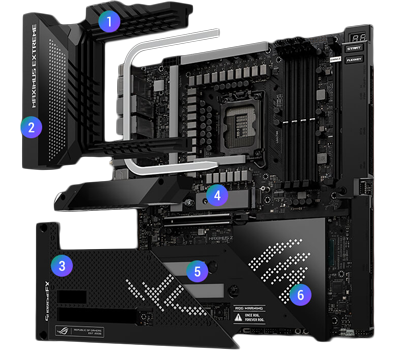

1. VRM heatsinkA VRM heatsink is placed on the MOSFETs and chokes, and the embedded heatpipe connects to the aluminium I/O cover.

2. Aluminium, I/O coverAn aluminium I/O cover is connected to the primary heatsink via an embedded heatpipe, increasing mass and surface area for dissipation.

3. Cold-forged heatsinkThe heatsink cover is crafted from pure aluminum to efficiently cool the two onboard M.2 drives

4. Solid-Steel BackplateThe steel, electro-galvanized, cold-rolled coil construction strengthens Maximus Z690 Extreme to prevent bending, and is finished in motherboard-matching black.

5. High-Conductivity Thermal PadA high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.

6. M.2 BackplatesDual M.2 slots feature back-plate blocks that ensure high-performance drives deliver peak performance even when airflow is restricted.

7. Chipset HeatsinkA dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.

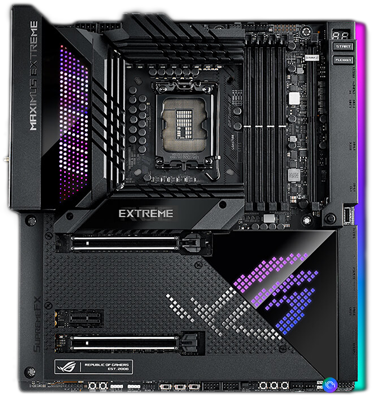

Cooler By Design

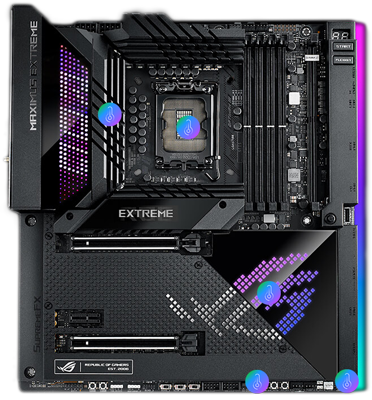

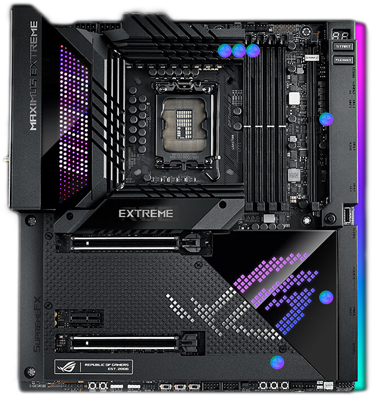

Multiple Temperature SourcesEach header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.

4-Pin PWM Headers Every onboard header auto-detects any PWM or DC fan, with three chassis fan headers offering ASUS HYDRANODE support.

Bundled ROG Fan controller A bundled fan controller card includes six additional DC and PWM fan headers, plus two thermal-probe headers.

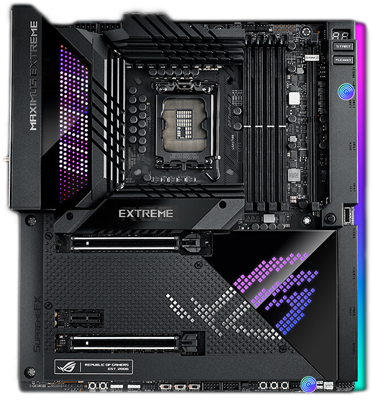

Water Pump+ A dedicated header can supply over 3 amps to a high-performance PWM or DC water pumps.

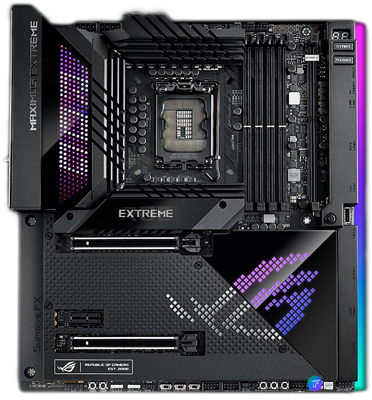

Water in/out A dedicated header enables monitoring of temperatures at the input/output points of any component.

Water Flow A dedicated header enables constant monitoring of flow rate throughout the entire loop.

True Performance Innovation

4K Recording

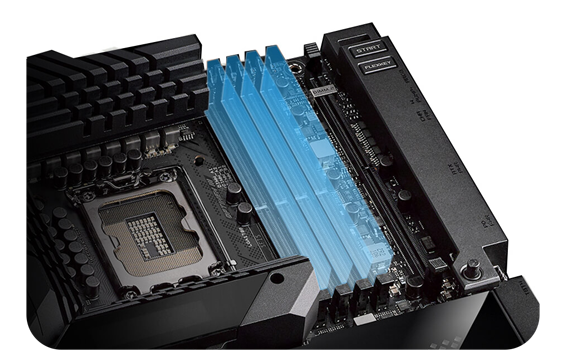

Welcome DDR5 MemoryA huge leap forwards for memory performance DDR5 memory has been unleashed. Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Maximus Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

Your Network at Light-Speed

4K Recording

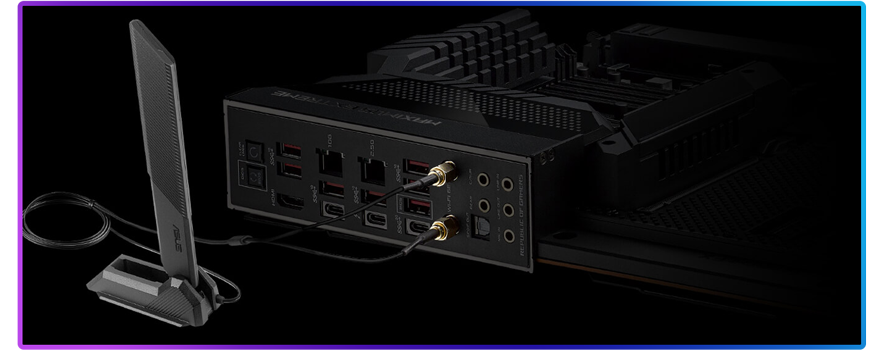

WIFI 6EOnboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

MARVELL® AQTION 10 GBPS ETHERNETDesigned to meet the demanding requirements of power users and content creators, 10 Gbps onboard Ethernet provides a new level of home networking. With up to 10 times the bandwidth of standard gigabit Ethernet, you'll enjoy streaming uncompressed 4K UHD videos and system backups and file transfers that are faster than ever before.

INTEL® 2.5 GB ETHERNETOnboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.

Maximise Your Storage Capabilities

down

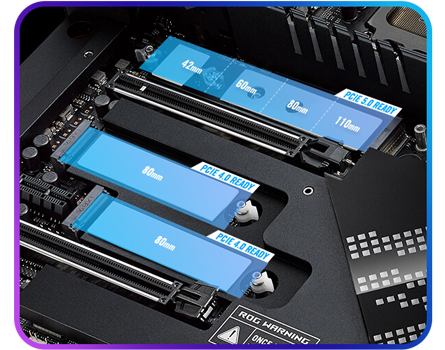

PCIe 5.0 ReadyROG Maximus Z690 Extreme is features three onboard M2 slots, with one offering support for the latest PCIe 5.0 SSDs.

up

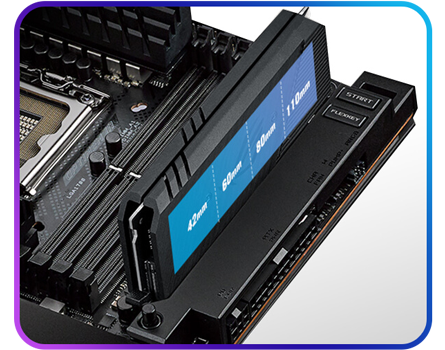

ROG DIMM.2The ROG DIMM.2 module is an innovative expansion card that allows two M.2 drives to be connected via a DDR4 interface. You can then add a metal heatsink, helping to control thermals for maximum performance while elevating aesthetics.

Aesthetics to Take Your Breath Away

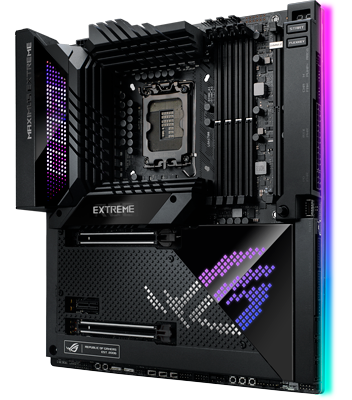

Aura SyncUp your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronised across compatible ROG graphics cards, monitors, mice and keyboards to give your setup a unified look.

4K Recording

Anime Matrix LEDThis innovative display features an RGB grid of mini LEDs that can be programmed to show off style with custom lighting designs, unique animations and live audio visualizations. Plus, distinctive soundwave lighting effects can even flash to the sound of a person’s voice.

LIVEDASH OLEDThe ROG Maximus Z690 Extreme includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, fan speeds or water-cooling information. You can also personalize the default OLED GIF with a preferred image or animation.

Fully Comprehensive Connectivity

4K Recording

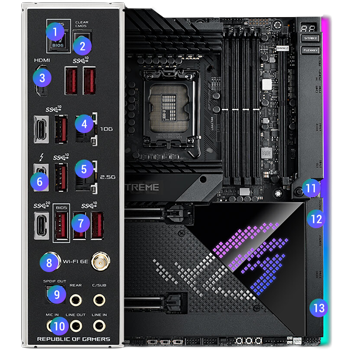

1. Bios Flashback

2. Clear CMOS

3. 1x HDMI

4. 10GB Ethernet

5. 2.5GB Ethernet

6. 1x Thunderbolt 4 USB Type-C

7. 8x USB 3.2 Gen 2 Ports

8. Wifi 6E

9. Optical S/PDIF Out

10. HD Audio Connectors

11. 1x USB 3.2 Gen2x2

12. 1x Thunderbolt 4 Type-C Port

13. 6x SATA 6GB/S

Specifications
Core Specifications
Edition ROG MAXIMUS Z690 EXTREME
Form Factor E-ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio ROG SupremeFX 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen5x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x PCIe 3.0 x1
  • 2 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 2-pin W_IN connector
  • 1 x 2-pin W_OUT connector
  • 1 x 24-pin (Power)
  • 1 x 3-pin W_FLOW connector
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin Radiator Fan Headers
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 6-pin ARGB Gen 2 Header
  • 1 x 6-pin PCIe (Power)
  • 2 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 1 x Aura RGB Header
  • 1 x BIOS Switch button
  • 1 x FlexKey Button
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode jumper(s)
  • 12 x ProbeIt Measurement Points
  • 1 x ReTry Button
  • 1 x RSVD Header
  • 1 x RSVD Switch
  • 1 x Safe Boot Button
  • 6 x SATA III - 6Gb/s
  • 1 x Slow Mode Switch
  • 1 x System panel connector
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
  • 1 x V-Latch Switch
  • 1 x WB_Sensor Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel (2.5GbE LAN)
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 5 x Audio I/O
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 1 x S/PDIF-Out (Optical)
  • 1 x Thunderbolt 4
  • 7 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi Module
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 277 x 490 mm
Note
Additional Information
Scan Code LN120777
Model Number ASUS ROG MAXIMUS Z690 EXTREME
GTIN 4711081462743
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
ASUS Intel Z690 ROG MAXIMUS EXTREME PCIe 5.0 E-ATX
ASUS Intel Z690 ROG MAXIMUS EXTREME PCIe 5.0 E-ATX
