DeepCool PX Series PX1000-G WH 1000Watt Fully Modular PCIe Gen 5 ATX3.0 80+ Gold PSU/Power Supply
1000W DeepCool PX Series PX1000-G WH, White, PCIe 5.0, 80PLUS Gold, Single Rail, 83.3A, 135mm Fan, ATX3.0 PSU
- SCANPROTECT Protect against installation damage for 28 days. More info

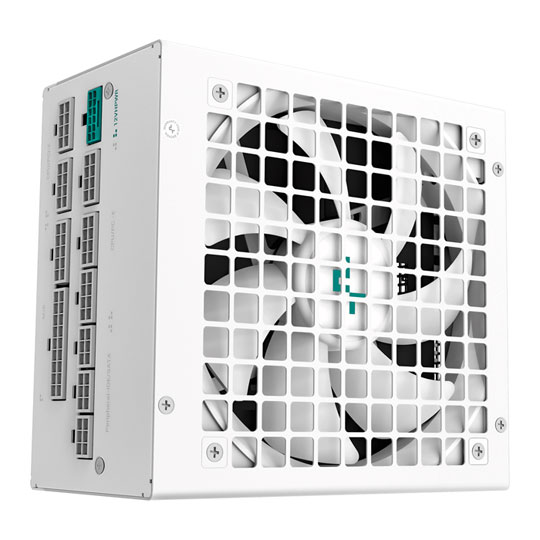

DeepCool PX1000G WH Power Supply
The DeepCool PX1000G WH is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1000G WH provides stable power for a wide range of components.
Past, Present, And Future
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1000G WH will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
Premium Quality
Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1000G WH will operate at altitudes up to 5000 meters above sea level.
Reliable Stability
Through the use of a dual main capacitor topology, the PX1000G WH can keep the hold-up time to = 16ms under full load.
PCI-E 5.0 Power Perfected
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G WH provides up to 600W for power hungry GPUS.
Static To Dynamic
The PX1000G WH comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
Peace Of Mind
The PX1000G WH includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, and UVP.
The Glory Of Gold
80 Plus Gold certified to ensure 90% efficiency under typical load conditions.
Features
• Type: ATX12V V3.0.
• Product Dimensions: 150×160×86mm (W x L x H).
• Efficiency certification: 80Plus GOLD/Cybenetics_GOLD.
• Fan Size: 135mmFan Bearing: FDB (Fluid Dynamic Bearing).
• Topology: Active PFC + Half Bridge SRC LLC + DC to DC.
• Capacitors: Full Japan Electrolytic Capacitors.
• Power Good Signal: 100-150ms.
• Hold Up Time: >16ms.
• Efficiency: >90% Under Typical Load(50% Loading).
• Protection: OPP/OVP/SCP/OTP/OCP/UVP.
• MTBF: 100,000 Hours.
