Sapphire Radeon RX480 AMD Polaris Graphics Card 8GB

8GB Sapphire Radeon RX 480, 14nm Polaris, PCIe 3.0, 8000MHz GDDR5, 1126MHz GPU, 1266MHz Boost, 2304 Streams, 3x DP/HDMI

Scan code: LN73044 Manufacturer code: 21260-00-20G Request call
Low stock
Pay on Scan Finance with a 10% deposit from just £6.03 / month (APR 15.9%)
review High End
Delivery options £5.48 By DPD On 3rd May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

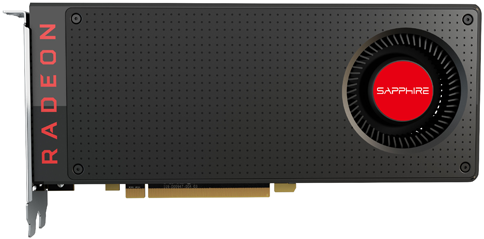

SAPPHIRE Radeon RX 480 Graphics Card

This is the Sapphire Radeon RX 480 that features impressive GPU power and effective technologies, AMD and Sapphire have come together and produced a truly outstanding graphics card. With great clock speeds and valuable tech embedded within this RX 480 is sure to enhance your gaming experience. You can even make use of Crossfire tech, to combine the power of multiple GPUs - for those graphic power enthusiasts.



Core Clock

Boost Clock


The Best of PC Gaming in a Single Chip

Polaris is a new graphic architecture embedded into the Radeon RX 480, it incorporates exciting features and improvements for nearly every area of a graphics chip. It enhances AMD’s Radeon 480 performance, smooth VR, seamless support for next-gen monitors and CPU-free game streaming or recording.


AMD Harness The Power Of Multiple GPU

With AMD’s Crossfire tech your Radeon RX 480 is capable of working along-side other compatible graphic cards. By applying multiple GPUs to your PC you can enhance the performance output dramatically. It boasts the ability to combine the power of two, three or even four graphics cards together, the perfect solution to those that demand extreme performance.


AMD Graphics FreeSync Technology

Every PC gamer knows how incredibly smooth gaming can be at a steady 60+ FPS. Now you can have that low-latency experience at virtually any framerate with AMD FreeSync monitors. The Radeon 480 features FreeSync tech that will free your games and their cinematics of screen tearing, and minimize stuttering.


RX 480 Connection Capabilities

2 x DisplayPort 1.4 | 1 x DVI-D DL | 2 x HDMI 2.0b

Chipset Radeon RX 480
Manufacturing Process 14 nm
Microarchitecture Polaris - Ellesmere XT
Streams 2304
Core Clock 1126 MHz
Boost Clock 1266 MHz
Memory Size 8GB
Memory Type GDDR5
Memory Clock 2000 MHz
Memory Speed (Effective with DDR) 8000 MHz
Memory Data Rate
Memory Bus 256 Bit
Memory Bandwidth
Cooling Solution Single Fan (1)
Cooler Design AMD Reference Design Blower Fan
Fitted/Included Backplate No
Interface PCIe 3.0 (x16)
  • 3 x DisplayPort 1.4
  • 1 x HDMI 2.0b
Maximum Digital Resolution 4096x2160
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
AMD CrossFire Support 2-Way CrossFire
AMD Freesync Support Yes
AMD FreeSync Version
Microsoft DirectX Support 12 API
HDR Support No
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power 150 W
Graphics Card Power Connectors 1 x 6-pin PCIe
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Dimensions 111 x 37 x 240 mm
Package Type Retail

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
TekSpek Guides
AMD Radeon RX480
AMD Radeon RX480
Date Issued: 29th Jun 2016

It's been a good start to the year for PC enthusiasts. Intel has unleashed the deca-core Core i7-6950X and Nvidia has served up a suitable partner in the form of the high-end GeForce GTX 1080. Handy, if you happen to have thousands of pounds to pour into your next PC, but for everyone else a more mainstream solution is needed to sate our appetites.

Read More

8GB Sapphire Radeon RX 480, 14nm Polaris, PCIe 3.0, 8000MHz GDDR5, 1126MHz GPU, 1266MHz Boost, 2304 Streams, 3x DP/HDMI is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Best value for money out there Beast of a card, no problem to play any title maxed at 1080p. Great service from Scan as well, will be buying again for sure
Date published: 2016-09-12
Rated 5 out of 5 by from Fantastic card for the price Very good card for the price you pay, it was not as good as it was hyped up to be but even with AMDs drivers which are not yet optimised it performs fantastically
Date published: 2016-06-30
  • y_2017, m_4, d_27, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_73044, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Driving a 2560x1600 DVI dual link monitor

I use a specialist Eizo CG303W screen that had only DVI inputs and am considering a good Open GL card for Adobe Photoshop. Is it likely that there will be some reliable adaptor that connects to an RX480 that would drive the screen ok? Thanks
Asked by: movinglight
Probably too late to answer your question but anyway. All you need is a DisplayPort to DVI Active Adapter Converter Cable. They are quite common, here is the scan version
Answered by: NorBdelta
Date published: 2017-02-26
