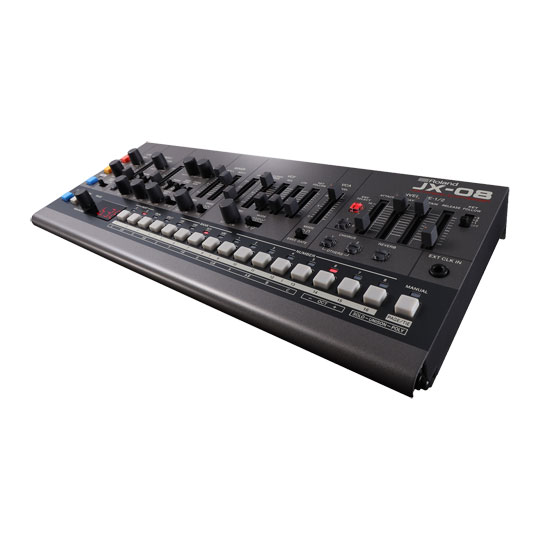

Roland - 'JX-08' Sound Module
Roland - 'JX-08' Sound Module, Two-part, 64-step polyphonic sequencer with motion recording
- SCANPROTECT Protect against installation damage for 28 days. More info
Roland - 'JX-08' Sound Module
An ’80s icon on your tabletopDebuted in 1985, Roland released the JX-8P and took hybrid synthesis to the next level with an innovative new analogue-digital voice. The instrument became an instant go-to by world-class session players, who continuously used its warm pads, shimmery chorus, and immersive textures into the era’s most popular tracks. The JX-08 introduces the unique sound of this sought-after classic in great detail, together with powerful new effects, a polyphonic sequencer, and more. To spark inspiration, there’s a full panel of hands-on controls taken from the companion PG-800 programmer unit for the original hardware.
Whilst the original design of the JX-8P is retained in this modern version, a range of updates have been added to take the experience up a level. Experience the 100-plus new patches tuned for contemporary styles, or use the onboard controls to create your own sounds. With expanded polyphony, two-part multitimbral capability, and dual/split modes, there’s even more possibility to expand your sonic ideas. When you’ve created a sound you like, use any of the 256 preset slots to store your creations for easy recall.
Amazing Features
• Two-part, 64-step polyphonic sequencer with motion recording, random pattern generator, and memory for 128 patterns
• 17 new effect types including JUNO-106 chorus, SDD-320 reverb, lo-fi comp, super filter, pitch shifter, and more
• Includes 32 presets from the original JX-8P plus 111 new presets
• Expanded polyphony compared to the original hardware
• Authentic JX-8P sound and behavior
Even Deeper Effects
Music That MovesThe JX-08 features 17 powerful effects, many of which are new to the Roland Boutique range. Add some gloss to your JX patches with classic chorus, phaser, and delay options, or get down and dirty with overdrive, fuzz, bit crusher, and the new lo-fi compressor. Filters and pitch shifters are also at hand to bring extra dimension and character to your sounds.
Once you’ve locked in your patches, fire up the two-part polyphonic sequencer and start programming leads, basslines, or basic chords to sync with other pieces in your electronic ensemble. To add some animated movement to your sounds, tap into motion recording and the onboard arpeggiator to make your musical lines dance.
MIDI, USB & External Clock Input
Versatile ConnectivityThe JX-08 has a built-in USB-C audio/MIDI interface, allowing you to play, record, and synchronize with all styles of computer production software. Full-size MIDI I/O is also available for interfacing with other MIDI hardware.
You even get an external clock input for driving the JX-08’s onboard sequencer and arpeggiator from vintage analogue instruments and modern Eurorack systems.
Hit The Road
Travel-Friendly DesignThe JX-08 is compact enough so it can sit just about anywhere and is easily controlled from a master keyboard or computer DAW. It can run on standard AA batteries for hours of uninhibited jamming, you also get a built-in speaker for on-the-go sound monitoring.
Add a DK-01 Boutique Dock for a polished look and three convenient tilt positions, or grab a K-25m Keyboard Unit to create a fully self-contained, portable instrument.
The Tech Spec
| Features | Specification | User Memory | Sound Patch: 256 Pattern: 128 |
|---|---|
| Controllers | Rear Panel: Power switch, VOLUME knob LFO Section: RATE knob, DELAY TIME knob, WAVE FORM switch DCO-1 Section: LFO slider, TUNE knob, RANGE switch, WAVE FORM switch DCO-2 Section: LFO slider, TUNE knob, FINE TUNE knob, RANGE switch, WAVE FORM switch, CROSS MOD knob, DCO-1 ENV knob, DCO-2 ENV knob, MODE switch MIXER Section: DCO-1 slider, DCO-2 slider, ENV knob, MODE switch VCF Section: HPF slider, CUTOFF FREQ slider, RES slider, LFO slider, KEY FOLLOW slider, ENV knob, MODE switch VCA Section: LEVEL slider, MODE switch VCA Section: LEVEL slider, MODE switch ENVELOPE-1/2 Section: ENV SELECT 1, 2 buttons, ATTACK slider, DECAY slider, SUSTAIN slider, RELEASE slider, KEY FOLLOW switch PORTAMENTO Section: MODE button, TIME knob EFFECT Section: CHORUS 1, 2 buttons, REVERB button ARPEGGIO button, NOTE button, SEQ button, START button, MENU button, VALUE knob, PART A, B buttons, DUAL button, SPLIT button, BANK 1(5)--4(8) buttons, NUMBER 1--8 buttons, MANUAL button |
| Effects | Chorus: 3 Delay: 4 Overdrive FUZZ Drive Bit crusher LOFI Comp Phaser: 2 Filter Pitch Shifter: 2 |
| Display | 7 segments, 4 characters (LED) |

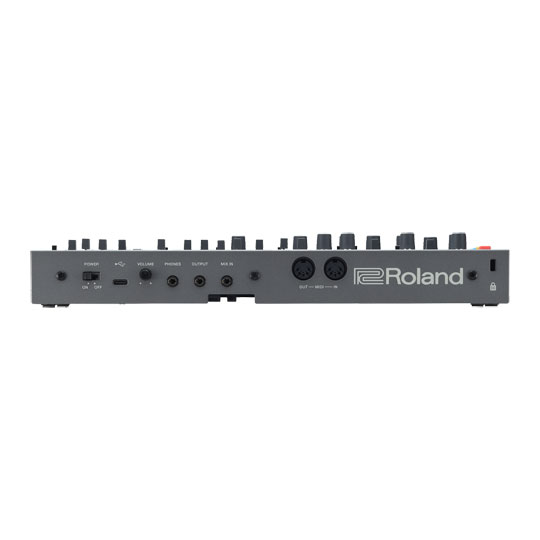

| Connectors | EXT CLOCK IN jack: Mono miniature phone type PHONES jack: Stereo miniature phone type OUTPUT jack: Stereo miniature phone type MIX IN jack: Stereo miniature phone type MIDI (IN, OUT) connectors| USB port: USB Type-C(R) (Audio, MIDI) |
| Power Supply | Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4 USB bus power |
| Current Draw | 500 mA (USB bus power) |
| Expected battery life under continuous use | Ni-MH battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.) This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. |
| Dimensions | 300 (W) x 128 (D) x 47 (H) mm 11-13/16 (W) x 5-1/16 (D) x 1-7/8 (H) inches |
| Weight (including batteries) | 895 g 2 lbs |
| Accessories | Quick Start Leaflet "USING THE UNIT SAFELY" Alkaline battery (AA, LR6) x 4 |
| Options (sold separately) | Keyboard unit: K-25m Boutique Dock: DK-01 |
