Digital Classic. Modern Flair.

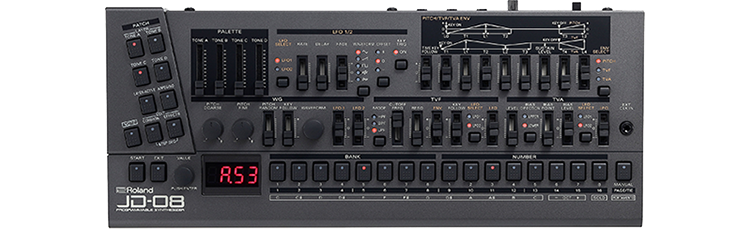

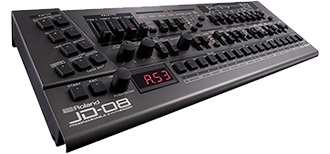

Roland - JD-08
Authentic recreation of the Roland JD-800 synthesiser
in a modern, portable instrument!
With its retro workflow, evocative sounds, and powerful effects, the JD-800 was a favorite for top electronic music producers through the ’90s and beyond. Combining the original JD-800 waveforms with advanced modeling techniques, the JD-08 delivers the exquisite hands-on sound design of the original, along with hugely expanded polyphony, a two-part polyphonic sequencer, and other modern updates.
Inspiring sound design
at your fingertips.By the early ’90s, preset-driven digital synths with limited hands-on controls dominated the landscape. The JD-800 changed all that in 1991, bringing the synthesiser world back to its roots with a control-laden panel and an aggressively electronic sound palette. The JD-08 includes 64 presets from the original hardware and perfectly recreates the four-tone structure, 108 waveforms, and unique two-part multi-effects that are at the core of the JD-800’s intricate, evolving sound.
64 StepsSequencer
6 HrsBattery Life
64Original Presets
at a glance
• Authentic sound and behavior of the original JD-800 realized with advanced sound modelling
• Two-part, 64-step polyphonic sequencer with motion recording, random pattern generator, and memory for 128 patterns
• 108 original waveforms for extensive patch design possibilities
• Includes the original 64 presets plus 21 new presets
• Two-part multitimbral with expanded polyphony
• Four-part structure for tone layering
• Onboard arpeggiator
Expanded Sound For The Modern Age
256 memory locationsWhile the original design of the JD-800 is retained in this modern version, there are a range of updates that take the experience to another level. New patches plus 256 memory locations let you dive deep into the huge array of controls to create new sounds for your music.
And with expanded polyphony and two-part multitimbral capability, there’s even more room to stretch out your sonic ideas.
MIDI, USB, and External Clock Input
built-in USB-C audio/MIDI interfaceThe JD-08 features a built-in USB-C audio/MIDI interface, so you can play, record, and synchronize with all types of computer production software. Full-size MIDI I/O is also available for interfacing with other MIDI hardware. There’s even an external clock input for driving the JD-08’s onboard sequencer and arpeggiator from vintage analogue instruments and modern Eurorack systems.
Grab your keys. Hit the road.The compact JD-08 fits just about anywhere and is easily controlled from a master keyboard or computer DAW. It can run on standard AA batteries for hours of uninhibited jamming, and there’s also a built-in speaker for on-the-go sound monitoring. Add a DK-01 Boutique Dock for a polished look and three convenient tilt positions, or grab a K-25m Keyboard Unit to create a fully self-contained, portable instrument.

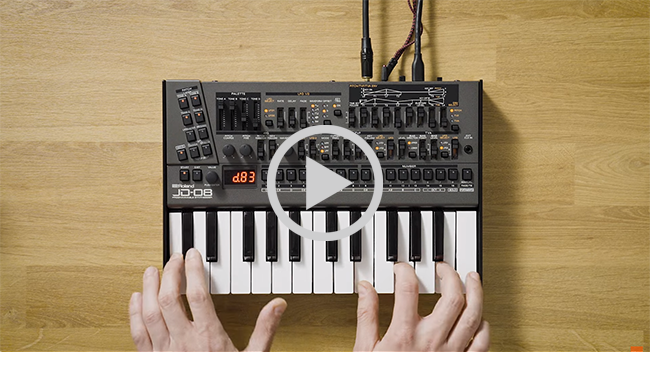

Roland Boutique JD-08 Synthesiser
Overview and Demo
a tool for the modern workflowThe compact-yet-powerful JD-08 Boutique updates the iconic JD-800 synthesiser for your modern workflow. Known for its extensive hands-on controls and an unapologetically electronic sound palette, the JD-800 helped define the sounds of the ‘90s and beyond. The JD-08 faithfully recreates the vintage instrument using the 108 original waveforms and advanced modeling techniques to deliver the signature JD sound design workflow. Plus, modern upgrades, including expanded polyphony and a two-part polyphonic sequencer, give you deeper music creation and editing freedom.
The compact JD-08 fits just about anywhere, and with updated USB-C audio/MIDI and full-sized MIDI jacks, you can play and synchronize with almost any piece of gear. There’s also an external clock input to sync to vintage analogue instruments or modern Eurorack systems.
Add the legendary JD-800 experience to your modern studio with the JD-08 Boutique model.
The Tech Spec
| Features | Specification | User Memory | Sound Patch: 256 Pattern: 128 |
|---|---|
| -Controllers | Rear Panel POWER switch VOLUME knob |
| PALETTE Section | TONE A--TONE D sliders |
| LFO Section | LFO SELECT button RATE slider DELAY slider FADE slider WAVEFORM button OFFSET button KEY TRIG button |
| WG Section | PITCH COARSE knob PITCH FINE knob PITCH RANDOM slider KEY FOLLOW slider WAVE FORM knob LFO 1 slider LFO 2 slider |
| PITCH/TVF/TVA ENV Section | TIME KEY FOLLOW slider T1--T4 sliders L1--L4 sliders SUSTAIN LEVEL slider ENV SELECT button |
| TVF Section |
MODE button CUTOFF FREQ slider RESO slider ENV slider KEY FOLLOW slider LFO SELECT button LFO slider |
| TVA Section | LEVEL slider BIAS DIRECTION button BIAS POINT slider BIAS LEVEL slider LFO SELECT button LFO slider |
| TONE A--TONE D buttons | LAYER-ACTIVE button ARPEGGIO button NOTE button COMMON button EFFECTS button START button EXIT button VALUE knob BANK 1--8 buttons NUMBER 1--8 buttons MANUAL button |
| Effects | Distortion Phaser Spectrum Enhancer Delay Chorus Reverb |
| Step Sequencer | 64 steps 4 notes (Polyphonic) |
| Display | 7 segments, 4 characters (LED) |

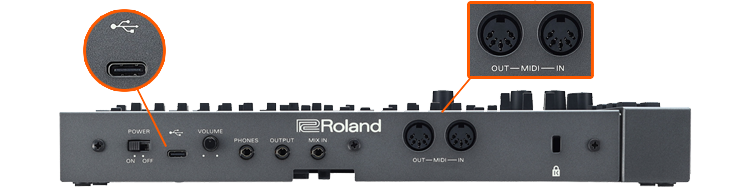

| Connectors | EXT CLOCK IN jack: Mono miniature phone type PHONES jack: Stereo miniature phone type OUTPUT jack: Stereo miniature phone type MIX IN jack: Stereo miniature phone type MIDI (IN, OUT) connectors USB port: USB Type-C(R) (Audio, MIDI) |
| Power Supply | Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4 USB bus power |
| Dimensions | 300 (W) x 128 (D) x 49 (H) mm 11-13/16 (W) x 5-1/16 (D) x 1-15/16 (H) inches |
| Weight (including batteries) | 840 g 1 lb 14 oz |
| Accessories | Quick Start Leaflet "USING THE UNIT SAFELY" Alkaline battery (AA, LR6) x 4 |
