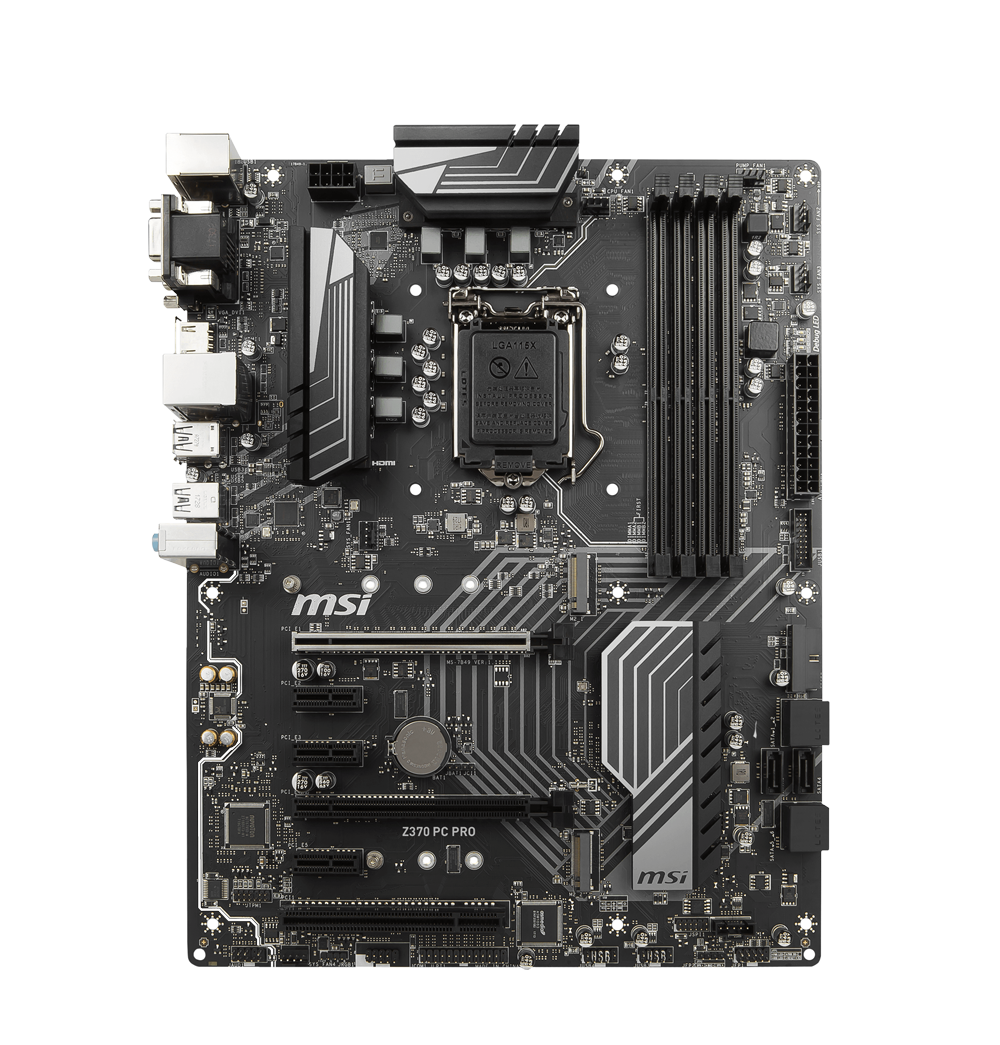

MSI Intel Z370 PC PRO Coffee Lake ATX Motherboard

MSI Z370 PC PRO, Intel Z370, S 1151, DDR4, SATA3, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX

MSI
Scan code: LN84375 Manufacturer code: Z370 PC PRO Request call
£107.48
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End

There are 6 people viewing this product

Free Delivery Delivery options Free By DPD On 13th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Z370 Gaming Motherboard - MSI PC PRO - Intel 8th Gen

MSI Z370 PC Pro

ATX Gaming Motherboard - PC PRO Series

Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.

Please note: Z370 Motherboards are ONLY compatible with Intel 8th Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z370
Chipset

1151
CPU Socket

8th Gen Only
Compatable CPUs

ATX
Form Factor

Features on the PC PRO Z370

Maximus X Features
  1. 2x USB 2.0 & PS/2 Combo Port
  2. DVI-D & VGA Port
  3. HDMI
  4. 4x USB 3.1 Gen1
  5. Lightning USB 3.1 Gen2
  6. HD audio jacks
  7. Heavy plated heatsinks - Leading heatsinks design, for maximum cooling
  8. DDR4 Boost - Optimized traces and isolated memory circuitry
  9. PCI-E Steel Armor - Protecting VGA cards against bending and EMI
  10. Turbo M.2 - NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
  11. Audio Boost with amplifier - Optimized audio using the best components, 120 dB SNR 32-bit

Beyond VR Ready

VR Ready

Complete your Immersion

From the start of Virtual Reality, MSI has been deeply involved in making VR Ready hardware in each of its product lines. Whether it's a feature-rich motherboard, a framerate boosting graphics card or a blazing fast complete gaming system, a huge set of VR-supporting features awaits you. Both hardware and software need to be in tune for a smooth VR experience. One Click to VR makes it very fast and easy to get primed for VR. A single click sets all your key components to their highest performance and makes sure other software applications won’t impact your virtual adventure.

Personalise your Gaming Rig

Mystic RGB Lighting

With multiple colors available, you are the artist to create your own unique gaming rig. Done selecting colors? Choose between several LED effects to really make your system come alive and enjoy your personalized design! Customize and set up your own color scheme with MSI Mystic Light utility. Select the available colors from the palette to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

Mystic Light RGB Sync LED Effects

Mystic - No Animation

No Animation

Mystic - Breathing

Breathing

Mystic - Flashing

Flashing

Mystic - Double Flashing

Double Flash

Mystic - Random

Random

Mystic - Off

Off

Syncronize your LED Experience

With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards and mice or RGB system fans.

Smartphone & PC Control

Gaming App

Control the LED Lighting

Create your own colorful masterpiece with ease. The easy to use MYSTIC LIGHT APP is available on PC, phone and tablet. It offers remote control, simply using your smartphone or tablet. Make your PC look and feel brand new with any color you want with just a few clicks.

Stay Cool woth PC Pro

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max. High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance at all times.

Fan Headers

Fully Controllable Fan Headers

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool & silent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

DC or PWM Modes

DC or PWM Mode with Hysteresis

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

Control Fans

Total Control in BIOS and Software

Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

Watercooled Ready

Optimized for Water Cooling

Designed to support the most popular All-In-One & custom water cooling solutions. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked zone allows for easy and safe installation.

4K UltraHD with Multi GPU

Multi GPU - 4K UHD

Get More Performance

The MSI PC Pro is catered to gaming enthusiasts that are always looking for more performance, using multiple GPUs is a great way to get that. MSI motherboards fully support multi GPU technologies and have optimal PCI-E slot placement for the best thermal performance. To Get the best from this use MSI Graphics Cards. This will also allow you to get 4K UHD playback and gaming.

Ultrafast M.2 Connectivity

m.2 SSD

Speed up with onboard M.2 up to 32Gbps

Enjoy a blazing fast system boot up and insanely quick loading of applications and games with MSI motherboards. Delivering speeds up to 32Gb/s per device using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection. With the easy M.2 Genie you can set up multiple SSDs in RAID 0 and get speeds up to 300% faster.

m.2 SSD

Intel® Optane™ Memory

Intel Optane Ready

Advanced performance with the Optane Cache Memory

Intel Optane™ is a revolutionary non-volatile memory technology supported by Prime Z370-A. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

Unmatched Memory Performance

Performance Memory

Advanced performance with the Optane Cache Memory

MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files.

MSI Lightning USB

USB Type-C

Reversible Type-C Connection

Using multiple USB 3.1 devices has never been faster! Featuring the Lighting ASmedia 3142 USB 3.1 Gen2 controller, MSI motherboards offer never before seen USB speeds when connecting multiple USB devices at the same time. The Lightning USB connectors are covered with gold to ensure a bitter signal and performance. Also get all the performance benefits from USB 3.1 combined with the convenience of the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

Intel Intelligent Ethernet

Intel Ethernet

Stable, Secure Networking

This model comes equipped with a premium network solution from Intel®. The high quality Gigabit LAN networking component is optimized for professional and multimedia use with outstanding performance to deliver a secure, stable and fast network connection.

MSI Motherboard LAN Protect

LAN Protection

Stable, Secure Networking

Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, the LAN Protect connector is designed to give you a reliable networking experience.

Professional Gaming Audio

SupremeFX

Amplify your In-Game Audio with Audio Boost

Built on years of experience in building motherboards dedicated to giving gamers true Hi-Fi sound. Audio Boost has developed into a high quality audio unit, offering a clear advantage over your opponents when gaming. Locate your enemies with your eyes closed using Audio Boost. Audio Boost is powered by an EMI-shielded high quality HD audio processor, making sure you enjoy the purest sound quality in both stereo and surround sound.

Built on Everlasting Quality

Quality Components

Super Stable with the Highest Quality Components

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard. MSI uses Military Class 5 components, which is the latest evolution of the industries’ highest quality standard. These high quality components are shielded by the best protection to make sure your system runs smoothly under the most extreme conditions.

TITANIUM CHOKE
Ti chokes run much cooler and deliver a 30% improvement in power efficiency, allowing for better overclocking and stability.

SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

DARK CHOKE
A special core design allows the Dark Choke to run at a lower temperature offering better power efficiency and stability.

Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 1 x PCI
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x Parallel Port (LPT) Header
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
