MSI AMD MEG X670E ACE E-ATX Motherboard
MSI MEG X670E ACE, AMD X670, S AM5, DDR5, SATA3, PCIe 5.0, 4x M.2, 10GbE, AMD EXPO™, E-ATX
Email me when the availability or price changes

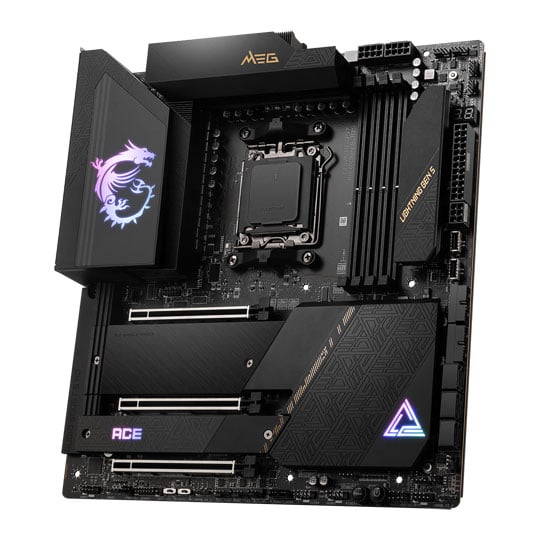

MSI MEG X670E ACE AM5 E-ATX Motherboard

Ready For the 7000 SeriesThe MEG X670E ACE heralds furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD X670 chipset and brand-new 7000 series processors by combining elite hardware system support and premium durability, the MEG X670E ACE boasts, an extreme 22+2+1 phase aggressive power design, a maximum of 6x M.2 connectors for maximum storage, outstanding cooling solution combining MSI exclusive technologies with Frozr AI cooling, 10G super LAN, WIFI 6e connectivity and PCIe 5.0 support to help you get the maximum performance straight from your CPU the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking, memory, processor, and graphic cards at the highest level.
AMD X670EChipset
AM5CPU Socket
AMD Ryzen™ 7000 SeriesCompatible CPU
E-ATXForm Factor
Outstanding Cooling Solution


Fin Array Design

M.2 Shield Frozr

MOSFET Baseplate

Direct-Touch Heatpipe

PCH Heatsink
High-Speed Transmission


10G
SUPER LAN

WIFI
6E

PCIE 5.0
Slots

DDR5
Memory Support

Front USB
20G Type-C

Quadruple
M.2

M.2 XPANDER-Z
GEN5 DUAL
A Stable Cornerstone for Your System


Metal
Backplate

Steel PCIe
armor

Smart
Button

Screwless
M.2

preinstalled
IO Shield

Advanced
SMT Process

Magnetic
M.2 Shield Frozr

22+2+1
Power Design

8 Layer
PCB
Massive Cooling Potential
1. Stacked Fin ArrayThe stacked fin array design increases heat dissipation by up to 50%, by increasing the maximum surface of heat dissipation.
2. Direct Touch HeatpipeConnect two MOS heatsinks to enlarge the surface of heat dissipation.

3. Double-Side M.2 FrozrDouble-sided M.2 thermal solutions keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
4. MOSFET BackplateThe large backplate cools down the overall MOSFET temperatures with a solid metal design.
5. 7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.
6. Enlarged PCH HeatsinkMSI replaced the PCH fan with an enlarged heatsink design to reduce dust and noise whilst still maintaining high heat dissipation efficiency.
Aggressive Power Design

22 PhaseVCore 90A Power Stage
2 PhaseSOC Power
1 PhaseMISC Power
22+2+1 DUET RAIL POWER SYSTEMUnleash and sustain the maximum performance with a flagship VRM design built with a total of 22+2+1 Duet Rail Power System(DRPS). Combining dual power connectors and 90A Power Stage, the MEG X670E ACE is ready to break the world record.
Meet The Latest Generation

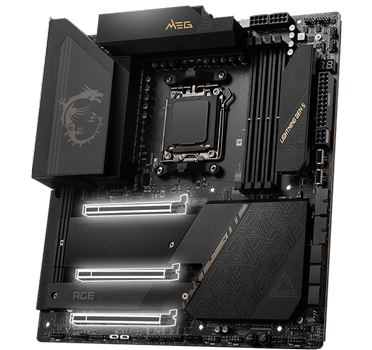

LIGHTNING GEN 5 PCI-ESay hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.
SMT PCIe 5.0 SlotThe advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.
Maximise Your Storage Capabilities

Fast and future ready storageMSI MEG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

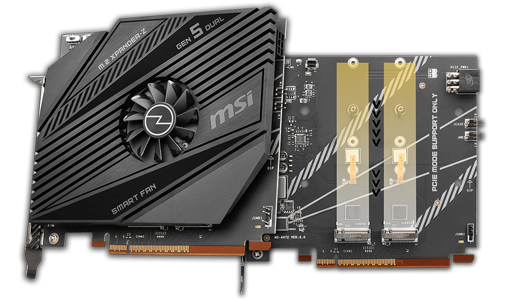

Bundled PCIe Express Card

M.2 XPANDER-Z GEN5 DUALThis PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking.

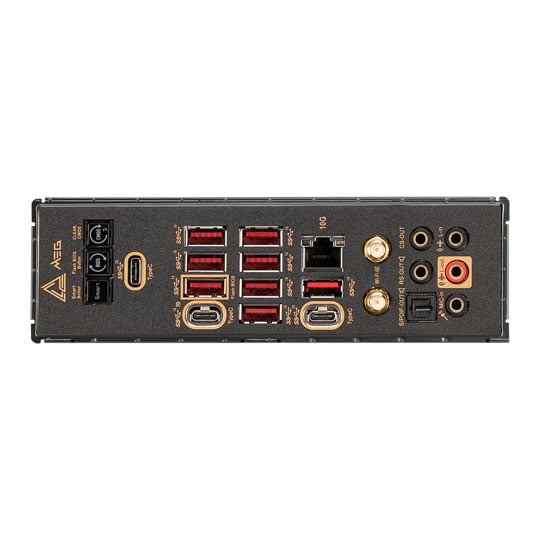

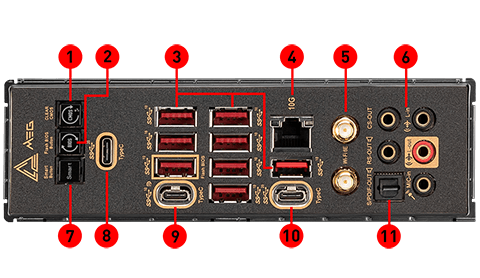

Fully Comprehensive I/O Panel

Rear:
1: Clear CMOS Button
2: Flash BIOS Button
3: USB 3.2 Gen 2 10Gbps (Type-A)
4: 10G Super LAN
5: Wi-Fi / Bluetooth
6: HD Audio Connectors
7: Smart Button
8: USB 3.2 Gen 2x2 20Gbps (Type-C)
9: USB 3.2 Gen 2 10Gbps (Type-C Display port)
10: USB 3.2 Gen 2x2 20Gbps (Type-C)
11: Optical S/PDIF-Out
