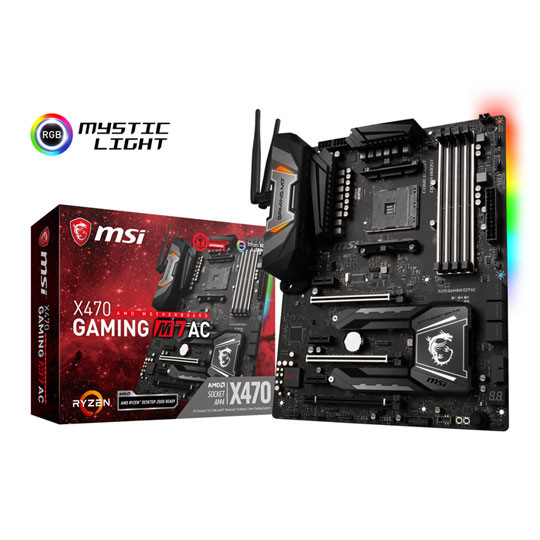

MSI AMD Ryzen X470 GAMING M7 AC WiFi AM4 ATX Motherboard

MSI X470 GAMING M7 AC, AMD X470, S AM4, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, GbE/WiFi, USB3.1 Gen2 A+C, ATX

Thumbnail 1 : MSI AMD Ryzen X470 GAMING M7 AC WiFi AM4 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen X470 GAMING M7 AC WiFi AM4 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen X470 GAMING M7 AC WiFi AM4 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen X470 GAMING M7 AC WiFi AM4 ATX Motherboard MSI AMD Ryzen X470 GAMING M7 AC WiFi AM4 ATX Motherboard : video thumbnail 1 MSI AMD Ryzen X470 GAMING M7 AC WiFi AM4 ATX Motherboard : video thumbnail 2
Scan code: LN89132 Manufacturer code: X470 GAMING M7 AC
£237.98Item currently awaiting an ETA
Pre order
From £11.43 / month (APR 14.9%)
Monthly Payment: £41.30
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £237.98
Total inc. interest: £247.76
Monthly Payment: £21.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £237.98
Total inc. interest: £256.35
Monthly Payment: £14.74
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £237.98
Total inc. interest: £265.17
Monthly Payment: £11.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £237.98
Total inc. interest: £274.11
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £5.94 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview MSI X470 GAMING M7 AC AMD AM4 ATX Motherboard Features Mystic Light and Sync
Personalize your PC with 16.8 million colours / 17 effects controlled in one click!

AMD Turbo USB 3.1 Gen2
Powered by AMD, ensure an uninterupted connection with more stability and fastest USB speeds.

Dual 8 Pin Power Supply
By providing dual 8 pin connectors to ensure adequate power supply to unleash ultimate multi-core CPU performance.

Audio Boost 4
Isolated audio with a high quality audio processor for the most immersive gaming experience.

Turbo M.2
Running at PCI-E Gen3 x4 maximises performance for MVMe based SSDs.

Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.

DDR4 Boost with Steel Armour
Fully isolated and shielded DIMM slots to deliver pure data signals for the best gaming performance and stability.

Game Boost
One second automated overclocking. Turn the dial or use the Gaming App and your PC gets another adrenaline shot.

EZ Debug LED
Easiest way to troubleshoot.
Specifications
Core Specifications
Edition X470 GAMING M7 AC
Form Factor ATX
CPU Socket AM4
Chipset AMD X470
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3L - 2933(OC)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2666
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230 (Occupied by WiFi Card)
  • 1 x M.2, 2242/2260/2280, PCIe 2.0/SATA
  • 1 x M.2, 2242/2260/2280, PCIe 3.0
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin JCORSAIR connector
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin RGB LED connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x OC button
  • 1 x Power button
  • 1 x Reset Button
  • 6 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Killer E2500 (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB 3.1 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 304.8 x 243.84 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
Loading Please Wait

Please wait . . .

Reviews
MSI X470 GAMING M7 AC, AMD X470, S AM4, DDR4, SATA3, Dual M.2, 2-Way SLi/3-Way CrossFire, GbE/WiFi, USB3.1 Gen2 A+C, ATX is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Fantastic performance with a tasteful and stylish look. I bought this board after my B350M board developed a fault, and it has been my first board over £100. This board has the feel of a premium product while unboxing, with more accessories than you will ever need all in flat black and high quality materials used throughout the packaging and accessories. Unwrapping the board itself shows a full matte black PCB with black and dark grey covers and heatsinks, as well as the silver accents from the ram and pci-e slots. Together with the minimal and tasteful RGB LEDs along the edge and back of the board, it has a subtle but stylish look to it, which can be complemented with extra RGB components and mods or left plain and look just as good. As for performance, it has not missed a beat in the past 4 months of use. I have paired this board with an AMD 1700X and Vega 64, with an EVGA 750 P2 Power supply. I have a fairly bad sample CPU, but this board has managed to achieve a slightly higher overclock of 3.9Ghz at 1.35V for everyday use. Pushing it further I managed to achieve 4Ghz but not perfectly stable, however on my previous board I would struggle similarly at 3.95Ghz. VRM temps are also no longer a worry, as previously they would hit over 100C alarmingly fast. I have had more success with RAM on this board then previously. I am currently using some corsair 2400Mhz sticks which have been set to 3000Mhz and run stable without altering any timings or voltages in BIOS. I had plenty of trouble on my last board trying to run some 3200Mhz rated Adata sticks at 3000Mhz with the same CPU. The bios has also improved since I purchased the board. There is now support for voltage offset, which was missing from MSI boards for some time. There is a slew of overclocking features on the board which I have not used yet as well as some nice useful features should the need arise. The best example of this is the cmos clear button on the back, and the Flashback+ feature, which allows you to update BIOS without a cpu installed (could be very useful with upcoming releases)! With other aspects of the board, it has all worked as you wouyld expect a premium motherboard to do. Plenty of Sata slots, M.2 NVME drives running at maximum speed and enough fan headers for all my fans. The bluetooth and wifi works well, I have not had any issues since I installed the board and windows automatically installed drivers. My only criticisms of this board are the diagnostic LEDs and the Mystic light software. Using the latest software, there is no way to turn off the green, red and white LEDs showign the user which fan headers are in use, what overclocking method is used and the red motherboard segment display showing codes. The board has a very handy corsair rgb header, however the controls in Mystic light for control of RGB strips are minimal, and there is no way for me to set one colour with a breathing effect as I desired, or to have many of the usual RGB settings. It mostly has preset rainbow wave and pulse settings. If better support could be added in a future update to Mystic light it would greatly improve the usefulness of this motherboard header. The motherboard LEDs work great however, no complaints there. To summarize, I think this is a fantastic board that does everything you would want a high end board to do while looking great. It has a couple annoying shortcomings in its lighting software but otherwise it has been everything I would want in a motherboard, all at a slightly lower price than it's competitors at the time of my purchase.
