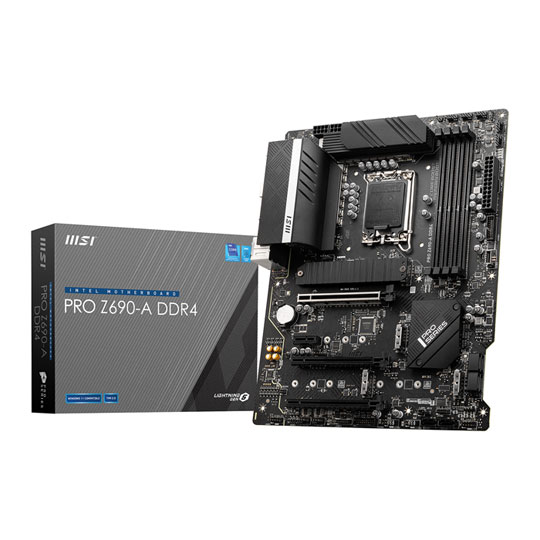

MSI PRO Z690-A DDR4 ATX Motherboard

MSI PRO Z690-A DDR4, Intel Z690, S 1700, DDR4, SATA3, PCIe 5.0, 4x M.2, 2.5GbE, USB 3.2 Gen2x2, ATX

Thumbnail 1 : MSI PRO Z690-A DDR4 ATX Motherboard Thumbnail 2 : MSI PRO Z690-A DDR4 ATX Motherboard Thumbnail 3 : MSI PRO Z690-A DDR4 ATX Motherboard Thumbnail 4 : MSI PRO Z690-A DDR4 ATX Motherboard
Scan code: LN120175 Manufacturer code: PRO Z690-A DDR4
£189.98
Order now and receive it by Wednesday, 1st December
From £15.84 / month (APR 0%) or 0% for 4 months
Monthly Payment: £15.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £189.98
Total inc. interest: £189.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 1st Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

PRO Z690-A DDR4 12th Generation Intel ATX Motherboard from MSI

MSI Z690

Business Elegance Redefined Meet the Pro Z690-A DDR4; here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MSI Z690 Pro-A DDR4 is perfect for both daily users and performance enthusiasts and is filled with the latest technologies including; the very latest 5th generation PCI-e solution, huge storage options with 4x m.2 slots (3x PCIe Gen4x4, 1x PCIe Gen3x4), lightning 20G USB connectivity, Core & DDR4 Memory boosts, extended heatsink design, M.2 thermal solution, Ez debug LEDs, Frozr AI cooling and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

ATXForm Factor

Special Features of the Pro Z690-A DDR4

4K Recording
down

Core Boost
Technology
Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

up

Digital
PWM
High quality digital power IC ensures your system runs smoothly even under extreme loads.

up

6 layer
PCB
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability with zero compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Next Generation Connectivity with MSI

4K Recording
down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivering a better network experience.

up

Lightning USB 20GBuilt-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

up

Memory BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

up

All-New PCI-e 5.0 The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.

Premium Thermal Solution

4K Recording
up

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

up

Enlarged HeatsinkMSI extended PWM heatsink and enhanced circuit design ensures even high-end processors can run at full speed.

Aggressive Power Design

4K Recording

2x 8PinCPU Power connectors

14 Duet Rail CPU PowerSystem

1 PhaseAux Power

1 PhaseGT Power

Digital PWM IC

14 + 1 + 1 DUET RAIL POWER SYSTEMUnleash, squeeze and sustain maximum CPU performance with concurrent stable power delivery and aggressive VRM design Combining 2x 8-pin power connectors and exclusive MSI Core Boost technology, Pro Z690-A motherboards are ready to sustain heavy daily loads.

Additional Thermal Protection

4K Recording

Extended HeatsinkThis all metal extended heatsink increases the overall available surface area of heat dissipation, ensuring that heat is removed quickly and efficiently from your motherboard allowing your CPU to take on the highest of demands.

Incredible Storage Options

4K Recording

LIGHTNING GEN 4 M.2 WITH M.2 SHIELD FROZRCooling your NVMe SSD reduces throttling which results in higher overall storage performance. MSI Motherboards feature exclusive Frozr technology offering some the best thermal protection available on the market.

The Next Generation

4K Recording

Lightning Gen 5 PCI-EMSI Lightning Gen 5 PCI-E takes the theoretical bandwidth of a x16 interface to whopping 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot reduces any interference and electrical noise, fully supporting the higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

Fortify Your System

4K Recording

MSI Steel PCIe ArmourMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points are capable of supporting even the weight of the heaviest graphics cards. Plus when every advantage in games counts, Steel Armor protects the point of contact from external electromagnetic interference.

A Fully Comprehensive I/O

4K Recording

1. PS/2 Combo Port

2. DisplayPort

3. 4x USB 2.0

4. RJ-45

5. Flash Bios

6. HDMI

7. 2x USB 3.2 Gen1

8. 1x USB 3.2 Gen2x2

9. 1x USB 3.2 Gen2

10. Audio Connectors

Specifications
Core Specifications
Edition
Form Factor
CPU Socket
Chipset
RAM Memory Support
Memory Type
Memory Channel
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions
