MSI PRO B850M-P WiFi AM5 DDR5 PCIe 5.0 microATX Motherboard

MSI PRO B850M-P WiFi, AMD B850, AM5, DDR5, PCIe 5.0, 3x M.2, 5GbE, Wi-Fi 7, USB 3.2 Gen2, AMD EXPO, mATX
MORE INFO
MORE INFO

Scan code: LN165209 Manufacturer code: PRO B850M-P WIFI
£154.99
£5.48 Next day delivery
Item currently awaiting an ETA
Pre Order
Pre order
Pay in 3 interest-free payments of £51.67

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £14.05 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

B850M-P WIFI DDR5 PCIe 5.0 AMD MicroATX Motherboard from MSI

B840-P WIFI

Empower Your WorkflowThe MSI PRO B850M-P WIFI motherboard, with its adaptable silver colour scheme that blends in perfectly with both black and white system designs, offers a sophisticated solution for PC builders and tech enthusiasts. Engineered with cutting-edge MSI technologies, this motherboard boasts advanced features including true Wi-Fi 7 with intuitive EZ Antenna, lightning-fast 5G LAN, PCIe 5.0 M.2 slot with EZ M.2 Shield Frozr II for optimal SSD cooling, and supplemental PCIe Power. Specifically designed to support the latest AMD Ryzen™ 9000 series processors, the PRO B850M-P WIFI represents a perfect fusion of aesthetic elegance, robust networking capabilities, and high-performance computing potential. MSI is ready for the latest generation.

B850AMD Chipset

AM5CPU Socket

DDR5 DIMMMax. 256GB (Dual Channel)

Micro-ATXForm Factor

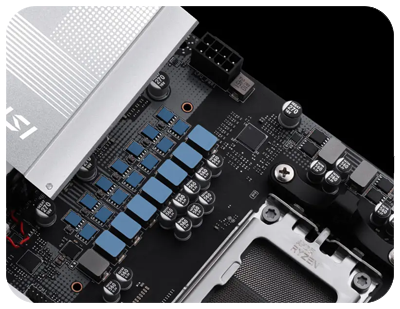

Incredible Power Design

7+2+1 DRPS POWER DESIGN Unlock and maintain peak performance with the flagship VRM design featuring 7+2+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the B850M-P WIFI is fully prepared to handle the demands of high-end processors.

VRM Power Design

7 Vcore Power - SPS 60A

2 SOC Power

1 Misc Power

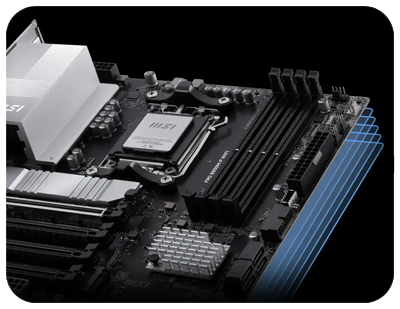

Optimised PCB

Optimised PCB The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission. 6 PCB Layers Server-grade PCB material 2oz Thickened Copper

High Performance Memory Support

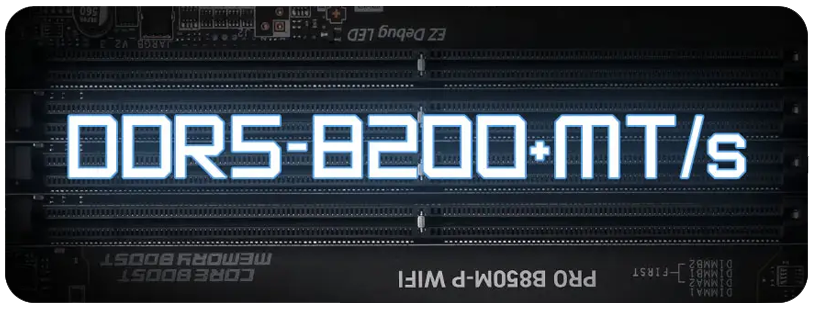

DDR5 Memory Support

Unleash World-Class DDR5 Performance Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the B850M-P WIFI is primed to deliver world-class memory performance.

EXPO / A-XMP Support

Memory Boost

SMT Process

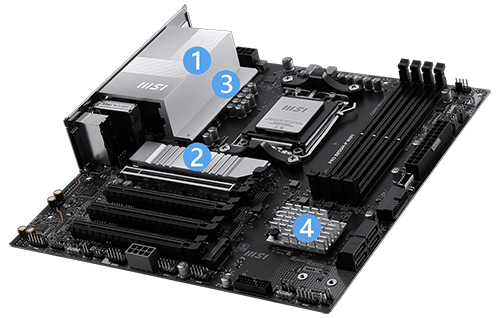

Frozr Cooling Design

1. Extended HeatsinkThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.

2. M.2 Shield FrozrA strengthened M.2 solution helps keep your M.2 slot safe while facilitating the best possible performance.

Massive Cooling heatsinks

3. 7W/mK Thermal PadHigh-quality 7W/mK MOSFET thermal pads and additional choke pads ensure stable performance when at full speed.

4. Chipset HeatsinkReduces dust coming in and noise coming out while helping spread out heat and releasing it safely.

Thermals Done Your Way

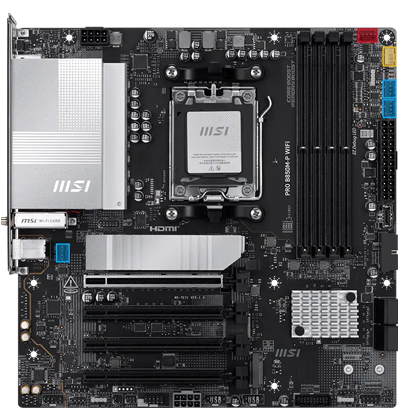

DIY 2.0

DIY 2.0 Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.
For CPU Cooler
For Liquid Cooler
For System Fan

A Breakthrough in Bandwidth

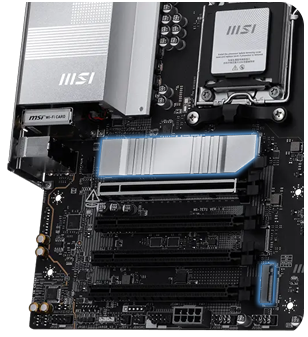

x5 PCIe 2280/110 Slots

Triple M.2 Slots MSI utilises high-speed M.2 slots with PCIe Gen 5 and 4 support, enabling faster load times and efficient data transfers for SSDs.

x1 M.2 PCIe 5.0 x4 (2280/2260)
x1 M.2 PCIe 4.0 x4 (2280/2260)
x1 M.2 PCIe 4.0 x2 (2280)

x5 PCIe 2280/110 Slots

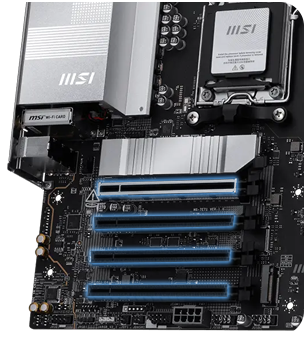

Packed with PCIe For PCIe, MSI motherboards maximise bandwidth with reinforced slots and advanced signal integrity, ensuring top-tier performance for GPUs and expansion cards.

x1 Steel Armoured Full-Length PCIe 5.0 (x16)
x3 PCIe 3.0 (x1)

Supercharge Your Networking

WiFi 7 - 5.8Gbps
WiFi 6 - 2.4Gbps

WiFi 7The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.


5 GbE LANStep past the usual 1G bottleneck and let your motherboard breathe with serious bandwidth. 5-Gigabit LAN drives rapid file transfers, sharper responsiveness in competitive play, and smoother handling of high-resolution assets across your network. It’s a clean jump in real-world speed that keeps creators, gamers, and home lab enthusiasts moving faster the moment data leaves the machine.

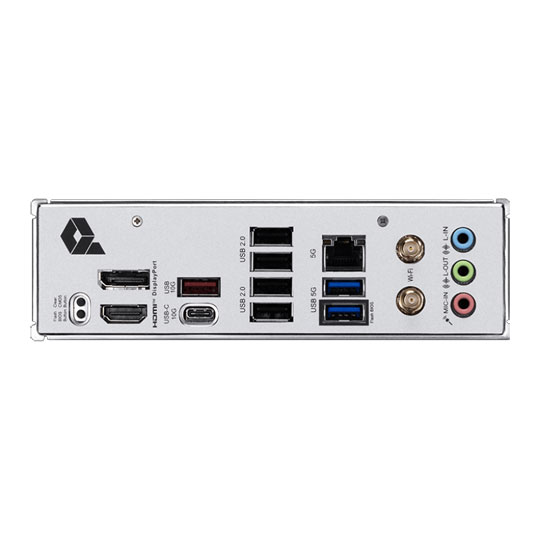

Peripheral Power


Clear CMOS Button



DisplayPort


USB 10Gbps Type-A



USB 2.0


5G LAN



Wi-Fi / Bluetooth


Audio Connectors



Flash BIOS Button


HDMI™



USB 10Gbps Type-C


USB 5Gbps Type-A

Specifications
Core Specifications
Edition PRO B850M-P WIFI
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5600
  • DDR5 - 5600(OC)
  • DDR5 - 8200(OC)
Max. Memory Capacity 256GB (4x64GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x M.2, 22-80, PCIe Gen4x2
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x 8-pin PCIe (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x Serial (COM) Header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM 2.0 Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7
  • Wired 5 Gigabit LAN (100/1000/2500/5000)
Network Chip/Modules
  • 1 x 802.11be WiFi 7 + BT5.4
  • 1 x Realtek (5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84 x 243.84 mm
Note
Additional Information
Scan Code LN165209
Model Number PRO B850M-P WIFI
GTIN 4711377350181
