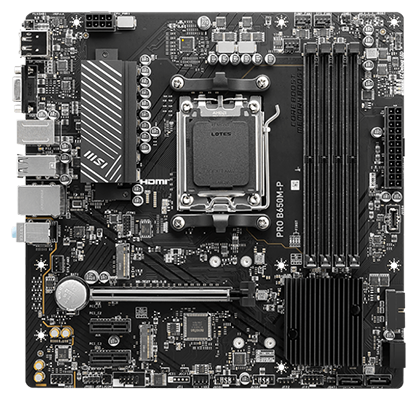

MSI AMD Ryzen PRO B650M-P AM5 PCIe 4.0 DDR5 MicroATX Motherboard
MSI AMD Ryzen PRO B650M-P AM5 PCIe 4.0 DDR5 MicroATX Motherboard
Scan code: LN139152 Manufacturer code: PRO B650M-P
£114.98Item currently awaiting an ETA
Pre Order
Pre order
  • Thumbnail 1 : MSI AMD Ryzen PRO B650M-P AM5 PCIe 4.0 DDR5 MicroATX Motherboard
  • Thumbnail 2 : MSI AMD Ryzen PRO B650M-P AM5 PCIe 4.0 DDR5 MicroATX Motherboard
  • Thumbnail 3 : MSI AMD Ryzen PRO B650M-P AM5 PCIe 4.0 DDR5 MicroATX Motherboard
  • Thumbnail 4 : MSI AMD Ryzen PRO B650M-P AM5 PCIe 4.0 DDR5 MicroATX Motherboard

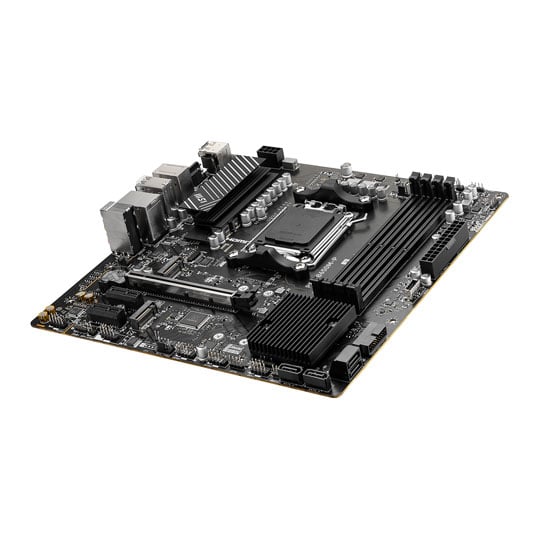

MSI AMD Ryzen PRO B650M-P AM5 PCIe 4.0 DDR5 MicroATX Motherboard

MSI PRO B650M-P, AMD B650, AM5, DDR5, PCIe 4.0, SATA3, 2x M.2, 2.5GbE, AMD EXPO, MicroATX
MORE INFO
MORE INFO

Scan code: LN139152 Manufacturer code: PRO B650M-P
£114.98
£5.48 NEXT DAY DELIVERY
Item currently awaiting an ETA
Pre Order
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £9.59 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £9.59
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £114.98
    Total inc. interest: £114.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Business Elegance

The PRO B650-P is a business-oriented ATX motherboard featuring the latest AMD B650 chipset that supports ample RAM capacity.


Supports AMD Ryzen 7000 Processors

The PRO B650M-P motherboard supports AMD Ryzen 7000 processors.

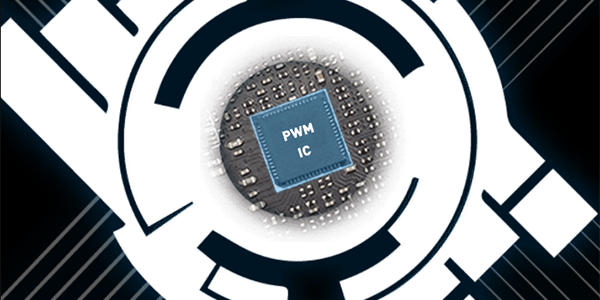

12 Duet Rail Power System with 75A Smart Power Stage

With its dual 8 pin power connectors and exclusive Core Boost technology, the PRO B650-P is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings.


Integrated Cooling Features

• VRM Cooling: Features an extended heatsink and 7W/mK thermal pads.
• PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
• SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

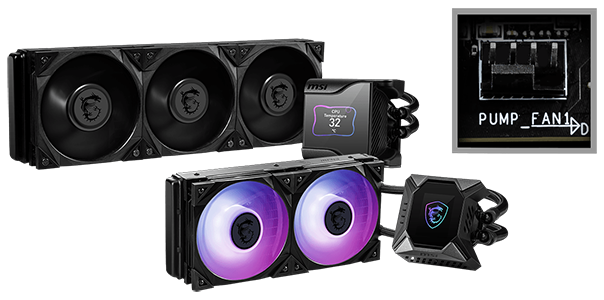

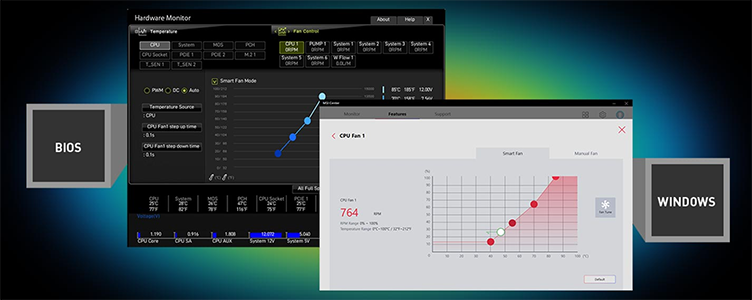

• System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan


Gen4 M.2 Connectors

The PRO B650M-P motherboard features MSI's latest M.2 slots.

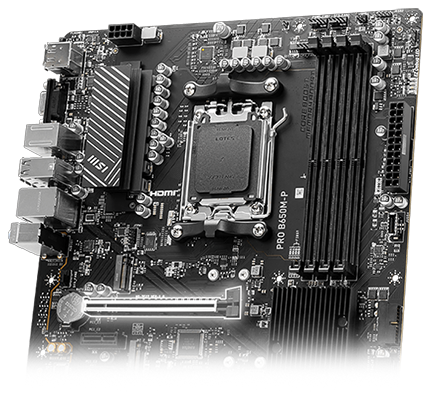

Fortified PCI-e 4.0 x16 Slots

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.


M.2 Shield Frozr

Even the world's fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

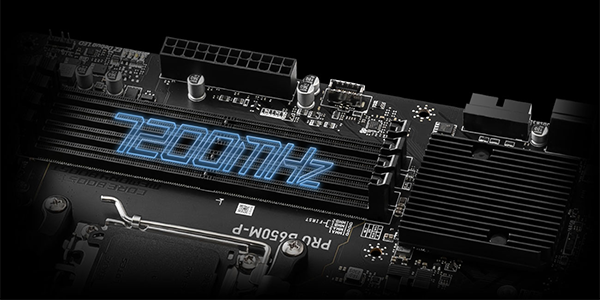

Memory Boost

A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

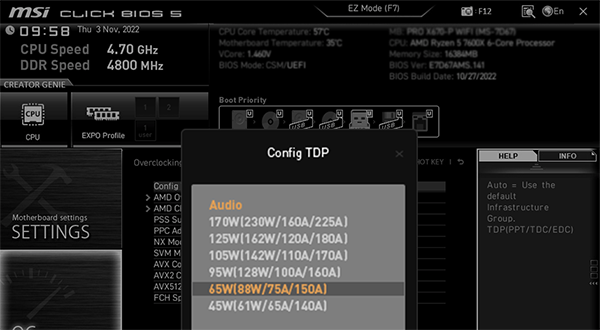

Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

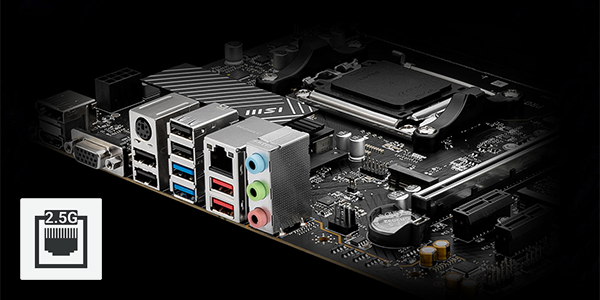

2.5G LAN

A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.

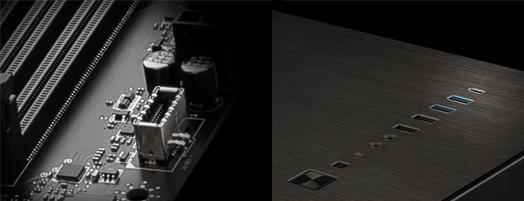

USB 3.2 Gen 2x2 Type-C

Connect to devices and transfer files at high bandwidth rates: 20Gb/s.


HD Audio

7.1-Channel High Definition Audio with Audio Boost.


Features


• Latest DDR5 Memory.
• Lightning Gen 4 Solution.
• 2.5G Network Solution.
• EZ Debug LED.
• Frozr AI Cooling.
• Memory Boost.
• Core Boost.

Specifications
Core Specifications
Edition PRO B650M-P
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 6000(OC)
Max. Memory Capacity
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x AIO Pump Connector (4-Pin)
  • 1 x Chassis Intrusion connector
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x Serial (COM) Header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 2 x USB 3.2 Gen1
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Realtek RTL8125BG

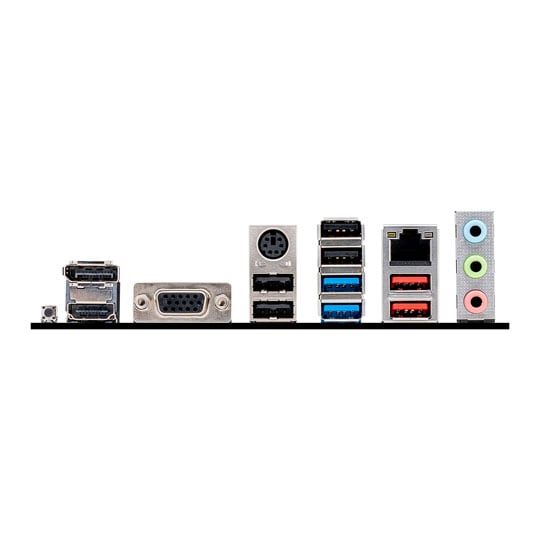

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort 1.4

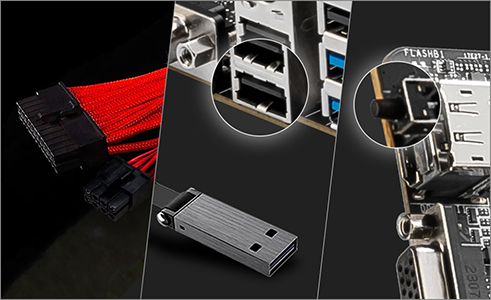

  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84mm x 243.84mm mm
Note
Additional Information
Scan Code LN139152
Model Number PRO B650M-P
GTIN 4711377100953
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
