Hot Seller Sale
Scan code: LN99486 Manufacturer code: MPG X570 GAMING EDGE WIFI

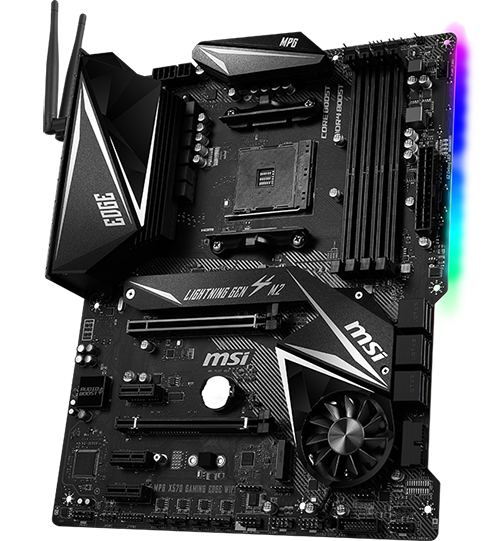

MSI AMD Ryzen MPG X570 GAMING EDGE WIFI AM4 PCIe 4.0 ATX Motherboard

MSI MPG X570 GAMING EDGE WIFI, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, Realtek GbE, WiFi, USB 3.2,ATX

Thumbnail 1 : MSI AMD Ryzen MPG X570 GAMING EDGE WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : MSI AMD Ryzen MPG X570 GAMING EDGE WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : MSI AMD Ryzen MPG X570 GAMING EDGE WIFI AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : MSI AMD Ryzen MPG X570 GAMING EDGE WIFI AM4 PCIe 4.0 ATX Motherboard MSI AMD Ryzen MPG X570 GAMING EDGE WIFI AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1 MSI AMD Ryzen MPG X570 GAMING EDGE WIFI AM4 PCIe 4.0 ATX Motherboard : video thumbnail 2
Scan code: LN99486 Manufacturer code: MPG X570 GAMING EDGE WIFI
Was: £209.99
£194.98
From £17.51 / month (APR 14.9%)
Monthly Payment: £33.84
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £194.98
Total inc. interest: £202.99
Monthly Payment: £17.51
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £194.98
Total inc. interest: £210.03
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

MSI MPG X570 GAMING EDGE WIFI - AMD X570 Motherboard with PCIe 4.0

MSI X570 GAMING EDGE Wi-fi

perfect balance between appearance and performance with Extended Heatsink DesignThe X570 GAMING EDGE WIFI by MSI is full of sharp and salient lines reflecting gorgeous colours with a Frozr heatsink which is designed with the patented fan and double ball bearings to enhance performance. PCIe 4.0 in conjunction with lightning Gen4 M.2 with shield Frozr provide a lightning fast gaming experience. Mystic light extension supports both RGB and Rainbow LED strips for you to experience 16.8 million colours / 29 effects controlled in one click. The Gaming Edge WiFi even has a pre installed I/O shield and many new features to take your gaming up a notch.

Please note: Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 socket

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

Lightning Gen 4 Solution with M.2 Shield FROZR

MSI X570 GAMING EDGE Wi-fi

faster data transfer for M.2 devicesThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield FROZR is the next generation M.2 Thermal solution avoiding this by offering the best thermal protection to make sure the SSD maintains maximum performance.

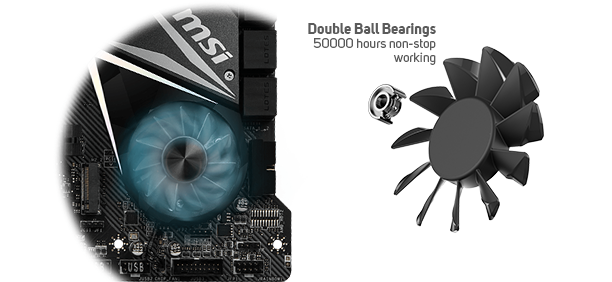

FROZR Heatsink Design

x570 Gaming Edge wifi core boost

PATENTED DESIGN PROVIDES BETTER AIRFLOWHigher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers. The MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU'S to run in full speed with MSI motherboards ensuring you get the best out of your system.

Personalize Your Gaming Rig with Mystic Light

Mystic Light x570

MILLIONS OF MARVELOUS COLORS, GREAT SELECTION OF EFFECTSPersonalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device. With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards and mice or RGB system fans.

Experience Core Boost

x570 Gaming edge core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.MSI X570 motherboards are optimized to maximize the performance on the AMD® Ryzen™ 3000 series processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

Perform Tasks Instantly with Gaming Hotkey

MSI Gaming Hotkey

TOTAL FREEDOM, MAXIMUM EASE Gaming hotkey lets you simply assign functions to any key whether to launch your favorite games, load profiles or do real-time overclocking with the push of a single button. The possibilities are endless! Easily program your most-used commands and execute them with a single keystroke. You can choose any key you want, so choose wisely. Launch your favorite games with a single button.

Overclock Your System in One Second!

MSI x570 Gameboost

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

Extra Power for Extreme Overclocking

8+4 Power Design

PUSH Y0UR SYSTEM TO THE LIMITS 8+4 pin connectors delivering adequate power supply for multi-core CPU, unleash the ultimate performance with the most reliable motherboard for best gaming experience and extreme overclocking.

Amplify your Game with Audio Boost 4

audio

powered by Nahimic Like a dedicated sound card Audio Boost 4, powered by Nahimic, offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Immerse Yourself into Virtual Worlds

VR

Complete your Immersion Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.

Server Grade Quality for your Motherboard

Server Grade PCB

Server grade PCB offers up to three times heat resistance To fully support the latest PCI-E Gen 4 solution which features twice the transfer speed and bandwidth, MSI X570 motherboards adopt server grade PCB that provide reliable and long-lasting system performance for the lengthiest of gaming sessions, prevents PCB bending by stronger construction for the system foundation and reduces up to 30% signal loss for the better performance.

Features of the X570 GAMING EDGE WIFI

rgbstrip

Core Boost TechnologyCombining 8+4 pin power connectors and premium layout design, ready for unleashing the maximum performance.

phone

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

rgbstrip

Server-grade PCBServer-grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromise.

phone

IR Digital PWMHighest quality component IR digital power makes sure your system runs smoothly under the most extreme conditions.

phone

Zero Frozr TechnologyAI tuning system that auto-adjust fan speed by chipset temperature and eliminates fan noise by stopping the fans.

rgbstrip

Frozr DesignDesigned with a patented fan and double ball bearings to provide the best performance for you.

phone

AMD Turbo USBFeaturing the TURBO USB 3.2 GEN2, with reversible Type-C connector.

rgbstrip

DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

phone

Lightning Gen4The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

rgbstrip

PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications
Core Specifications
Edition MPG X570 GAMING EDGE WIFI
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3-pin RAINBOW LED connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin RGB LED connector
  • 4 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 2 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel Wireless-AC 3168 (ac WiFi, BT4.2)
  • 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Flash BIOS Button
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 304 x 243 mm
Note
Additional Information
Scan Code LN99486
Model Number MPG X570 GAMING EDGE WIFI
GTIN 4719072652500
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
SCAN/MSI
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
MSI MPG X570 GAMING EDGE WIFI, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, Realtek GbE, WiFi, USB 3.2,ATX is rated 4.9 out of 5 by 26.
Rated 5 out of 5 by from Superb features I bought this motherboard after years of using another make. I was bought an MSI gl62 laptop for my birthday and was blown away by it looks and speed. I bought the mpg x570 gaming edge WiFi board expecting the same quality and I am not disappointed. The look and sturdy feel made me feel at ease and reading through the instructions got me excited to get going. I've not even explored a tenth of its features yet but so far I am pleased with what I can do with it. Don't hesitate buy it.
Date published: 2019-09-07
Rated 5 out of 5 by from Quality product Worked with ryzen 3000 series out of the box, no bios update needed. quality item, well made from a brand I trust and have been using for 20+ years without fault.. Highly recommended and fits perfectly in MSI Vampire case, with loads of room to spare.
Date published: 2019-08-23
Rated 5 out of 5 by from Great value product I bought this motherboard to pair it with a Ryzen 7 3700x processor. I had previous good experience with MSI products... a fantastic MSI GTX 970 Gaming 4GB Twin Frozr which is still going strong today. The motherboard is attractive and has a premium feel. I love the clean look of the black PCB and the pre-installed rear panel I/O shield. The motherboard has all the features you want from an advanced gaming motherboard... a PCIe 4.0 x4 M.2 slot, six SATA ports and up to 128 GB DDR4-4400 memory across the four available slots. The two antenna ports for the 802.11ac wireless interface are an added bonus. Please note that NVIDIA SLI is not supported by the motherboard but to be fair I am not certain SLI makes sense nowadays. Another point worth noting is that the single Ethernet is controlled by a Realtek RTL811H Gigabit NIC which is not the fastest out there. Overall I am extremely pleased with the motherboard. It represents good value for money and has the same or shares similar features as higher-end boards.
Date published: 2019-08-18
Rated 5 out of 5 by from Awesome Motherboard I haven’t built a PC for many years, but when the new AMD Ryzens were released, I thought the time was right. I looked at all of the available boards, and decided to go for an X570 to give me the most up to date options for upgrades and overclocking. Of all of the X570 boards, I chose this one as it has inbuilt wifi, M2 heat sink and above all, very reasonably priced. I can honestly say, the board has not disappointed in the slightest. The inbuilt wifi is dual band, and is strong enough to connect without the antennas attached (although they are attached) and it connects at full speed to my 200 mbps wifi. The USB is up to date, with lots of options. The nice feature is the BIOS flash update – can update the bios directly from a USB without any OS or going into the BIOS. I can honestly say I am delighted with the motherboard – really easy to use / install, lots of up to date features – including the fastest M2 drive options too – and I would recommend this to anyone.
Date published: 2019-08-17
Rated 5 out of 5 by from Great Value X570 Board The X570 Gaming Edge WiFi is great with the new 3rd gen ryzen, with support for Gen4 M.2 storage and PCIe 4.0. The bios is easy to navigate and adjust. The Ez Debug LED makes setup much easier, allowing you to see the areas of your motherboard with issues and troubleshoot.
Date published: 2019-08-14
Rated 5 out of 5 by from Good, well priced motherboard This motherboard is a great price for the features it has. My main reason for buying was the 3 M.2 Slots. The LED features and overall look and feel of the motherboard is also what made me choose MSI over other manufacturers. Lots of great features for a well priced board.
Date published: 2019-08-13
Rated 5 out of 5 by from Great Features If you are a person who likes the latest tech and wants a premium motherboard with stuff like PCIe 4.0 and cooling on the motherboard for you m.2 drives. Then this is the item for you.
Date published: 2019-08-13
Rated 5 out of 5 by from Great build quality The motherboard feels solid, you don't get that feeling that something will break while handling it . The box comes with everything you need when you start a new build . In the pictures you can see everything that the motherboard comes with. Comes with multiple RGB lightning connections (I didn't knew this when I bought my case that has a few fans with rgb lights). The connection ports enclosure fits perfect in the case and looks great too. You will find inside the box: - 2x SATA 6gb/s Cables - 1x RAINBOW RGB LED Extension cable 80cm - stickers to label your cables inside the case - 2x Antennas for wifi - MSI Case badge - 2x M.2 screws - Driver DVD - User manual - Quick Installation Guide - Product registration card I also added a photo where you can see the Block Diagram, I hope the information I gave helps you decide if this is the board you need.
Date published: 2019-08-12
