Scan code: LN115312 Manufacturer code: MPG B560I GAMING EDGE WIFI

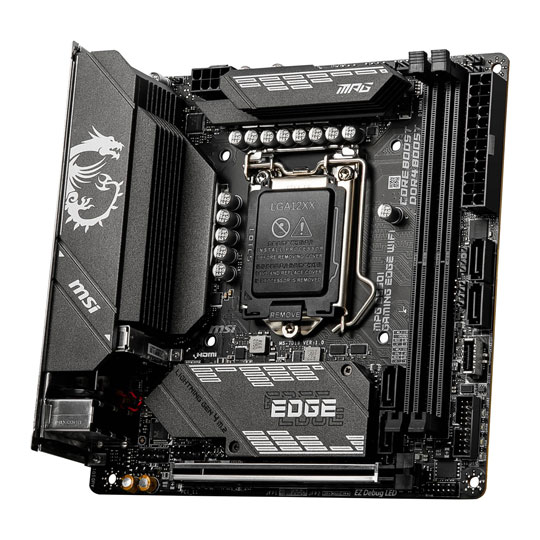

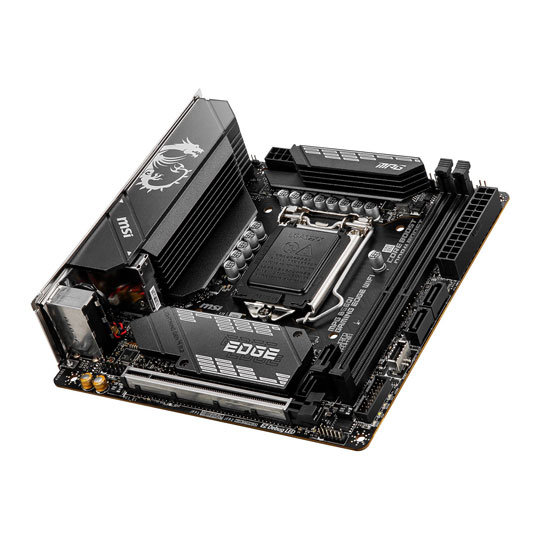

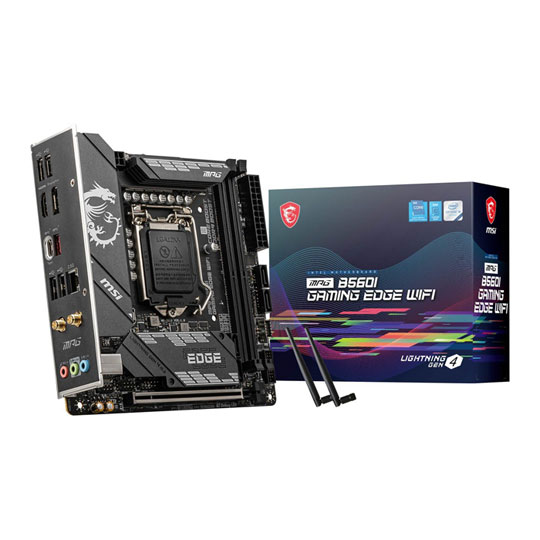

MSI MPG Intel B560I Gaming Edge WiFi mITX Motherboard

MSI MPG B560I Gaming Edge WIFI, Intel B560, S 1200, DDR4, PCIe 4.0, SATA3, 2x M.2, 2.5GbE, ax/BT5.2, USB 3.2, Mini-ITX

Thumbnail 1 : MSI MPG Intel B560I Gaming Edge WiFi mITX Motherboard Thumbnail 2 : MSI MPG Intel B560I Gaming Edge WiFi mITX Motherboard Thumbnail 3 : MSI MPG Intel B560I Gaming Edge WiFi mITX Motherboard Thumbnail 4 : MSI MPG Intel B560I Gaming Edge WiFi mITX Motherboard
Scan code: LN115312 Manufacturer code: MPG B560I GAMING EDGE WIFI
£159.98Item currently awaiting an ETA
Pre order
From £14.37 / month (APR 14.9%)
Monthly Payment: £14.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £159.98
Total inc. interest: £172.34
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MPG B560I GAMING EDGE WIFI Intel 11th Gen mATX Motherboard

MSI MPG B560I GAMING EDGE WIFI MATX Intel Motherboard

PREMIUM HARDWARE DESIGN The MSI MPG B560I GAMING EDGE WIFI MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the latest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. With years of experience, MSI is no stranger to building high-performance motherboards. MSI, R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Intel B560Chipset

LGA 1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

mATXForm Factor

Special Features of the MPG B560I GAMING EDGE WIFI Motherboard

motherboard features
down

Core Boost
Technology
With a premium layout design, that is ready for unleashing the maximum performance.

up

8 layer PCB
with 2oz Copper
8 layer PCB provides higher performance and long-lasting system stability without any compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Premium Thermal Solution

Thermal Solution

OPTIMIZED FOR WATER COOLINGPart of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed.

down

Extended HeatsinkMSI extended heatsink and enhanced circuit design ensure even high-end processors to run in full speed.

up

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Pump Fan SupportControl watercooling pump speeds for best flow and noise control.

up

Heatsinks with Thermal PadThe 7W/mK thermal pad provides better heat transfer to the heatsink.

Next Generation Connectivity with MSI

down

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

up

DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

up

Lightning Gen 4 SolutionThe latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

up

WI-FI 6EThe latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS colour technology, delivering speeds up to 2400Mbps.

Mystic Light Extension

Mystic light

light it upThe Mystic Light Extension will help you to have more attractive way to decorate you gaming rig by the LED Strips and still under controlled by the Mystic Light application.
* The JRGB pin header provides the max 3A(12V) power supply for the up to 3 meters 5050 RGB LED strips showing single colour. The JRAINBOW pin header provides the max 3A(5V) power supply for the WS2812B Addressable RGB LED strips in 75 LEDs.

Experience Core Boost

core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOSTMSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

Fast and Future-Ready Storage

Storage

LIGHTNING GEN 4 PCI-E and steel armor design MSI MPG SERIES motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Professional Gaming Audio with an Isolated Design

audio

Amplify your game with Audio Boost Make sure you enjoy the purest sound quality in both stereo and surround sound. A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured, thanks to high quality audio capacitors. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

DIY Friendly with Pre-Installed I/O Shield

Ports

HIGH BANDWIDTH AND LOW-LATENCY NETWORKFeaturing the pre-installed IO shield, makes your installation process easier and safer. The patent-pending design protects your IO ports and also prevents electrostatic discharge damage. Featuring 2.5Gbps LAN which provides incredible data transfer speed faster than general Gigabit LAN. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. Read and write your files over USB faster than ever. MSI MPG series motherboards offer a wide variety of options to connect and boost your USB devices, delivering 10Gbps transferring speed by both USB 3.2 Gen 2 Type-A and Type-C. MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

Specifications
Core Specifications
Edition B560I GAMING EDGE WIFI
Form Factor Mini-ITX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4800(OC)
  • DDR4 - 5000(OC)
  • DDR4 - 5200(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0b
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via Not Supported
Storage Mode Support Intel Optane Memory Ready
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 3-pin RAINBOW LED connector
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin RGB LED connector
  • 1 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 2 x M.2
  • 4 x SATA III - 6Gb/s
  • 2 x System panel connector
  • 1 x TPM (Trusted Platform Module)
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen 2 Type-A
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x Intel Wi-Fi 6 AX210 (ax WiFi, BT5.2)
  • 1 x Realtek RTL8125B

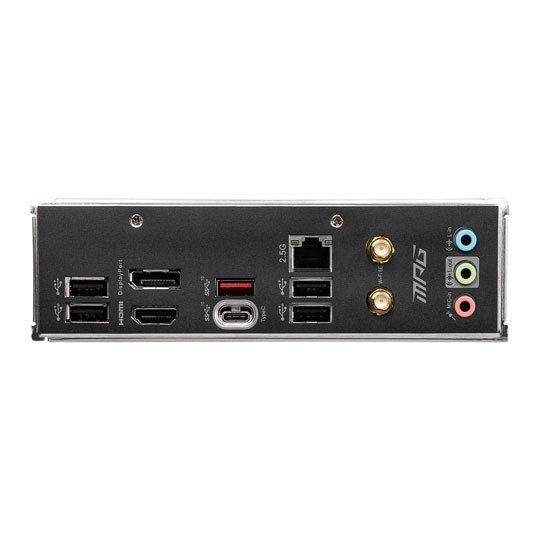

Rear I/O Connectors
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x170 mm
Note
Additional Information
Scan Code LN115312
Model Number MPG B560I GAMING EDGE WIFI
GTIN 4719072810580
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
14 days
