Scan code: LN120750 Manufacturer code: MEG Z690 UNIFY

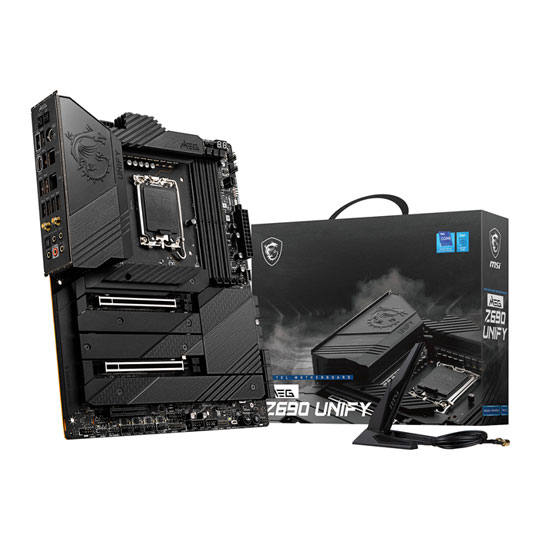

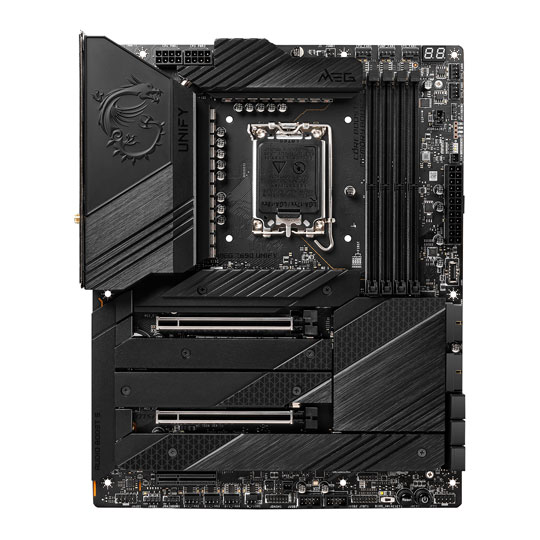

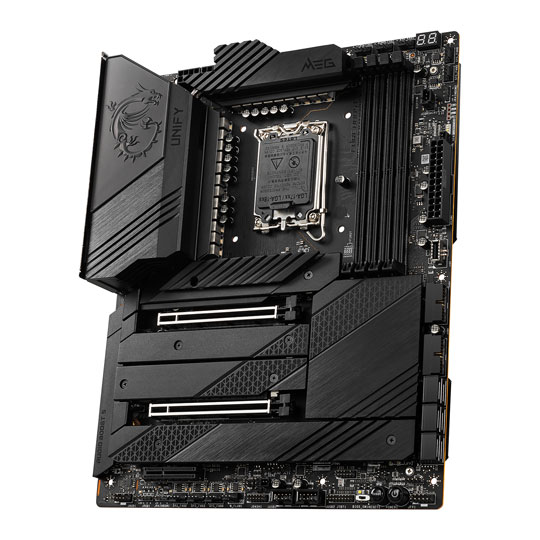

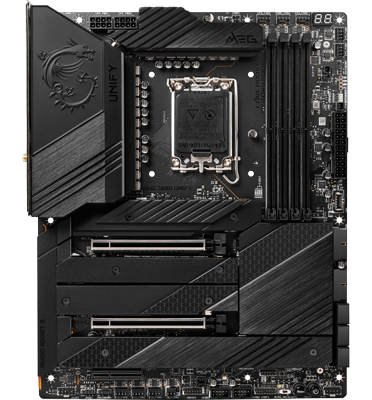

MSI MEG Z690 UNIFY ATX Motherboard

MSI MEG Z690 UNIFY, Intel Z690, S 1700, DDR5, SATA3, PCIe 5.0, 5x M.2, WiFi 6E, Dual 2.5GbE, USB 3.2 Gen2x2, ATX

Thumbnail 1 : MSI MEG Z690 UNIFY ATX Motherboard Thumbnail 2 : MSI MEG Z690 UNIFY ATX Motherboard Thumbnail 3 : MSI MEG Z690 UNIFY ATX Motherboard Thumbnail 4 : MSI MEG Z690 UNIFY ATX Motherboard
Scan code: LN120750 Manufacturer code: MEG Z690 UNIFY
£509.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £14.17 / month (APR 0%) or 0% for 4 months
Monthly Payment: £42.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £509.99
Total inc. interest: £509.99
Monthly Payment: £21.25
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £509.99
Total inc. interest: £509.99
Monthly Payment: £14.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £509.99
Total inc. interest: £509.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.74 / month (APR 15.9%)
Delivery Options
  • By DPD On 6th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MEG Z690 UNIFY 12th Generation Intel ATX Motherboard from MSI

MSI Z690

Blur The Line Between Performance and Aesthetics Take a step into the future. MSI have returned with the MEG Z690 series motherboards; here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MSI Z690 Unify is filled with premium tech and bolstered with an arsenal of top-shelf modern features like; the very latest 5th generation PCI-e solution, DDR5 memory support, huge storage options with 5x m.2 slots (4x PCIe Gen4x4, 1x PCIe Gen3x4), lightning 20G USB connectivity, Audio/Core & DDR5 Memory boosts, an outstanding thermal solution with Aluminium coverings, VRM heatpipes, premium thermal-pads, dual sided m.2 frozr and an aluminium backplate, plus Wi-Fi 6E support delivering speeds of up to 2400 Mbps, dual 2.5G LAN, advanced surface mount technology and a fully comprehensive rear I/O. The Z690 Unify combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next-generation with MSI.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

ATXForm Factor

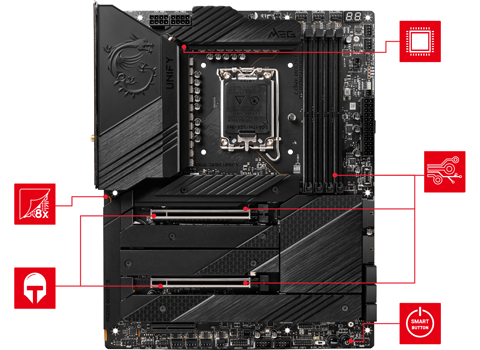

Special Features of the Z690 Unify

4K Recording
up

Digital
PWM
An aggressive digital VRM power design with direct digital power, 105A Smart Power Stage and titanium choke III to make sure your system runs smoothly even under the most extreme conditions.

up

8 layer
PCB
8 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability with no compromise.

up

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

up

Smart
Button
One button with multiple hardware controls. Reset your computer, Safe Boot, Turbo Fan and EZ LED control functions with one simple click.

up

Advanced
SMT Process
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints and electromagnetic interference, delivering the clean and pure signal necessary for upper-tier performance.

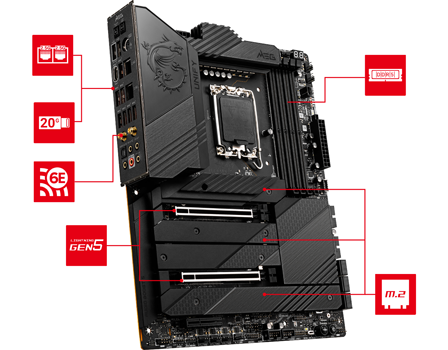

Next Generation Connectivity with MSI

4K Recording
down

Dual 2.5G LANOnboard dual 2.5G LAN with LAN manager delivers the best online experience without lag.

up

Front & Rear USB 20GLightning USB 3.2 Gen 2x2 port offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

up

DDR5 MemoryA huge step forwards in DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.

up

All-New PCI-e 5.0 The latest Gen 5 PCI-E slots with up to 128GB/s bandwidth for maximum transfer speed.

up

Intel Wi-Fi 6EThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

up

Quintuple M.2 ConnectorsOnboard 5x M.2 connectors with quadruple PCIe 4.0 solution, strengthened by double-sided M.2 Shield Frozr.

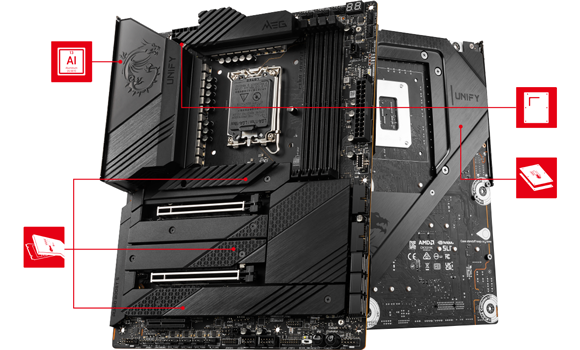

Premium Thermal Solution

4K Recording
down

Premium Thermal DesignFully aluminum IO cover and extended heatsink design help to maximise the surface of heat dissipation.

up

M.2 Shield FrozrDouble-sided M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

up

Full aluminium backplateThe aluminium baseplate cools down your Mosfets with dedicated thermal pad.

up

Heat-Pipe DesignConnecting two MOS heatsinks to further enlarge the surface area of heat dissipation.

The Latest Technologies

4K Recording

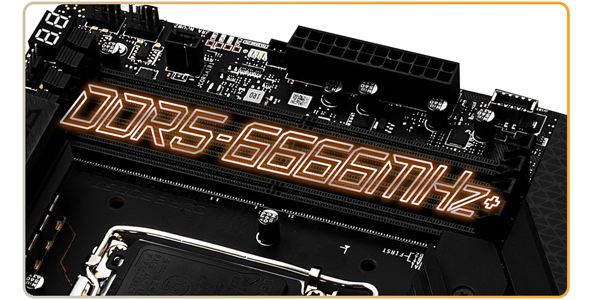

Welcome DDR5 MemoryA huge step forwards for DDR performance enhancement with the latest DDR5 memory. Combined with a dedicated SMT welding process and MSI Memory Boost technology, MEG Z690 Unify is ready to deliver world class performance.

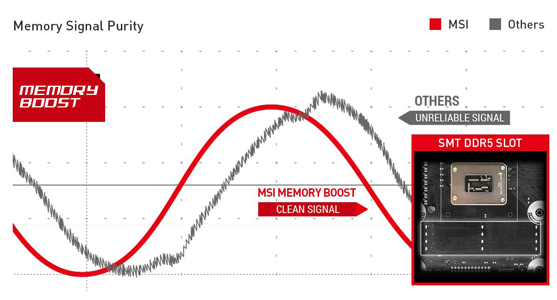

Unmatched Memory Performance

4K Recording

The Purest Memory SignalMSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimised traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

The Next Generation

4K Recording

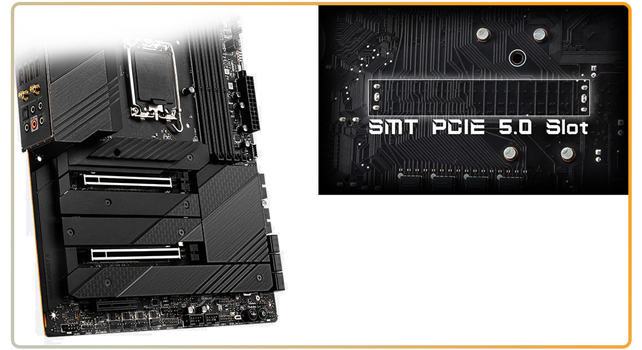

Lightning Gen 5 PCI-EMSI Lightning Gen 5 PCI-E takes the theoretical bandwidth of a x16 interface to whopping 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot reduces any interference and electrical noise, fully supporting the higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

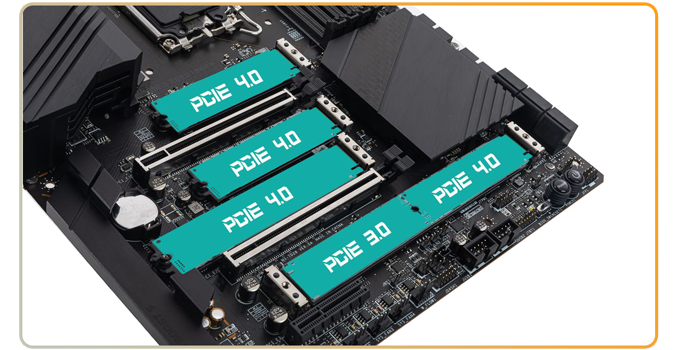

Incredible Storage Solutions

4K Recording

QUINTUPLE M.2 WITH DOUBLE SIDE M.2 SHIELD FROZRIncredible onboard quintuple M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, a;llowing them to run faster.

Take Your Network To The Next Level

4K Recording

WI-FI 6E & BLUETOOTHUse your LAN port for online gaming while using Wi-Fi for other online applications. The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.

Amp' Up Your Audio Experience

down

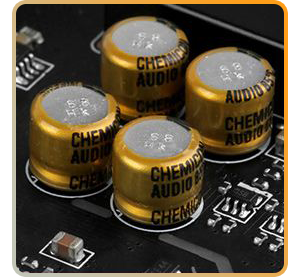

High Quality Capacitors

up

Dedicated Headphone Amplifier

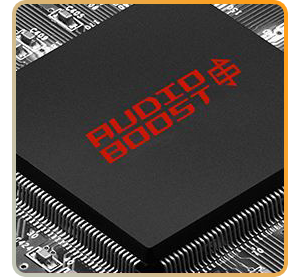

MSI Audio boost 5 Like a dedicated sound card, Audio Boost 5 offers a HD audio processor, dedicated amplifier and high quality audio capacitors all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy. Powered by an ALC 4080 audio processor, this motherboards supports 120dB SNR, 32-bit/384kHz and DSD Super Audio CD playback & recording.

up

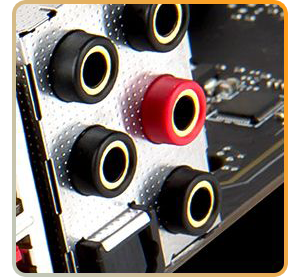

High Quality Audio Jacks

down

ALC 4080 Audio Processor

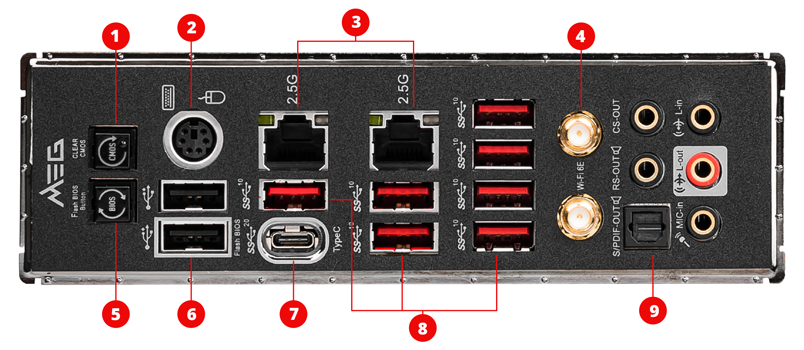

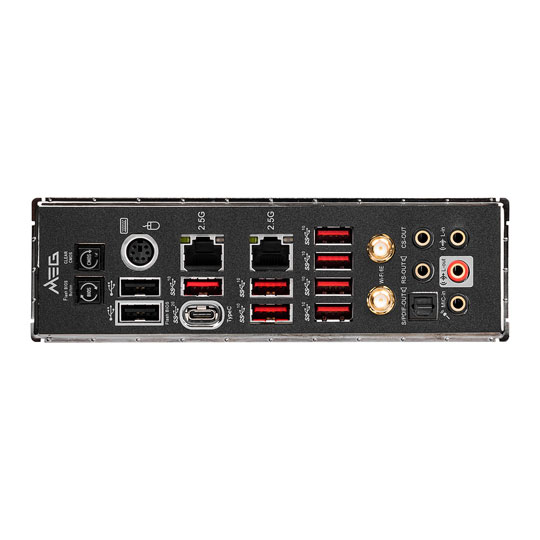

A Fully Comprehensive I/O

4K Recording

1. Clear CMOS Button

2. PS/2 Combo

3. Dual 2.5G LAN

4. WIFI / Bluetooth

5. Flash Bios

6. 2x USB 2.0

7. 1x USB 3.2 Gen2x2

8. 7x USB 3.2 Gen2

9. HD Audio Connectors

Specifications
Core Specifications
Edition MEG Z690 UNIFY
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 5 x M.2 PCIe
  • 1 x PCIe 3.0 x4
  • 2 x PCIe 5.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O 6 x SATA III - 6Gb/s
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Dual Wired 2.5G LAN
Network Chip/Modules
  • 2 x Intel® I225V (2.5GbE LAN)
  • 1 x Intel®Wi-Fi 6E AX210 + BT5.2
Rear I/O Connectors
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Headphone-Out
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF (Optical)
  • 6 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 7 x USB 3.2 Gen2 Type-A
  • 2 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN120750
Model Number MEG Z690 UNIFY
GTIN 4719072886509
