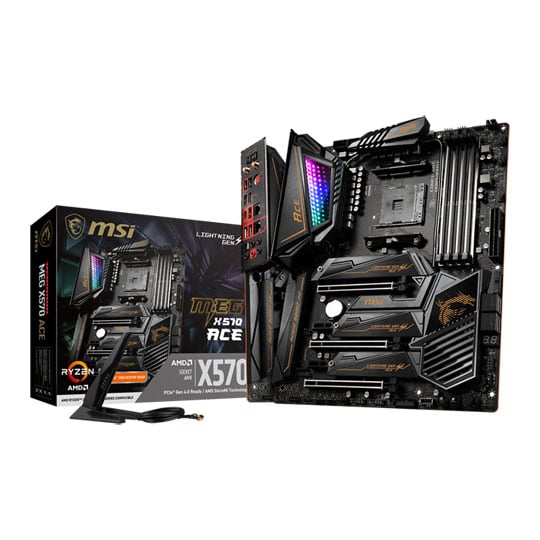

MSI AMD Ryzen MEG X570 ACE AM4 PCIe 4.0 ATX Motherboard
MSI MEG X570 ACE, AMD X570, AM4, DDR4, PCIe 4.0, Triple M.2, 2-Way SLi/3-Way CrossFire, 2.5G/GbE/WiFi, USB 3.2, ATX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£379.99|
|Total inc. interest:||£391.90|
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£379.99|
|Total inc. interest:||£403.16|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 8th Jul
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
MSI MEG X570 ACE! Win Games and Set New Records
"looks savage and comes packed with stunning features"MEG X570 ACE is built to win. Outplay any opponent, crush entire teams, and come out on top of every match with a motherboard designed for the world’s best players. Featuring the latest PCIe 4.0 standard for M.2 and PCIe expansion slots, the lightning Gen4 M.2 slots can support up to 64 GB/s bandwidth and faster transfer speed than before. To meet the demanding requirement for PCIe 4.0 devices, MEG X570 ACE motherboard gives a complete thermal solution to prevent any situation from hampering the performance. M.2 Shield Frozr is built-in thermal solution to cool down M.2 devices and prevent overheating. Frozr Heatsink Design can also help generate more airflow to avoid thermal throttling impacting your performance.
Please note: Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics Desktop Processors for AM4 socket

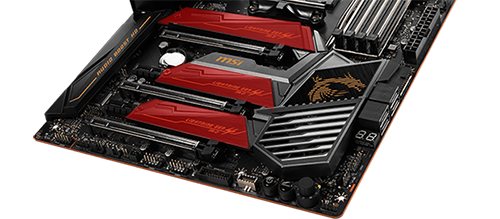

Generation 4 Solution with M.2 Shield FROZR
faster data transfer for M.2 devicesThe latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield FROZR is the next generation M.2 Thermal solution avoiding this by offering the best thermal protection to make sure the SSD maintains maximum performance.

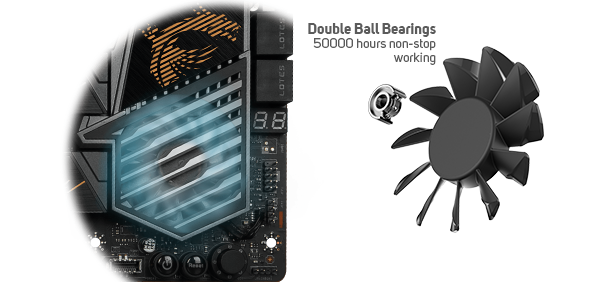

FROZR Heatsink Design
PATENTED DESIGN PROVIDES BETTER AIRFLOWHigher performance generates more heat. Thermal solution is very important to X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the patented fan design to provide best performance for enthusiast gamers and prosumers. The MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU'S to run in full speed with MSI motherboards ensuring you get the best out of your system.
Cooler Temperatures enable Faster Speeds
TRIPLE LIGHTNING M.2 WITH M.2 SHIELD FROZRCooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.

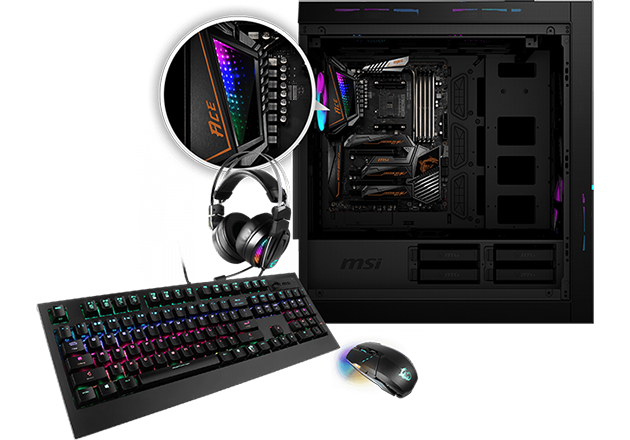

Personalize Your Gaming Rig with Mystic Light
MILLIONS OF MARVELOUS COLORS, GREAT SELECTION OF EFFECTSPersonalize your PC with 16.8 million colors and 29 effects through Mystic Light RGB LED. Controlled in one click with the Mystic Light APP or a mobile device. With the convenience of Mystic Light Sync, you can control RGB LED solutions from other brands, such as CPU coolers, keyboards and mice or RGB system fans.
Experience Core Boost
Outstanding VRM power design for MEG X570 ACECore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU.MSI X570 motherboards are optimized to maximize the performance on the AMD® Ryzen™ 3000 series processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.
Perform Tasks Instantly with Gaming Hotkey
TOTAL FREEDOM, MAXIMUM EASE Gaming hotkey lets you simply assign functions to any key whether to launch your favorite games, load profiles or do real-time overclocking with the push of a single button. The possibilities are endless! Easily program your most-used commands and execute them with a single keystroke. You can choose any key you want, so choose wisely. Launch your favorite games with a single button.
Professional Gaming Audio
Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.
High Definition ALC1220 Audio ProcessorSupports DSD Super Audio CD playback & recording (64x better than regular CD quality)
ESS AUDIO DACRecreates the optimal natural analogue sound with ultra-low distortion to ensure a perfect, realistic display of sound.
High Quality Audio CapacitorsA high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
Golden Audio jacks with S/PDIFKeep your sound perfect by transmit your audio with pure digital signal.
Overclock Your System in One Second!
MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!
Unmatched Memory Performance
Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
The Next Generation of Wi-Fi
EQUIPPED WITH 2.5G + 1G GAMING LAN Use your LAN port for online gaming while using WiFi for other online applications. The Intel® Wi-Fi 6 adopts latest OFDMA and two-way MU-MIMO technologies, delivering wireless transmission speeds up to 2.4Gbps.
Immerse Yourself into Virtual Worlds
Complete your Immersion Integrating the very best of cutting edge technologies on MSI hardware provides a smooth Mixed Reality, Augmented Reality and Virtual Reality ride. Through joint efforts with major VR brands, combined with unique MSI features to optimize VR, MSI brings gamers and professionals a vivid and realistic experience in which content truly comes alive.
Server Grade Quality for your Motherboard
Server grade PCB offers up to three times heat resistance To fully support the latest PCI-E Gen 4 solution which features twice the transfer speed and bandwidth, MSI X570 motherboards adopt server grade PCB that provide reliable and long-lasting system performance for the lengthiest of gaming sessions, prevents PCB bending by stronger construction for the system foundation and reduces up to 30% signal loss for the better performance.
A New Way to Control your Cooling
MSI FROZR Heatsink design combines the power of MSI’s exclusive ZERO FROZR and AI tuning technology to auto-adjust fan speed according to the chipset’s temperature. You can also select from one of three modes (Boost / Balance / Silent) mode with your according to your preferences via Dragon center or MSI UEFI BIOS and enjoy the best performance without compromise.
Features of the X570 Pro Carbon Wi-Fi
Core Boost TechnologyCombining 8+4 pin power connectors and premium layout design, ready for unleashing the maximum performance.
M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Server-grade PCBServer-grade PCB provides higher PCIe 4.0 performance and long-lasting system stability without any compromise.
IR Digital PWMHighest quality component IR digital power makes sure your system runs smoothly under the most extreme conditions.
Zero Frozr TechnologyAI tuning system that auto-adjust fan speed by chipset temperature and eliminates fan noise by stopping the fans.
Frozr DesignDesigned with a patented fan and double ball bearings to provide the best performance for you.
AMD Turbo USBFeaturing the TURBO USB 3.2 GEN2, with reversible Type-C connector.
DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.
Lightning Gen4The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.
Heat-PipeEnlarge the surface of heat dissipation, connecting from MOS heatsink to chipset heatsink.
Excellent Network SolutionOnboard 2.5G plus Gigabit LAN with gaming LAN manager deliver the best online gaming experience.
Latest Wi-Fi 6 SolutionThe latest wireless solution supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
|Edition||MEG X570 ACE|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC1220 7.1 HD Audio|
|Primary GPU Interface||PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]|
|NVIDIA SLI Support||2-Way SLi|
|AMD CrossFire Support||3-Way CrossFire|
|Integrated Graphics||Discrete GPU Required for Graphics Output|
|On-Board Graphics Connectors||None|
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Cooling||PCH Fan & Passive Heatsinks|
|Board Dimensions||305 x 244 mm|
|Model Number||MEG X570 ACE|
