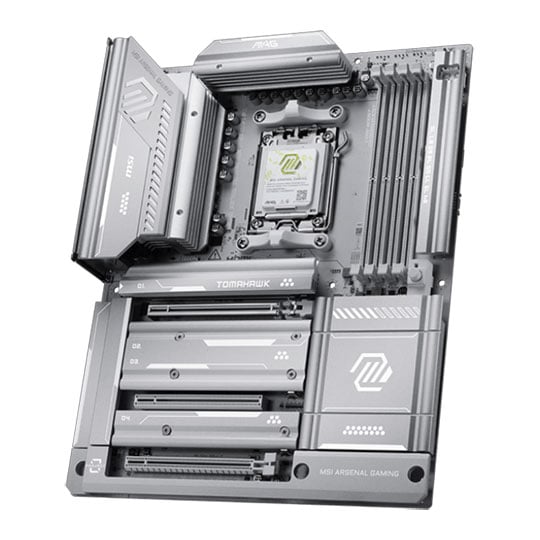

MSI MAG X870E TOMAHAWK MAX WiFi PZ AM5 DDR5 PCIe 5.0 Reverse Connector ATX Motherboard

MSI MAG X870E TOMAHAWK MAX WIFI PZ

The MSI MAG X870E TOMAHAWK MAX WIFI PZ takes everything you expect from a next-generation AM5 motherboard and flips it—literally. With its reverse connector layout and striking all-white design, this ATX board brings an unmatched blend of visual clarity and build-friendly engineering. Built on the AMD X870E chipset and ready for Ryzen 9000, 8000, and 7000 Series processors, it’s a platform built for builders who care about performance as much as presentation. The MSI MAG X870E TOMAHAWK MAX WIFI PZ takes everything you expect from a next-generation AM5 motherboard and flips it—literally. With its reverse connector layout and striking all-white design, this ATX board brings an unmatched blend of visual clarity and build-friendly engineering. Built on the AMD X870E chipset and ready for Ryzen 9000, 8000, and 7000 Series processors, it’s a platform built for builders who care about performance as much as presentation.

Instant Access. Lasting Speed.

With support for PCIe 5.0 and multiple M.2 Gen5 slots, the MAG X870E TOMAHAWK MAX WIFI PZ ensures your storage setup is as quick as your CPU. From gaming to rendering, experience instant load times and a system that always feels one step ahead.

14+2+1 DRPS Power Design

Engineered for stability, the board’s 14+2+1 phase digital power system with 80A Smart Power Stages ensures unwavering energy delivery to your Ryzen CPU. Dual power connectors and carefully tuned load balancing give you the confidence to push clock speeds and sustain top-tier performance. It’s a layout built for builders chasing the edge of what AM5 can deliver.

DDR5: From Strength to Strength

DDR5 memory redefines bandwidth and efficiency. MSI’s Memory Boost technology and SMT welding process work together to preserve clean signal integrity, pushing DDR5 to new limits. The result is faster boot times, tighter response, and the freedom to overclock with confidence.

Advanced Thermal Design

Thermal performance is fundamental, and MSI delivers with a multi-layered cooling solution:
• Extended Heatsink for larger dissipation surface area
• Double-sided M.2 Shield Frozr to protect Gen5 SSDs from throttling
• Heavy Plated VRM Heatsink covering upper MOS for steady thermal regulation
• 7W/mK MOSFET pads and additional choke pads to sustain all-core performance
• Enlarged Chipset Heatsink designed to minimize dust buildup and maintain silent efficiency

Wi-Fi 7 Connectivity

Wi-Fi 7 delivers the bandwidth and response modern gaming and creative workflows demand. Higher throughput, reduced latency, and smarter multi-link operation ensure smooth transfers, lag-free online sessions, and rock-solid connections across all your devices.

• Dual M.2 Gen5 Connectors: Onboard Dual M.2 Gen5 x4 slots deliver next-generation storage performance with ultra-fast transfer speeds and maximum flexibility for high-end NVMe SSDs.
• Latest DDR5 Memory: Take full advantage of cutting-edge DDR5 support, enhanced by MSI Memory Boost technology for superior stability, cleaner power delivery, and extreme frequency potential.
• Lightning Gen5 Solution: Experience the fastest interface available with PCIe 5.0, offering up to 128GB/s theoretical bandwidth for the latest GPUs and storage devices.
• Extended Heatsink Design: Oversized white heatsinks and a refined power circuit layout ensure sustained performance and reliable cooling for next-gen Ryzen processors.
• EZ M.2 Shield Frozr II: The latest tool-less M.2 shield design simplifies SSD installation and enhances thermal performance for consistent storage speeds.
• EZ PCIe Clip II: A re-engineered retention mechanism allows effortless GPU removal with a single touch — perfect for tighter cases and frequent upgraders.
• 5G Network Solution: Equipped with a high-speed 5G LAN controller for ultra-low latency and high-throughput connectivity during gaming, streaming, or content creation.
• Wi-Fi 7: The newest wireless standard delivers up to 2.4x faster speeds than Wi-Fi 6, drastically reducing latency and improving stability across multiple devices.
• Audio Boost 5: Immerse yourself in high-fidelity, studio-grade sound powered by isolated audio circuitry and premium components for crystal-clear playback.
• Reverse Connector Layout: MSI’s rear-mounted connector design routes all primary cables behind the motherboard for a cleaner build, improved airflow, and an effortlessly professional look.
• All-White Aesthetic: A refined, uniform finish that stands out in any chassis — designed for builders who want performance and style in equal measure.
