Scan code: LN107063 Manufacturer code: MAG Z490 TOMAHAWK

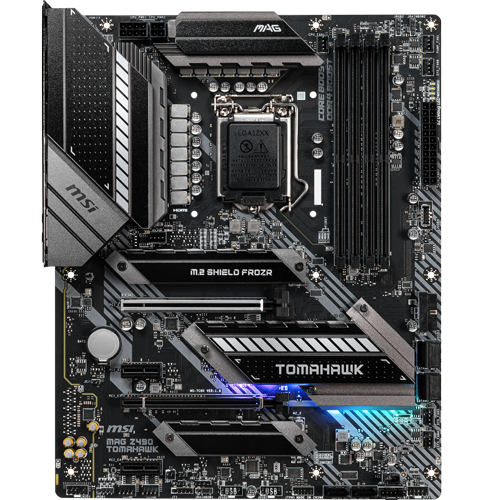

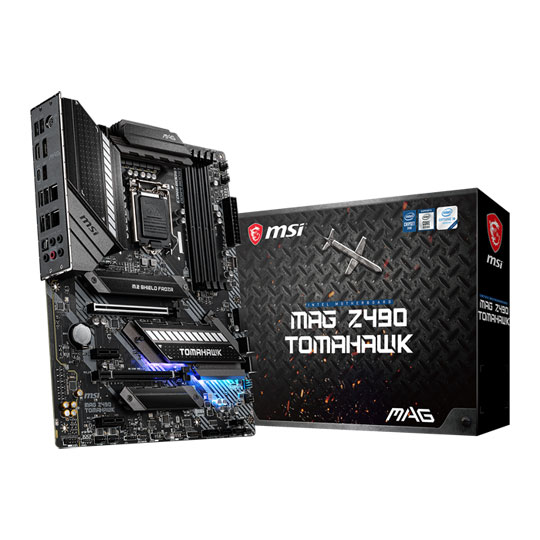

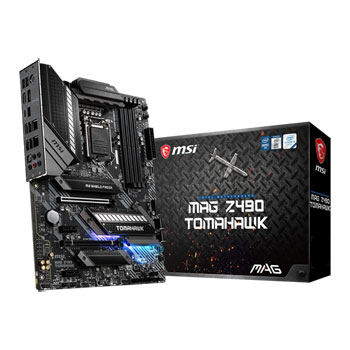

MSI MAG Intel Z490 TOMAHAWK ATX Motherboard

MSI MAG Z490 TOMAHAWK, Intel Z490, S 1200, DDR4, SATA3, 2x M.2, CrossFire, 2.5GbE, USB 3.2 Gen1, ATX

Thumbnail 1 : MSI MAG Intel Z490 TOMAHAWK ATX Motherboard Thumbnail 2 : MSI MAG Intel Z490 TOMAHAWK ATX Motherboard Thumbnail 3 : MSI MAG Intel Z490 TOMAHAWK ATX Motherboard Thumbnail 4 : MSI MAG Intel Z490 TOMAHAWK ATX Motherboard
Scan code: LN107063 Manufacturer code: MAG Z490 TOMAHAWK
RRP: £194.99
£189.98
Order now and receive it by Tuesday, 11th August
From £17.06 / month (APR 14.9%)
Monthly Payment: £17.06
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £189.98
Total inc. interest: £204.66
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 11th Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MAG Z490 Tomahawk 10th Generation Intel ATX Motherboard from MSI

MSI Z490 Tomahawk

Conquer the Battlefield Introducing the all new MAG Z490 Tomahawk Motherboard from MSI. The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

Intel Z490Chipset

LGA 1200CPU Socket

ATXForm Factor

Special Features of the Z490 Tomahawk

Main Features
Core Boost

Core Boost TechnologyCombining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

Digital PWM

Digital
PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

Six Layer PCB

6 layer
PCB
6 layer PCB provides higher performance and long-lasting system stability without any compromise.

Steel PCIE Slots

PCIe
Steel Armor
Protecting VGA cards against bending and EMI for better performance, stability and strength.

Next Generation Connectivity with MSI Tomahawk

Next Gen Connections
20g Lightning transmission

Lightning 20GBuilt-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

2.5g Lan

2.5G Network SolutionFeaturing premium 2.5G LAN with LAN manager delivers better network experience.

DDR4 Boost

DDR4 BoostThe Fully isolated DIMM slots to deliver pure data signals for the best gaming and overclocking performance.

M.2 Slots

Turbo M.2With 2 x M.2 slots . Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

Unbelievable Power Solution

New VRM Power Design

Time to Get Aggressive Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases. Combining 8 + 4-pin power connectors and exclusive Core Boost technology, MAG series motherboards are ready to sustain massive demand.

1 PhaseGT Power

8+4 PinCPU Power Connectors

1 PhaseSA Power

12 PhasesCPU Power

Digital PWM IC

Protect your Sensitive Components During Installation and Beyond

Pre installed IO Shield

Extended Heatsink and Pre-installed IO ShieldThe MSI Z490 Tomahawk features a pre-installed I/O shield to make installing your motherboard simpler and safer and also protects your I/O ports from electrostatic discharge damage and with an all-metal extended heatsink to enlarge the surface area you can also expect more efficient heat dissipation allowing your new 10th Gen Intel CPU to perform as it should.

Experience Core Boost

Z490 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and full digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU. MSI Z490 motherboards are optimized to maximise the performance on the 10th Gen Intel ® Core™ processors. Choose MSI and unleash the full potential of your system through optimized PCB and power delivery design with load line calibration.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

Protecting your PCIe Slots

Z490  PCIe Slot features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR The MSI Z490 Tomahawk supports multiple GPU solutions and also features optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate when utilising an AMD® CrossFire™ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Overclock Your System in One Second!

MSI Z490 Gameboost

MSI Game Boost Need more power from your CPU and memory to get more FPS? MSI Game Boost enables one-second overclocking, giving you the performance boost you need. Simply turn the dial or use the Gaming App and your PC gets another adrenalin shot!

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition MAG Z490 Tomahawk
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) N/A
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2 PCIe
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 6 x SATA III - 6Gb/s
  • 1 x TPM Header
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Realtek RTL8125 (2.5G LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Audio I/O
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x S/PDIF (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note
Additional Information
Scan Code LN107063
Model Number MAG Z490 TOMAHAWK
GTIN 4719072718978
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
