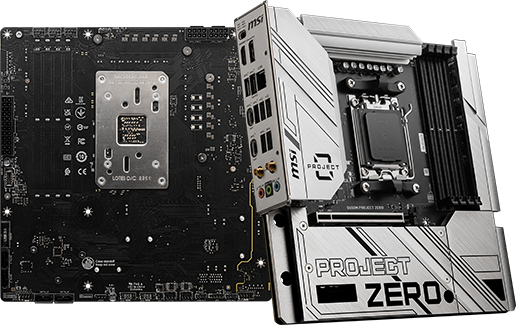

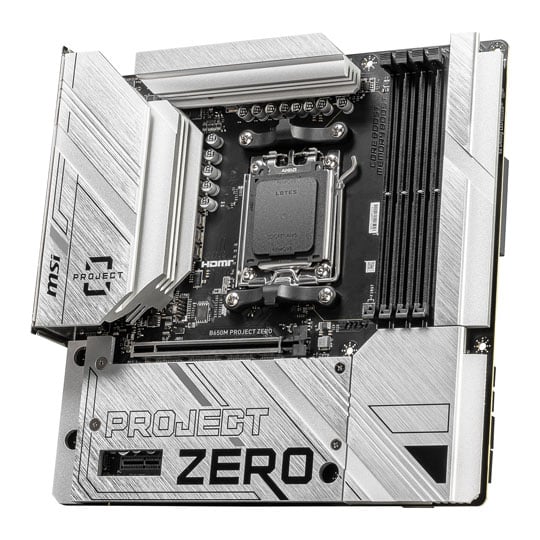

MSI B650M PROJECT ZERO AM5 mATX Motherboard

MSI B650 Motherboard

Absolute Simplicity Meet the MSI B650M PROJECT ZERO mATX motherboard, Boasting a unique design feature, packed into a smaller form factor, the PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management by having all of your connectors located on the back-side of the motherboard, resulting in an overall neater, more aesthetically pleasing system. Crafted to support the latest AMD Ryzen™ 8000 / 7000 Series desktop processors, the B650M PROJECT ZERO is packed with the latest features including support for DDR5 7600+(OC) memory, an enhanced power design, Speedy PCIe 4.0 technology, Gen4 storage, WiFi 6E and a premium thermal solution consisting of an extended heatsink and M.2 Shield Frozr technology, combined they offer optimised passive cooling and powerful performance, allowing you to continue to push your system to all new heights.


Note: Please be sure to check MSI's Compatibility list to ensure your case is compatible Here

AMD B650Chipset

AM5CPU Socket

Ryzen™ 8000/7000 SeriesCompatible CPU

mATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK MOSFET Thermal Pads

M.2 Shield FROZR

M.2 Shield
Frozr

Extended heatsinks

Extended
Heatsink

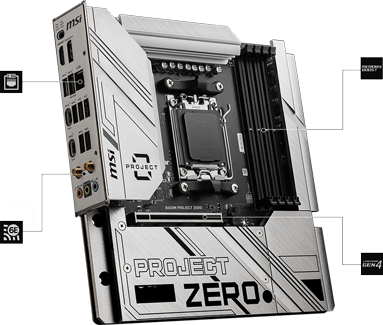

High-Speed Transmission

Connectivity options
10G

2.5G
LAN

Wifi 6e

WIFI
6E

Gen 4 slots

PCIE 4.0
Slots

Memory Boost

Memory
Boost

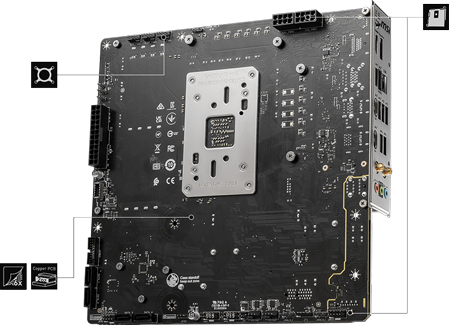

A Stable Cornerstone for Your System

DIY protection
6 Layer PCB

6-Layer
PCB

Back connect Design

back-connect
Design

Pump fan support

Pump Fan
Support

Massive Cooling Potential

1. Extended HeatsinksExtended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. M.2 Shield FrozrKeeps M.2 SSDs safe while preventing throttling, making them run faster.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps with overall heat dissipation.

4. 7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.

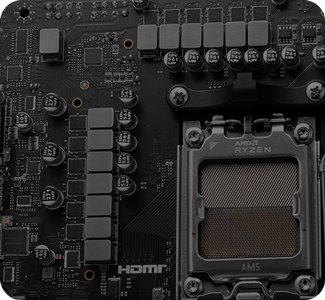

Aggressive VRM Design

Robust power design

10 PhaseCORE POWER SPS/80A

2 PhaseSOC Power

1 PhaseMISC Power

DIRECT 10+2+1 PHASE POWER DESIGNUnleash and sustain maximum performance with an aggressive VRM design built with a digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, B650M PROJECT ZERO is ready to sustain heavy loads.

Back-Connect Design

Back connect design

A Unique AdditionThe B650M PROJECT ZERO features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance.

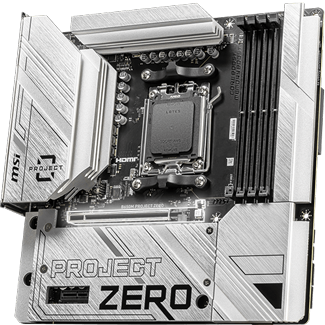

Embrace Superb Performance

PCIE 4 slots

LIGHTNING GEN 4 PCI-ESay hello to double the speeds of the previous generation, PCIe 4.0 brings an x16 interface capable of reaching speeds of up to 64 GB/s.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageMSI PROJECT ZERO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

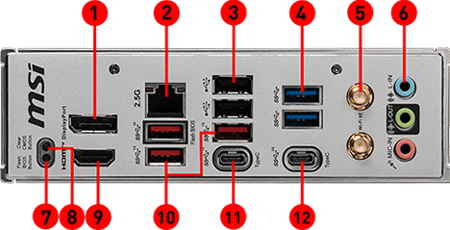

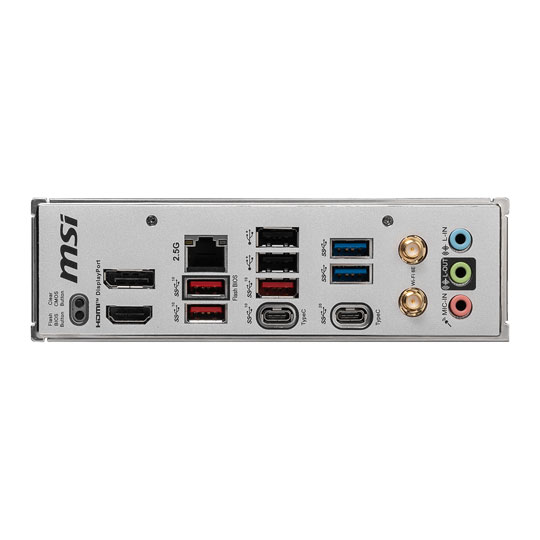

Fully Comprehensive I/O Panel

i/O Panel

Rear: 1: DisplayPort
2: 2.5G LAN
3: USB 2.0
4: USB 5Gbps (Type-A)
5: Wi-Fi / Bluetooth
6: Audio connectors
7: Flash BIOS Button
8: Clear CMOS Button
9: HDMI™
10: USB 10Gbps (Type-A)
11: USB 10Gbps (Type-C)
12: USB 20Gbps (Type-C)

Specifications
Core Specifications
Edition B650M PROJECT ZERO
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7400(OC)
  • DDR5 - 7600(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA3 / M.2
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO Pump Connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 3 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Port
  • 2 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen2 Type-C Port
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.3
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.84 x 243.84 mm
Note
Additional Information
Scan Code LN146565
Model Number B650M PROJECT ZERO
GTIN 4711377126649
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
MSI
