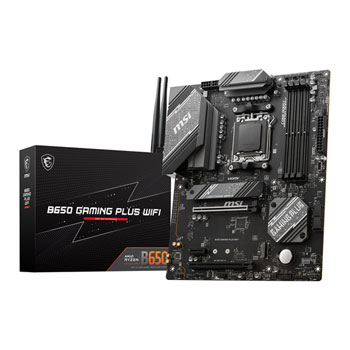

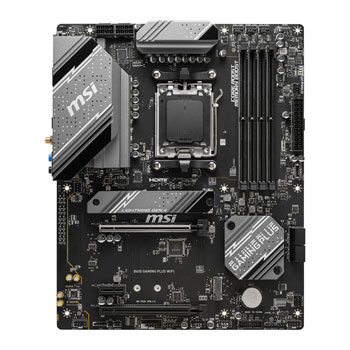

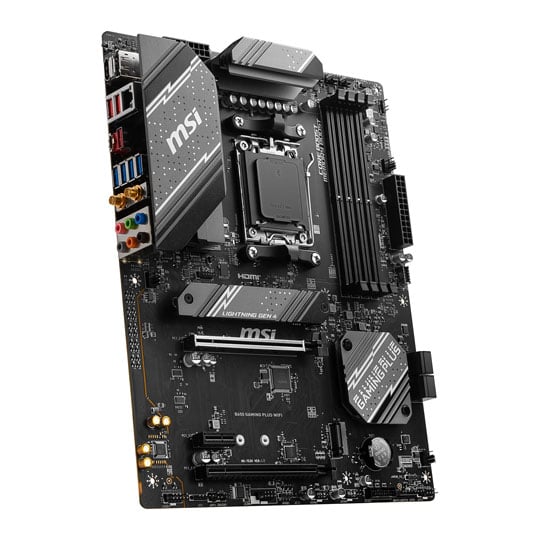

MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
Hot Seller
MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
Scan code: LN136641 Manufacturer code: B650 GAMING PLUS WIFI
£159.98
Add To Basket
Get it Tomorrow, 27 JanIn stock
  • Thumbnail 1 : MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
  • Thumbnail 2 : MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
  • Thumbnail 3 : MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
  • Thumbnail 4 : MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard
Hot Seller

MSI AMD B650 GAMING PLUS WIFI AM5 DDR5 ATX Motherboard

MSI B650 GAMING PLUS WIFI, AMD B650,S AM5,DDR5,SATA3,PCIe 4.0,2x M.2,2.5GbE,USB 3.2 Gen2,AMD EXPO™,ATX
MORE INFO
MORE INFO

Scan code: LN136641 Manufacturer code: B650 GAMING PLUS WIFI
£159.98
Order now and get it tomorrow, Mon 27th Jan
Add To Basket
Get it Tomorrow, 27 JanIn stock

Email me when the availability or price changes

  • By DPD On 27th Jan Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £13.34 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £13.34
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £159.98
    Total inc. interest: £159.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

MSI steam promotion

MSI B650 GAMING PLUS WIFI AM5 ATX Motherboard

MSI B650 Motherboard

DESIGNED FOR GAMERSB650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and a convenient Wi-Fi solution for gamers who want all. Boasting support for DDR5 memory, an enhanced 12+2+1 power design, lightning-fast PCIe 4.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined, these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

AMD B650Chipset

AM5CPU Socket

Ryzen™ 7000 SeriesCompatible CPU

ATXForm Factor

Outstanding Cooling Solution

Superb Cooling
Thermal Pads

7W/mK Thermal Pads

M.2 Shield FROZR

M.2
Shield Frozr

Pump fan support

Pump Fan
Support

Extended heatsinks

Extended
Heatsink

High-Speed Transmission

Connectivity options
10G

2.5G
LAN

Wifi 6e

WIFI
6E

Gen 5 slots

Lighting
Gen 4

Memory Boost

Memory
Boost

DDR5

DDR5
Support

HDMI

Lighting USB
20G

A Stable Cornerstone for Your System

DIY protection
Steel PCIe slots

Steel PCIe
armor

Digital PWM

Digital
PWM

PCB

6-Layer
PCB

2oz copper

2oz
Thick Copper

8-Pin Power

2x 8-Pin
Power

XL Clip

XL
Clip

Massive Cooling Potential

1. Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2. M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.

4. 7W/mK Thermal PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

5. Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

Aggressive Power Design

Robust power design

12+2+1 POWER DESIGNUnleash and sustain the maximum performance with a VRM design built with a total of 12+2+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI B650 GAMING PLUS WIFI is ready to sustain heavy daily work.

Meet The Latest Generation

PCIE 4 slots

LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Maximise Your Storage Capabilities

Storage capabilities

Fast and future ready storageB650 GAMING PLUS WIFI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

High-Bandwidth and Low-Latency Network

2.5G LAN & WIFI 6E

2.5G LAN & WiFi 6EMSI's premium network solution provides incredible data transfer speed for demanding users.

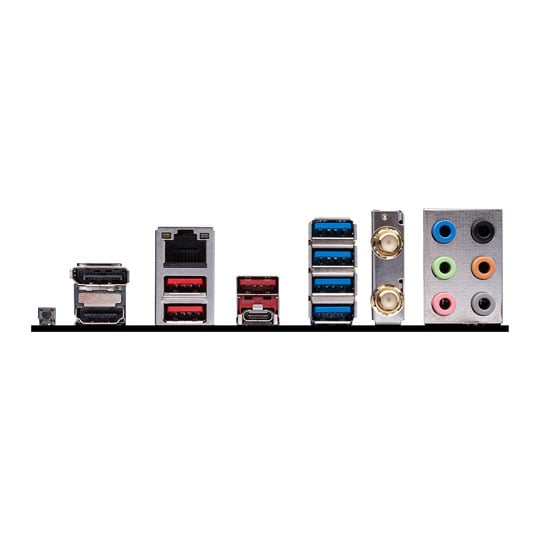

Fully Comprehensive I/O Panel

I/O Panel

Rear: 1: DisplayPort
2: 2.5G LAN
3: USB 3.2 Gen 2 10Gbps (Type-A)
4: USB 3.2 Gen 1 5Gbps (Type-A)
5: Wi-Fi / Bluetooth
6: Audio connectors
7: Flash BIOS Button
8: HDMI™
9: USB 3.2 Gen 2 10Gbps (Type-A)
10: USB 3.2 Gen 2x2 20Gbps (Type-C)

Specifications
Core Specifications
Edition B650 GAMING PLUS WIFI
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5000(OC)
  • DDR5 - 5200(OC)
  • DDR5 - 5400(OC)
  • DDR5 - 5600(OC)
  • DDR5 - 5800(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6600+(OC)
Max. Memory Capacity 192GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 2 x RGB LED connector
  • 1 x Serial (COM) Header
  • 4 x System Fan header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0 Header
  • 3 x USB 3.2 Gen1 Header
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.2
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Flash BIOS Button
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 243.84 x 304.8 mm
Note
Additional Information
Scan Code LN136641
Model Number B650 GAMING PLUS WIFI
GTIN 4711377098052
