MSI AMD B550M PRO-VDH WIFI Micro-ATX Motherboard

MSI B550M PRO-VDH WIFI, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, GbE, ac WiFi/BT 4.2, USB 3.2 Gen1 A+C, Micro-ATX

Thumbnail 1 : MSI AMD B550M PRO-VDH WIFI Micro-ATX Motherboard Thumbnail 2 : MSI AMD B550M PRO-VDH WIFI Micro-ATX Motherboard Thumbnail 3 : MSI AMD B550M PRO-VDH WIFI Micro-ATX Motherboard Thumbnail 4 : MSI AMD B550M PRO-VDH WIFI Micro-ATX Motherboard
Scan code: LN108120 Manufacturer code: B550M PRO-VDH WIFI
£134.99
Order in the next 4 mins and get it tomorrow
From £12.12 / month (APR 14.9%)
Monthly Payment: £23.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £134.99
Total inc. interest: £140.55
Monthly Payment: £12.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £134.99
Total inc. interest: £145.41
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MSI B550M PRO-VDH (Wi-Fi) 3rd Generation AMD Ryzen M-ATX Motherboard

MSI B550M PRO VDH

Unmatched efficiency with PRO Series Introducing the all new B550M PRO-VDH (Wi-Fi) Motherboard from MSI. The MSI B550 motherboard supports the 3rd Gen AMD Ryzen processors with the addition of PCIe 4.0 technology for eye watering speeds, an Intel Wi-Fi module delivering AC speeds up to 433Mbps with lower CPU loading and a 2oz copper PCB to help with additional thermal dissipation. PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

AMD B550Chipset

AM4CPU Socket

M-ATXForm Factor

Business Elegance with the B550M PRO VDH

Main Features
Core Boost

Core Boost TechnologyWith premium layout design, that is ready for unleashing the maximum performance.

Core Boost

Flash BIOS ButtonSimply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

Digital PWM

Wi-FiDelivering AC speeds up to 433Mbps with lower CPU loading and a longer lifespan

Audio Boost

Audio BoostReward your ears with studio grade sound quality for the most immersive gaming experience.

Steel PCIE Slots

PCIe Steel ArmorProtecting VGA cards against bending and EMI for better performance, stability and strength.

M.2 Shield Frozr

M.2 Shield FrozrStrengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

DDR4 Boost

DDR4 BoostThe fully isolated DDR circuit to deliver pure data signals for the best performance and stability.

Experience Core Boost

B550 Gamin Plus core boost

faster and undistorted current deliveryCore Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPUs, but also creating the perfect conditions for CPU overclocking allowing you to always get the most from your 3rd generation AMD Ryzen Processor.

Give yourself a Lightning Fast Experience

4K Recording

LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimised by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.

Unmatched Memory Performance

memory

Advanced performance with DDR4 BOOST MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability. The technical enhancements of DDR4 Boost allow for more stability at higher memory speeds compared to other brands. Enjoy the additional boost in operational performance or when working with large video and photography files. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.

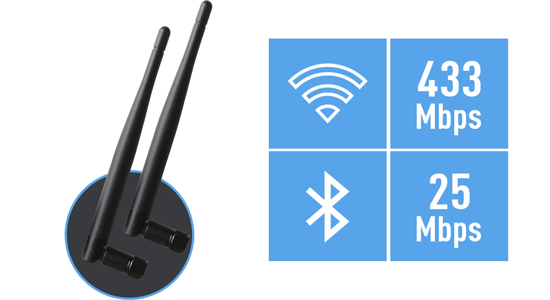

Need a Wireless Connection?

WIFI AC

INTEL® WI-FI AC & BLUETOOTH Use your LAN port for online gaming while using WiFi for other online applications. The Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps.

Protecting your PCIe Slots

B550  PCIe Slot features

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Professional Gaming Audio

audio

Amplify your game with Audio Boost MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes dedicated to giving gamers true Hi-Fi sound offering a clear advantage over your opponents when gaming. Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.

Specifications
Core Specifications
Edition B550M PRO-VDH WIFI
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 1866
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2800
  • DDR4 - 2800(OC)
  • DDR4 - 2933
  • DDR4 - 2933(OC)
  • DDR4 - 3000
  • DDR4 - 3000(OC)
  • DDR4 - 3066
  • DDR4 - 3066(OC)
  • DDR4 - 3200
  • DDR4 - 3200(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4400+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 8-Channel(7.1) HD Audio with Audio Boost
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 3-pin RAINBOW LED connector
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin RGB LED connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (433Mbps)
  • 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA)
  • 1 x DisplayPort
  • 1 x Flash BIOS Button
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
